[shortdesc] 8MP 4K 1/1.8" CMOS, 4.4-14.6mm varifocal P-Iris lens, OptimizedIR 40 m range, IP66 IK10 NEMA 4X outdoor dome, PoE IEEE 802.3af/802.3at, ARTPEC-9 AI analytics [/shortdesc]

[properties]

Model	AXIS P3288-LVE
SKU	02986-001
Product Type	Outdoor 8 MP AI-powered network dome camera
Image Sensor	1/1.8" progressive scan RGB CMOS
Maximum Resolution	3840 × 2160 at up to 30 fps
Lens	Varifocal 4.4 to 14.6 mm, F1.65 to 3.65, IR corrected, remote zoom and focus, P-Iris control
Field of View	Horizontal 103 to 29°; vertical 56 to 17°
Minimum Illumination	Color 0.11 lux at 50 IRE, F1.65; B/W 0.03 lux at 50 IRE, F1.65; 0 lux with IR illumination on
Day/Night	Automatic IR-cut filter with 0 lux performance using IR illumination
IR Illumination	Integrated 850 nm OptimizedIR LEDs with reach up to 40 m (130 ft) depending on scene
Wide Dynamic Range	Forensic WDR up to 120 dB; Lightfinder 2.0 image enhancement
Analytics	AXIS Object Analytics, AXIS Audio Analytics, AXIS Live Privacy Shield, AXIS Video Motion Detection
Housing Ratings	Outdoor ready, IP66 and NEMA 4X rated, IK10 impact resistant dome
Power	Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 via RJ45
Power Consumption	Typical 5.5 W (heater and IR off); maximum 12.9 W
Local Storage	microSD/microSDHC/microSDXC card slot with SD card encryption; support for NAS recording
Operating Conditions	-40 °C to 50 °C (-40 °F to 122 °F); 10 to 100% RH, condensing
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F); 5 to 95% RH, non-condensing
Dimensions (W × H × D)	183 × 156 × 149 mm (7.2 × 6.1 × 5.9 in)
Weight	Approx. 860 g (1.9 lb)

[/properties]

[specifications]

System on Chip / Memory	Axis ARTPEC-9 with deep learning processing unit; 2 GB RAM; 8 GB Flash
Video Compression	H.264 (Baseline, Main, High), H.265 (Main), AV1 and Motion JPEG with Axis Zipstream and low latency mode
Video Streams	Up to 20 unique configurable streams; multi-view streaming with up to 7 individually cropped view areas
Supported Resolutions	16:9 up to 3840 × 2160; 16:10 up to 2560 × 1600; 4:3 up to 2592 × 1944
Frame Rate	Up to 25 or 30 fps (50/60 Hz) in all supported resolutions
Signal-to-Noise Ratio	Greater than 55 dB
Image Settings	Saturation, contrast, brightness, sharpness, white balance, exposure settings, local contrast, tone mapping, defog, barrel distortion correction, rotation and mirroring, overlays and privacy masks
Pan/Tilt/Rotate Adjustment	Pan -190 to 190°; tilt -45 to 80°; rotation -95 to 95°
Network Protocols	IPv4, IPv6, HTTP, HTTP/2, HTTPS, TLS, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP v1/v2c/v3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, DHCP, ARP, MQTT and more
Open Standards	ONVIF Profiles G, M, S and T; VAPIX API; AXIS Camera Application Platform support
Cybersecurity	Axis Edge Vault with secure boot, signed OS, secure keystore, encrypted filesystem, IEEE 802.1X, MACsec, HTTPS/HSTS, TLS 1.2 and 1.3, host-based firewall
Edge Storage	microSD/microSDHC/microSDXC support with AES-XTS-Plain64 256 bit encryption; recording to NAS
I/O and Connectors	One configurable supervised input or digital output (12 V DC, max 25 mA) via 4-pin terminal block; RJ45 10BASE-T/100BASE-TX PoE; separate 4-pin 2.5 mm terminal block for alarm I/O
IR Illumination	Power-efficient 850 nm IR LEDs with OptimizedIR; range up to 40 m depending on scene
Environmental Ratings	IP66 dust and water protection; NEMA 4X; IK10 impact resistance; tested according to IEC 60068 environmental standards
EMC / Safety Compliance	CISPR 32/35 Class A, EN 55032/55035, EN 50121-4, EN 61000-6-1/6-2; safety IEC/EN/UL 62368-1 and IEC/EN 62471 risk group exempt
DORI Distances	Detect 88 to 292 m; observe 35 to 116 m; recognize 18 to 58 m; identify 9 to 29 m with 4.4 to 14.6 mm lens

[/specifications]

[accesories]

Included in the box	AXIS P3288-LVE camera, weathershield, terminal block connector, connector guard, cable gasket, installation guide, owner authentication key (included in the box)
Optional - Mounting accessories	AXIS TP3206-E Recessed Mount; AXIS TP3103-E Pendant Kit
Optional - Storage accessories	AXIS Surveillance Cards
Optional - Installation tools	AXIS T8415 Wireless Installation Tool

[/accesories]

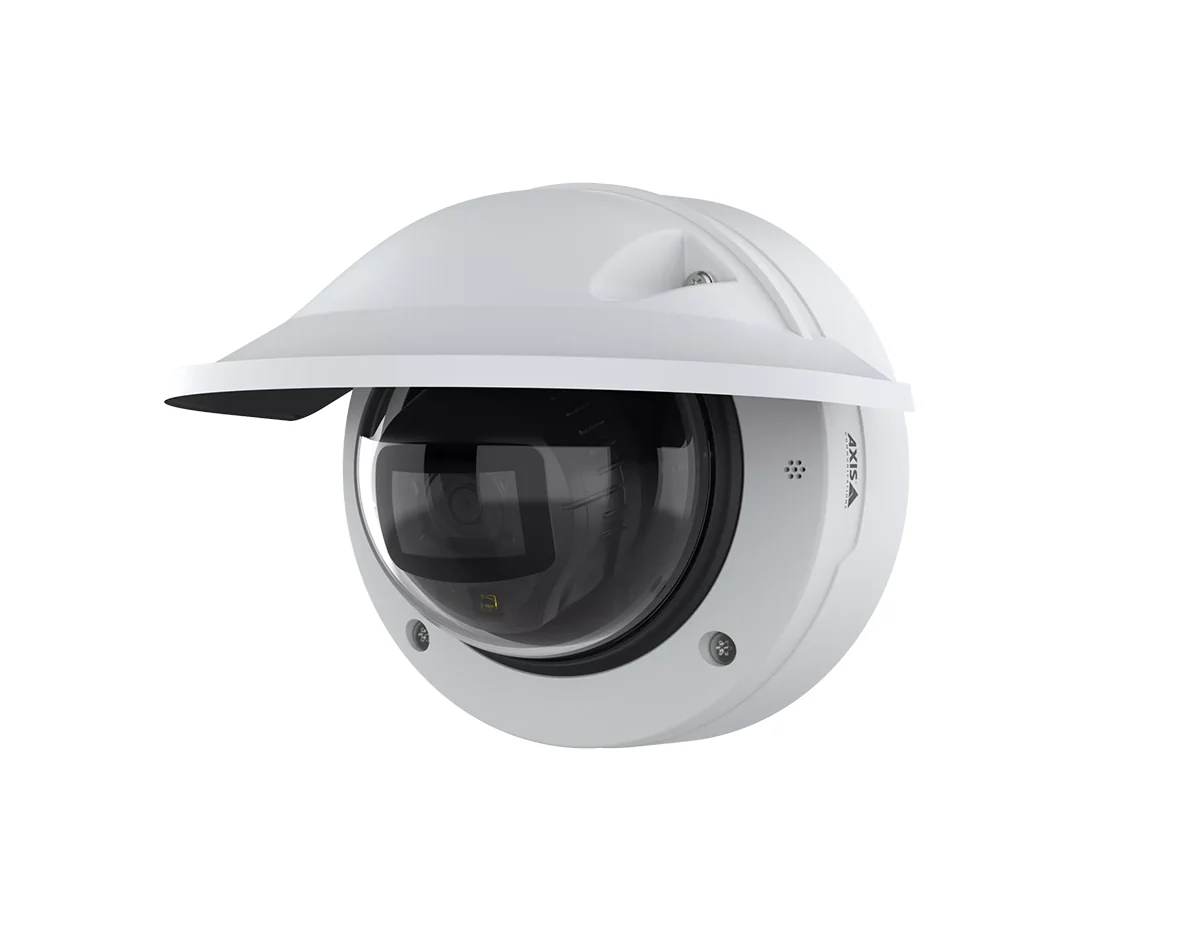

AI-Driven 8 MP 4K Surveillance for Harsh Outdoor Sites

Axis P3288-LVE is an AI-powered 8 MP outdoor dome camera delivering detailed 4K coverage. Built on the ARTPEC-9 SoC, it runs powerful analytics like AXIS Object Analytics and AXIS Audio Analytics on the edge. Advanced imaging features including Lightfinder 2.0, Forensic WDR, and OptimizedIR up to 40 m (130 ft) ensure usable footage even in challenging light conditions and complete darkness.

Key Benefits & Features

• 4K 8 MP Forensic Detail: Capture 3840 x 2160 resolution video at up to 30 fps with a sensitive 1/1.8" CMOS sensor for maximum people and vehicle detail.
• AI Edge Analytics: The ARTPEC-9 Deep Learning Processing Unit powers pre-installed applications including AXIS Object Analytics, AXIS Audio Analytics, and AXIS Scene Metadata to classify humans, vehicles, and critical sounds at the edge.
• Rugged Outdoor Design: IP66, NEMA 4X, and IK10 housing with an included weathershield withstands extreme operating conditions from -40 °C to 50 °C (-40 °F to 122 °F).
• Built-in Cybersecurity: Axis Edge Vault, a hardware-based security platform, provides features like secure boot, signed OS, and a secure keystore to protect the device's integrity and sensitive data from unauthorized access.

Ideal Use Cases

• Perimeter and gate monitoring at industrial plants, logistics hubs, and data centers requiring 4K forensic detail.
• Parking lots, campuses, and public transport areas where people, vehicles, or abnormal sounds must trigger analytics-based alerts.
• Critical infrastructure and government or enterprise sites demanding strong cybersecurity, signed video, and standards-based VMS integration.

Technical Specifications

• Image sensor: 1/1.8" progressive scan RGB CMOS, 8 MP.
• Resolution & frame rate: 3840 x 2160 (4K UHD) up to 25/30 fps.
• Lens & field of view: 4.4-14.6 mm varifocal P-Iris, F1.65–3.65, 103°–29° horizontal FOV.
• Low-light & IR performance: 0.11 lux color, 0.03 lux B/W, OptimizedIR 850 nm LEDs to 40 m (130 ft).
• Analytics engine: ARTPEC-9 SoC with AXIS Object, Audio, Image Health, and Scene Metadata analytics.
• Power: PoE IEEE 802.3af/802.3at, typical 5.5 W, maximum 12.9 W with heater and IR.
• Environment, storage & form factor: IP66, NEMA 4X, IK10 outdoor dome, microSD slot, approx. 183 x 156 x 149 mm, 860 g, operating -40 °C to 50 °C.

Deploy Axis P3288-LVE 8 MP Protection Across Your Perimeter

Ready to harden your outdoor surveillance? Order today and deploy Axis P3288-LVE for AI-driven 4K protection.
