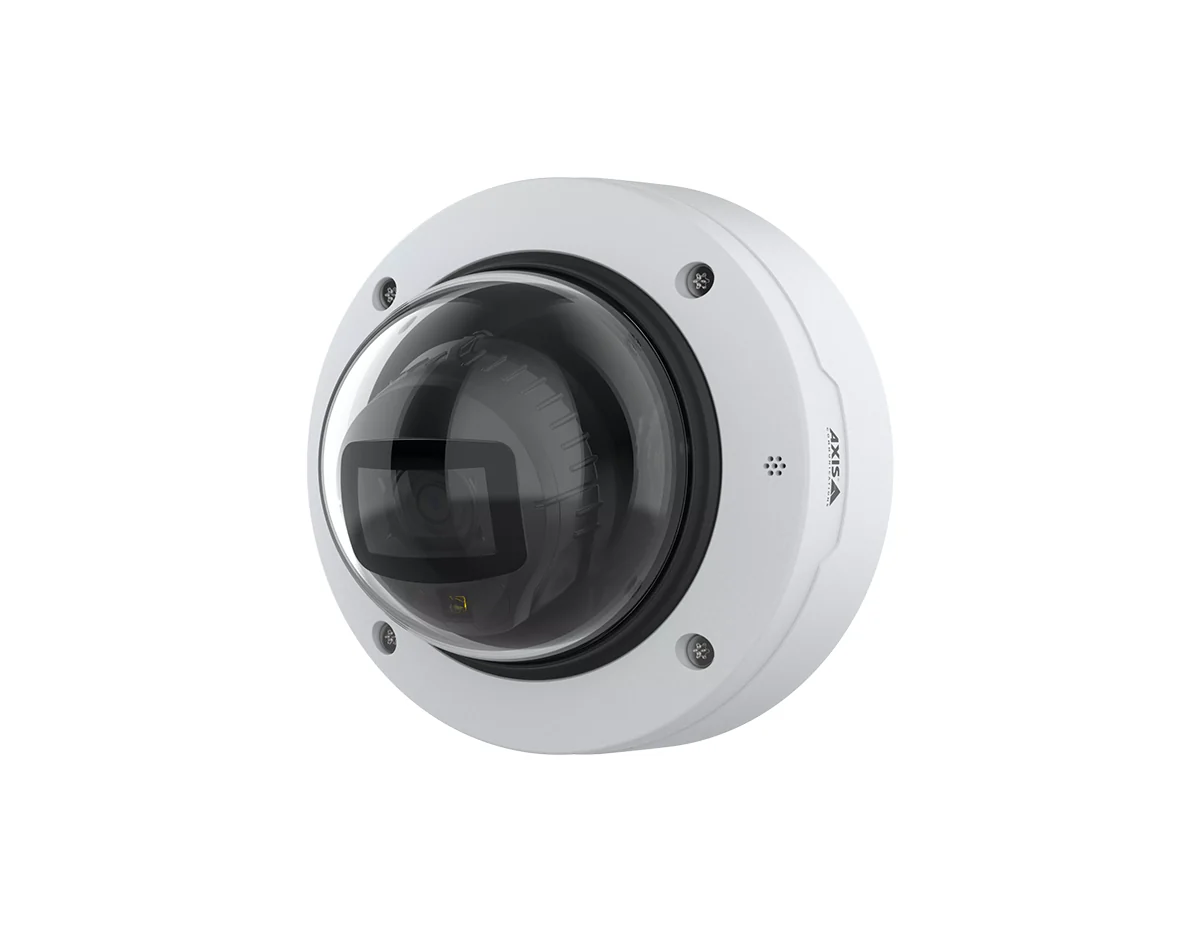

[shortdesc] 8 MP 4K indoor dome, 4.4-14.6 mm varifocal lens, OptimizedIR 40 m range, Lightfinder 2.0 and Forensic WDR, AI object and audio analytics, IK10 and IP54 rated [/shortdesc]

[properties]

Model	AXIS P3288-LV
SKU	02985-001
Product Type	Indoor 8 MP AI-powered dome camera
Image Sensor	1/1.8" progressive scan RGB CMOS
Sensor Resolution	8 MP
Pixel Size	2.0 µm
Lens	Varifocal 4.4–14.6 mm, F1.65–3.65; IR corrected; remote zoom and focus; P-Iris control
Field of View	Horizontal 103°–29°; Vertical 56°–17°
Day / Night	Automatic IR-cut filter
Minimum Illumination	Color: 0.11 lux at 50 IRE, F1.65; B/W: 0.03 lux at 50 IRE, F1.65; 0 lux with IR on
IR Illumination	OptimizedIR 850 nm IR LEDs; range up to 40 m or more
Wide Dynamic Range	Forensic WDR up to 120 dB
Low-Light Technology	Lightfinder 2.0
System on Chip	ARTPEC-9 with deep learning processing unit (DLPU)
Memory	2 GB RAM; 8 GB flash
Video Compression	H.264 (Baseline, Main, High); H.265 (Main); AV1; Motion JPEG
Max Resolution / Frame Rate	3840 × 2160 up to 25/30 fps
Multi-View Streaming	Up to 7 individually cropped out view areas
Housing Rating	IP54 dust and water resistant; IK10 impact and vandal resistant; NEMA 4X-rated
Operating Conditions	0 °C to 50 °C (32 °F to 122 °F); 10–85% RH, non-condensing
Storage Conditions	−40 °C to 65 °C (−40 °F to 149 °F); 5–95% RH, non-condensing
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; max 12.9 W; typical 5.5 W (heater off, IR off)
Mounting	Mounting bracket with junction box holes (double-gang, single-gang, 4" octagon)
Casing	Plastic casing with polycarbonate hard-coated dome; color white NCS S 1002-B
Dimensions (W × H × D)	149 × 107 × 149 mm (5.9 × 4.2 × 5.9 in)
Weight	820 g (1.8 lb)

[/properties]

[specifications]

Shutter Speed	1/66500 s to 2 s
Camera Adjustment	Pan ±190°; Tilt −45° to +80°; Rotation ±95°
Signal-to-Noise Ratio	>55 dB
Supported Resolutions	16:9 up to 3840 × 2160; 16:10 up to 2560 × 1600; 4:3 up to 2592 × 1944; up to 25/30 fps in all resolutions
Video Streams	Up to 20 unique and configurable video streams; Axis Zipstream in AV1, H.264 and H.265; VBR/ABR/MBR; low latency mode
Noise Reduction	Spatial filter (2D noise reduction); temporal filter (3D noise reduction)
Image Settings	Saturation, contrast, brightness, sharpness, white balance, exposure mode and zones, local contrast, tone mapping, defog, barrel distortion correction, rotation, mirroring, dynamic text and image overlay, privacy masks
Digital PTZ	Digital PTZ with preset positions, guard tour, control queue
Network Protocols	IPv4, IPv6 USGv6, HTTP/HTTPS, HTTP/2, TLS, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP, PTP, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT, secure syslog, Link-Local address
System Integration	Open API (VAPIX, metadata, ACAP); one-click cloud connection; support for AXIS Camera Station and third-party VMS
ONVIF Profiles	Profile G, Profile M, Profile S, Profile T
Edge Storage	microSD/microSDHC/microSDXC card with encryption (AES-XTS-Plain64 256 bit); recording to NAS
I/O	1 configurable supervised input/digital output (12 V DC output, max load 25 mA) via 4-pin terminal block
IR Performance / DORI	OptimizedIR; range 40 m or more. DORI (wide–tele): Detect 88–292 m; Observe 35–116 m; Recognize 18–58 m; Identify 9–29 m
Analytics – Included	AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection
Analytics – Supported	AXIS Perimeter Defender, AXIS License Plate Verifier; support for additional ACAP applications
AXIS Object Analytics Functions	Object classes: humans, vehicles (cars, buses, trucks, bikes, other); scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoring (beta), motion in area, motion line crossing; up to 10 scenarios
Audio Analytics	Sound pressure level monitoring; adaptive audio detection; audio classification for scream, shout, glass break, speech
Event Triggers (Examples)	Device status, temperature limits, casing open, network loss, recording status, digital input, manual trigger, schedule, video tampering, day/night mode, average bitrate degradation
Event Actions (Examples)	Toggle I/O, control IR illumination, switch WDR or defog mode, send HTTP/HTTPS/TCP notifications, email, SNMP traps, record to SD card or network share, upload images or clips via FTP/SFTP/HTTP/HTTPS, overlay text, erase configuration
Edge Security	Axis Edge Vault platform; signed OS; secure boot; encrypted file system; secure keystore (secure element); Axis device ID; signed video
Network Security	IEEE 802.1X, IEEE 802.1AE (MACsec), IEEE 802.1AR, HTTPS/HSTS, TLS 1.2/1.3, Network Time Security, host-based firewall, X.509 certificate support
Approvals / Certifications	UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC; EMC per CISPR 32/35, EN 55032/55035; railway IEC 62236-4; environment IEC 60068-2 series; IP54 and IK10
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

[/specifications]

[accesories]

Included	Camera; installation guide; drill template; terminal block connector; connector guard; cable gasket; owner authentication key
Optional – Installation	AXIS T8415 Wireless Installation Tool
Optional – Mounting	AXIS TP3205 Recessed Mount; AXIS T94K01D Pendant Kit
Optional – Storage	AXIS Surveillance Cards

[/accesories]

AI-Powered 8 MP Indoor Surveillance Made Simple

Axis P3288-LV delivers sharp 8 MP 4K video in complex indoor scenes so security teams capture usable evidence day and night. ARTPEC-9 with a deep learning processing unit runs analytics at the edge to detect people, vehicles and key sound events while keeping bandwidth and storage efficient.

Key Benefits & Features

• 8 MP 4K Imaging: 1/1.8" RGB CMOS sensor and 3840 x 2160 resolution provide detailed views for identification in wide indoor areas.
• Strong Low Light Performance: Lightfinder 2.0, Forensic WDR up to 120 dB, and OptimizedIR keep images clear and balanced from bright glass fronts to dim corridors.
• Edge AI and Audio Analytics: AXIS Object Analytics and AXIS Audio Analytics classify humans and vehicles, monitor sound levels and trigger alarms only when relevant.
• Secure, Robust Design: Axis Edge Vault, signed OS and encrypted storage plus IK10 and IP54 ratings help protect both device and data.

Ideal Use Cases

• Monitoring entrances, lobbies and reception areas that need clear identification of staff and visitors.
• Covering retail floors and cash zones with heavy footfall and mixed lighting.
• Securing corridors, stairwells and elevator halls in office, healthcare and education buildings.

Technical Specifications

• Image sensor: 1/1.8" progressive scan RGB CMOS, 2.0 µm pixel size.
• Video resolution & frame rate: Up to 3840 x 2160 at 25/30 fps with Axis Zipstream.
• Lens & field of view: 4.4-14.6 mm varifocal, F1.65-3.65, 103°–29° horizontal, 56°–17° vertical.
• Minimum illumination & IR: 0.11 lux color, 0.03 lux B/W, 0 lux with OptimizedIR up to 40 m or more.
• Video compression: H.264, H.265, AV1 and Motion JPEG with multiple configurable streams.
• Analytics platform: ARTPEC-9 SoC with DLPU, preinstalled AXIS Object, Audio and Scene analytics.
• Power & consumption: PoE IEEE 802.3af/802.3at Type 1 Class 3, typical 5.5 W (heater off, IR off), max 12.9 W.
• Environmental & mechanics: Indoor IP54 and IK10 dome, 0–50 °C, approx. 149 x 107 mm, 820 g.

Deploy Axis P3288-LV Now for Smarter Indoor Protection

Strengthen your video surveillance with this AI-powered 8 MP dome that delivers dependable evidence and real-time alerts for your key indoor spaces. Order today.
