[shortdesc] 5MP indoor dome, 3–8.5mm varifocal lens, IR night vision 40 m (131 ft), PoE/PoE+ power, IK10-rated housing, edge analytics [/shortdesc]

[properties]

Brand	Axis Communications
Model	AXIS P3287-LV
Product Type	5MP Indoor Network Dome Camera
Form Factor	Fixed dome, indoor
Image Sensor	1/2.8" progressive scan RGB CMOS
Effective Resolution	5 megapixel; up to 2560 × 1440 video
Lens Type	3 to 8.5 mm varifocal, P-Iris, auto iris
Maximum Aperture	f/1.38 to f/2.58
Day/Night Function	Day & night with IR-cut filter
Minimum Illumination	0.1 lux color; 0.03 lux B/W (F1.38, 50 IRE); 0 lux with IR
Infrared Illumination	850 nm IR LEDs; range up to 40 m (131 ft)
Field of View (H × V)	Horizontal 104° to 34°; vertical 76° to 26°
Pan / Tilt / Rotate	Pan −190° to 190°; tilt −50° to 80°; rotate −95° to 95°
Network Interface	10/100 Ethernet (RJ45 LAN/power)
Power & PoE	PoE IEEE 802.3af / 802.3at (PoE+ Class 3)
Power Consumption	Approx. 4.7 W (IR off); up to 12.6 W (heater and IR on)
Local Storage	microSD / microSDHC / microSDXC card slot
System Memory	2 GB RAM; 8 GB flash
Operating Conditions	0 to 50 °C (32 to 122 °F); 10–85% humidity
Storage Conditions	−40 to 65 °C (−40 to 149 °F); 5–95% humidity
Impact Protection	Vandal-resistant, IK10
Environmental Protection	Dust- and water-resistant (IP66, vandal/ingress proof)
Housing Material	Plastic and polycarbonate
Dimensions (W × H × D)	149 × 107 × 149 mm (5.9 × 4.2 × 5.9 in)
Weight	820 g (1.8 lb)

[/properties]

[specifications]

DORI (Detect / Observe / Recognize / Identify)	Detect 60.0–170.1 m; observe 24.1–67.1 m; recognize 11.9–34.1 m; identify 6.1–17.1 m (with 3–8.5 mm lens)
Shutter Speed / SNR	1/30500 to 2 s; signal-to-noise ratio approx. 55 dB
Supported Video Resolutions	2592 × 1944; 2560 × 1440; 1920 × 1200
Max Frame Rate	Up to 30 fps at 2560 × 1440
Video Compression	H.264, H.265, MJPEG; Axis Zipstream for optimized bitrate
Streaming & Profiles	Multiple configurable streams; ONVIF Profiles S, G, M and T supported
Focus & Zoom	Motorized varifocal lens with remote focus and remote zoom; up to 2.8× optical zoom; minimum focus distance approx. 1.0 m (3.3 ft)
Image Enhancements	Forensic WDR, Lightfinder 2.0, defogging, digital PTZ, image rotation, corridor mode, brightness/contrast/sharpness control
Minimum Illumination (Detail)	0.1 lux color; 0.03 lux B/W (F1.38, 50 IRE); 0 lux with IR illumination
Network Protocols	Supports IPv4/IPv6, HTTP/HTTPS, FTP, SMTP, DHCP, DNS, NTP, SNMP, SSH, TLS and others for IP video and management
Security Features	HTTPS encryption, IEEE 802.1X, digest authentication, Axis Edge Vault, secure boot, signed firmware and video, user access log
Storage Options	Onboard microSD slot plus external NAS or cloud storage
Analytics & Applications	Axis Object Analytics, video motion detection, human and vehicle detection, people counting, scene change and sound classification, virtual-line crossing
Installation Aids	Level grid, pixel counter, remote zoom/focus, straighten image, up to seven individually cropped view areas
Alarm I/O & Events	1 alarm input / 1 alarm output; supports event-triggered recording, notifications and alarms
Audio	No built-in microphone; simplex audio supported
Supported Languages	Interface languages include English, German, French, Spanish, Italian, Portuguese, Russian, Chinese (simplified/traditional), Japanese, Korean, Turkish and others
Certifications	Conforms to international safety and EMC standards including CE, FCC, UL, RoHS and TAA requirements

[/specifications]

[accesories]

Included

AXIS P3287-LV camera; drill template; terminal block connector(s); connector guard; cable gasket(s); owner authentication key

[/accesories]

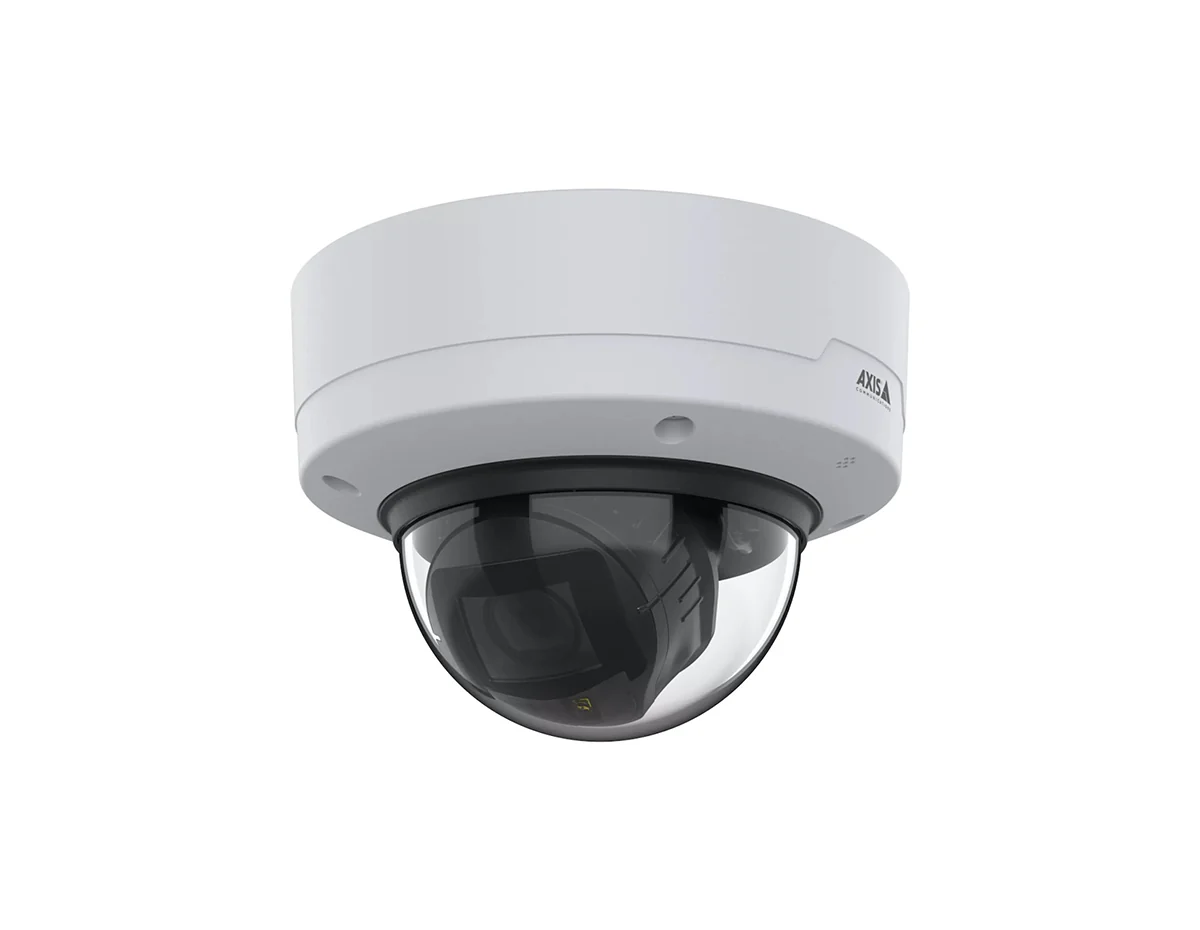

High-Resolution Indoor Dome with Smart Edge Analytics

The Axis P3287-LV 5MP Indoor Network Dome Camera delivers detailed QHD video for demanding indoor surveillance, combining 5MP resolution with powerful IR night vision up to 40 m (131 ft). With its varifocal lens, vandal-resistant IK10 housing, and PoE/PoE+ support, this TAA-compliant dome is ideal for critical sites that require reliable, always-on monitoring.

Key Benefits & Features

• 5MP QHD imaging: Capture sharp 2560 × 1440 video at up to 30 fps for clear identification in busy indoor areas.
• Flexible 3–8.5mm varifocal lens: Adjust the horizontal field of view from wide 104° coverage to a tight 34° view for focused monitoring.
• IR night vision to 40 m (131 ft): Built-in IR illumination and true day/night functionality maintain usable images even in complete darkness.
• Advanced Axis analytics: Onboard analytics such as human and vehicle detection, line-crossing, and motion detection enhance situational awareness and event-based recording.
• Durable, secure design: IK10 impact-rated, dust- and water-resistant (IP66) housing with secure boot, encrypted storage, and TAA compliance for regulated environments.

Ideal Use Cases

• Corporate offices, reception areas, and corridors requiring high-detail indoor monitoring.
• Banks, retail stores, and shopping centers needing reliable coverage of entrances, cash zones, and aisles.
• Healthcare, education, and public buildings with compliance-focused security standards.
• Transportation hubs, terminals, and exposed lobbies that demand vandal-resistant hardware.
• Government and critical infrastructure sites requiring TAA-compliant network surveillance cameras.

Technical Specifications

• Image sensor: 1/2.8" progressive scan RGB CMOS, 5MP effective resolution.
• Maximum resolution / frame rate: Up to 2560 × 1440 at 30 fps.
• Lens: 3–8.5mm varifocal, F1.38–2.58, horizontal FOV 104°–34°.
• Day/night performance: IR-cut filter, minimum illumination 0.1 lux color, 0 lux with IR.
• IR illumination: Optimized IR LEDs, range up to 40 m (131 ft).
• Video compression: H.264, H.265, and MJPEG with Axis Zipstream technology.
• Power: PoE 802.3af / PoE+ 802.3at, typical consumption 4.7–12.6 W depending on IR and heater usage.
• Onboard storage: microSD/microSDHC/microSDXC slot, 2 GB RAM, 8 GB flash.
• Environmental & protection: IK10 impact-resistant, dust- and water-resistant (IP66) housing for demanding indoor locations.
• Operating conditions: 0 to 50 °C (32 to 122 °F), 10–85% relative humidity (non-condensing).
• Compliance: TAA-compliant network surveillance camera.

Secure Your Critical Indoor Spaces With Axis P3287-LV

Strengthen your video security posture with high-detail 5MP imaging, smart analytics, and a robust dome built for professional installations. Order today and deploy trusted Axis surveillance where it matters most.
