[shortdesc] 2 MP resolution, Lightfinder 2.0 imaging, Forensic WDR, OptimizedIR ≥ 40 m reach, ARTPEC-9 chip, Axis Edge Vault security [/shortdesc]

[properties]

Model	AXIS P3285-LV
Product Type	Indoor 2 MP AI-powered Dome Camera
Image Sensor	1/2.8'' progressive scan RGB CMOS
Lens	Varifocal 3.4–9.8 mm, F1.4–2.7; IR corrected; Remote zoom & focus; P-Iris
Field of View	Horizontal: 100°–32°; Vertical: 52°–18°
Minimum Illumination	Color: 0.08 lux at 50 IRE, F1.4; B/W: 0.02 lux at 50 IRE, F1.4; 0 lux with IR
Day/Night	Automatic IR-cut filter
Shutter Speed	1/37000 s to 2 s
Camera Adjustment	Pan ±190°; Tilt -45° to +80°; Rotation ±95°
SoC	ARTPEC-9
Memory	2 GB RAM, 8 GB Flash
WDR	Forensic WDR up to 120 dB
IR Illumination	OptimizedIR, 850 nm, ≥ 40 m
Power	PoE IEEE 802.3af/802.3at Type 1 Class 3 (Max 10 W)
Operating Conditions	0°C to 50°C; 10–85% RH (non-condensing)
Storage Conditions	-40°C to 65°C; 5–95% RH (non-condensing)
IP Rating	IP54
IK Rating	IK10
Dimensions	See datasheet drawing
Weight	810 g (1.8 lb)

[/properties]

[specifications]

Video Compression	H.264, H.265, AV1, Motion JPEG
Resolutions	1920x1080 (16:9); 1440x1080 (4:3); 1280x800 (16:10)
Frame Rate	Up to 50/60 fps in all resolutions
Video Streaming	Up to 20 streams; Zipstream; VBR/ABR/MBR; Low latency mode
SNR	>55 dB
Noise Reduction	2D and 3D noise reduction
Image Settings	Saturation, contrast, WDR, exposure zones, rotation, privacy masks
Analytics (Included)	AXIS Object Analytics; Image Health Analytics; Audio Analytics; Scene Metadata; Live Privacy Shield; VMD
Object Analytics Classes	Humans, vehicles (cars, trucks, buses, bikes)
Network Protocols	IPv4/IPv6, HTTP/HTTPS, FTP/SFTP, RTSP, SNMP, MQTT, NTP/NTS, SSH, LLDP, CDP
Video Management	AXIS Camera Station; ONVIF Profiles G, M, S, T
Event Triggers	Motion, tampering, audio detection, I/O, temperature, storage issues
Event Actions	Recordings, notifications, overlay text, I/O control, SNMP traps
Cybersecurity	Axis Edge Vault, Secure Boot, Signed Video, TLS 1.2/1.3, MACsec
I/O	1 configurable input/output (12 V DC output, max 25 mA)
Connectors	RJ45 10/100 PoE; 4-pin terminal block
Storage	microSD/microSDHC/microSDXC; SD encryption; NAS support
Approvals	UL/cUL, CE, FCC, IK10, IP54, EN 62368-1
DORI Distances	Detect 48–135 m; Observe 19–54 m; Recognize 9.6–27 m; Identify 4.8–14 m

[/specifications]

[accesories]

Included in the Box	Camera; Installation guide; Drill template; Terminal block connector; Connector guard; Cable gasket; Owner authentication key
Optional – Installation	AXIS T8415 Wireless Installation Tool
Optional – Mounting	AXIS TP3205 Recessed Mount; AXIS T94K01D Pendant Kit
Optional – Storage	AXIS Surveillance Cards

[/accesories]

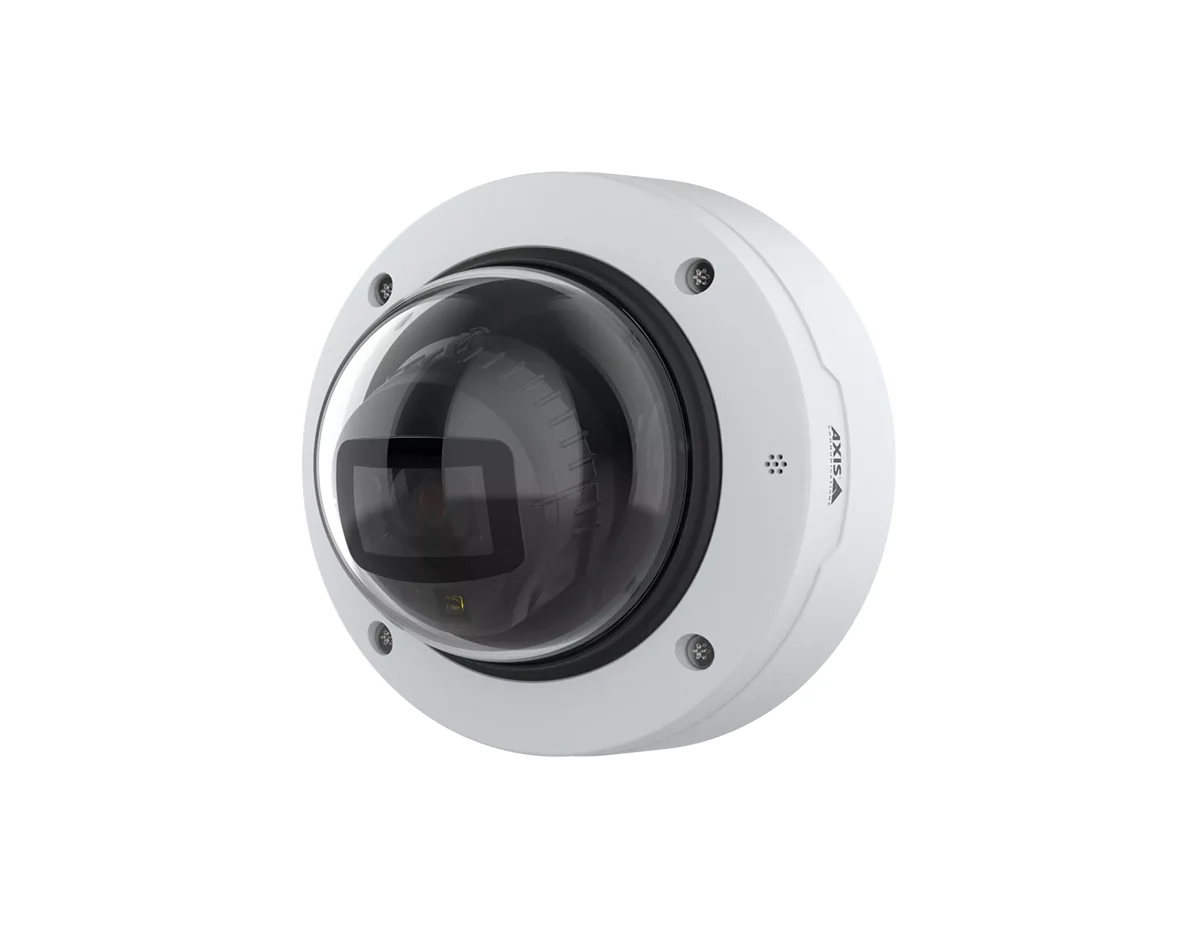

Intelligent Indoor Surveillance with AI Precision

The AXIS P3285-LV Dome Camera delivers exceptional 2 MP clarity and advanced on-device analytics for precise real-time detection and incident response. Built on the powerful ARTPEC-9 system-on-chip, it provides superior imaging in challenging light and supports AI-powered object and audio analytics for smarter, faster decision-making. Featuring the Axis Edge Vault cybersecurity platform, it ensures industry-leading protection for device identity and data integrity.

Key Benefits & Features

• AI-powered analytics: Detect, classify, track, and count humans and vehicles using deep learning-based AXIS Object Analytics.
• Superior low-light performance: Lightfinder 2.0 and Forensic WDR (up to 120 dB) enable high-detail imaging in complex lighting conditions.
• Advanced audio analytics: Built-in capabilities identify sound events such as screams, shouts, glass break, and speech for proactive security.
• OptimizedIR illumination: 850 nm integrated IR provides clear monochrome imaging at distances of 40 m or more.
• Hardened cybersecurity: Axis Edge Vault with secure boot, signed OS, encrypted storage, and FIPS 140-3 Level 3 certified hardware modules.

Ideal Use Cases

• Indoor retail environments requiring behavioral tracking and advanced analytics.
• Corporate offices and sensitive areas needing enhanced cybersecurity and privacy controls (AXIS Live Privacy Shield).
• Healthcare and education facilities monitoring with audio-event detection.
• Critical infrastructure sites needing reliable AI classification and tamper-resistant hardware (IK10 rated).
• Smart building deployments requiring real-time metadata and multi-stream output (up to 20 unique streams).

Technical Specifications

• Image Sensor: 1/2.8" progressive scan RGB CMOS.
• Resolution: Up to 1920 x 1080 at 50/60 fps.
• Lens: 3.4–9.8 mm varifocal, remote zoom/focus, P-Iris.
• Minimum Illumination: 0.08 lux color, 0.02 lux B/W, 0 lux with IR.
• IR Range: 40 m or more via OptimizedIR.
• Video Compression: H.264, H.265, AV1, Motion JPEG with Zipstream.
• Analytics: Object Analytics, Audio Analytics, Image Health Analytics
• Cybersecurity: Axis Edge Vault, Secure Boot, Secure Keystore.
• Ingress Rating: IP54, IK10 impact protection.
• Power: PoE IEEE 802.3af/at, max 10 W.

Upgrade to Next-Level Indoor Surveillance

Enhance your security infrastructure with advanced analytics, superior imaging, and hardened protection, order the AXIS P3285-LV Dome Camera now for unmatched indoor surveillance precision.
