[shortdesc]4K UHD PTZ camera with 31x optical zoom, Lightfinder, Forensic WDR, OptimizedIR up to 300 m, and next-generation on-edge AI analytics in a rugged IP66/IP67/IK10/NEMA 4X design. No midspan included.[/shortdesc]

[properties]

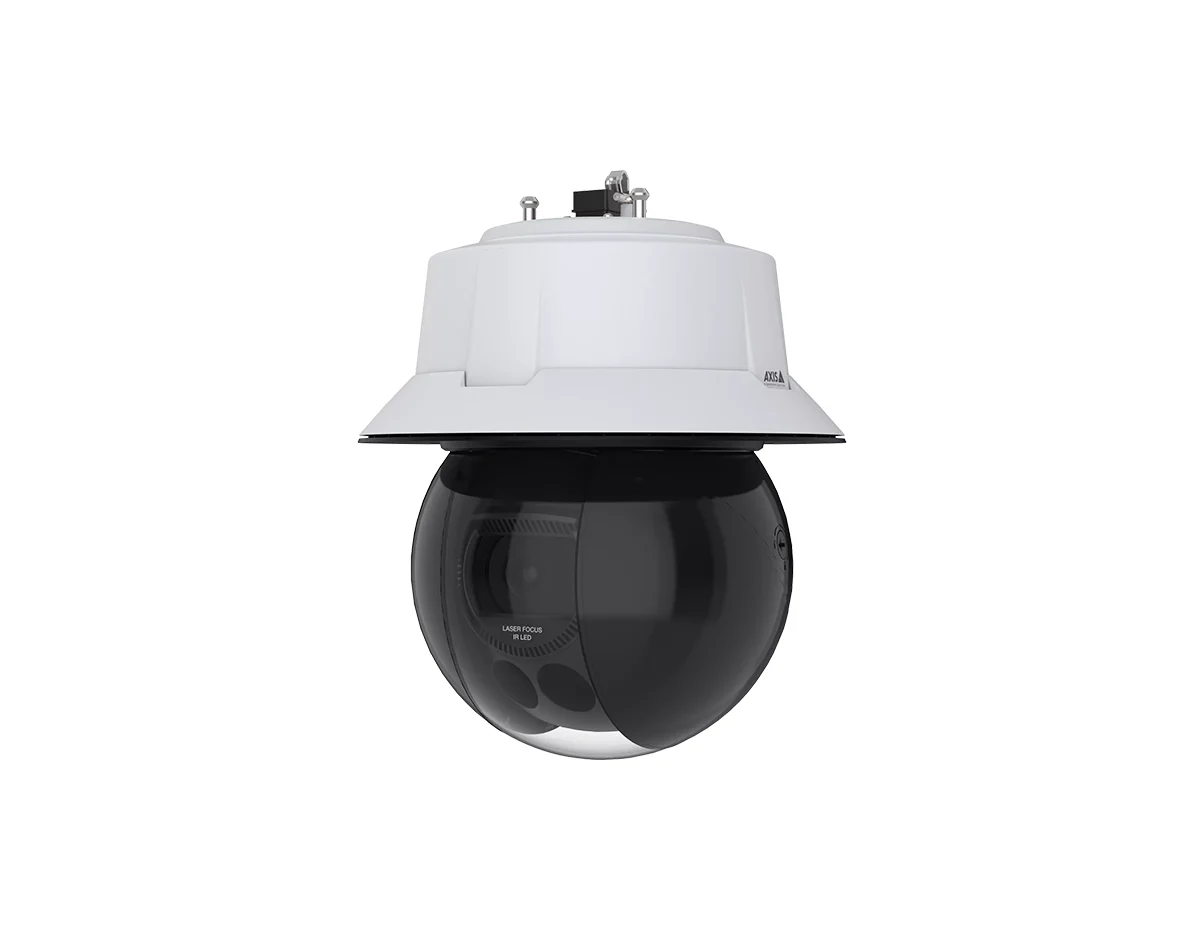

Model	AXIS Q6358-LE No Midspan PTZ Camera (02977-301)
Product Type	4K UHD PTZ Network Camera
Image Sensor	1/2" progressive scan CMOS
Optical Zoom	31x optical zoom, 12x digital; total 372x
Minimum Illumination	Color: 0.1 lux (30 IRE), 0.2 lux (50 IRE), F1.36; B/W: 0.005 lux (30 IRE), 0.009 lux (50 IRE); 0 lux with IR
IR Illumination	OptimizedIR with 850 nm LEDs; up to 300 m (984 ft) or more depending on scene
Video Resolution	3840×2160 (4K UHD)
Frame Rate	Up to 50/60 fps (50/60 Hz) in all resolutions
Power	IEEE 802.3bt Type 3 Class 6; full power typical 13.7 W (no IR), max 51 W
Operating Conditions	Full power: -50 °C to 55 °C (-58 °F to 131 °F); Low power: -10 °C to 55 °C (14 °F to 131 °F); Arctic startup at -40 °C (-40 °F); NEMA TS2 max temp 74 °C (165 °F)
Humidity	10–100% RH (condensing)
Environmental Ratings	IP66, IP67, IK10, NEMA 4X, NEMA TS2 (2.2.7–2.2.9), IEC 60068-2-1/2/6/14/27/78, ISO 21207 Method B, ISO 12944-6 C5
Dimensions	Height: 261 mm (10.3 in); Ø 192 mm (7.6 in) without shield; Ø 239 mm (9.4 in) with shield; EPA: 0.045 m²
Weight	4.4 kg (9.7 lb)

[/properties]

[specifications]

Lens	Focal length 6.91–214.64 mm; HFOV 58.5°–2.3°; VFOV 34.9°–1.4°; P-iris; autofocus; laser focus
Pan/Tilt/Zoom	Pan: 360° endless, 0.05°–550°/s; Tilt: +20° to −90°, 0.05°–500°/s; 31x optical; 12x digital; 300 presets; 10 tours; guard tours; quick-zoom; nadir flip; speed dry
Shutter Speed	1/111000 s to 1/2 s
Image Enhancements	Forensic WDR up to 120 dB; Lightfinder; defogging; EIS; rotation; exposure control/zones; white balance; compression; sharpness; up to 100 polygon privacy masks including mosaic and chameleon
Video Compression	AV1, H.264 Baseline/Main/High, H.265 Main, Motion JPEG; Axis Zipstream
Video Streaming	Individually configurable streams; VBR/ABR/MBR; low-latency mode; video streaming indicator
Audio	Audio input and output through portcast technology
System-on-Chip	ARTPEC-9 with deep learning processing unit; 4096 MB RAM; 8192 MB Flash
Analytics	AXIS Object Analytics (humans/vehicles); line crossing, object in area, time in area, crossline counting, tailgating, PPE monitoring BETA, motion area/line; up to 10 scenarios
Additional Analytics	AXIS Scene Metadata; AXIS Video Motion Detection; AXIS OSDI Zone; Orientation Aid PTZ; advanced gatekeeper; autotracking 2
Network Protocols	IPv4, IPv6 USGv6, HTTP/2, HTTPS, TLS, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP, DNS/DHCP, NTP/NTS, RTSP/RTCP/RTP/SRTP/RTSPS, TCP/UDP, IGMP, ARP, SSH, LLDP, CDP, MQTT, QoS, secure syslog, ZeroConf
System Integration	Open API, VAPIX, ACAP; ONVIF Profiles G, M, S, T; One-Click Cloud Connection
Edge Storage	SD/SDHC/SDXC card support with AES-XTS-Plain64 256-bit encryption; NAS support
Cybersecurity	Axis Edge Vault; secure element CC EAL6+; FIPS 140-3 L3; signed OS; secure boot; encrypted filesystem; brute-force delay; OAuth 2.0; MACsec; IEEE 802.1X; firewall
Approvals	EMC: EN 55032/55035/61000-6-1/6-2, FCC Part 15 Class A; Safety: IEC/EN/UL 62368-1; Environmental: IP66/IP67, IK10, NEMA 4X, ISO 12944-6 C5, IEC 60068-2-1/2/6/14/27/78
DORI (EN 62676-4)	Detect: 138.3 m / 3674.4 m; Observe: 54.9 m / 1457.6 m; Recognize: 27.6 m / 734.2 m; Identify: 13.8 m / 366.7 m
Video Management	AXIS Companion, AXIS Camera Station, third-party VMS via ADP

[/specifications]

[accesories]

Included	Installation guide; Windows decoder 1-user license; IP66-rated network connector; repaint template; paint paper
Optional Accessories	AXIS TQ6808-E Hard-Coated Clear Dome; AXIS TQ6815-E Hard-Coated Smoked Dome; AXIS TU8003 90 W Midspan; AXIS T91/T94 Mounting Accessories; AXIS Surveillance Cards

[/accesories]

High-Performance 4K PTZ for Extreme Low-Light and Long-Range Surveillance

The AXIS Q6358-LE NM delivers superior 4K performance with a large 1/2” sensor, powerful 31x optical zoom, and laser-assisted focusing for precise long-range imaging. OptimizedIR provides visibility beyond 300 meters, while Forensic WDR and Lightfinder ensure clarity in mixed or near-dark conditions.

Equipped with the ARTPEC-9 SoC and deep-learning processing unit, it runs advanced analytics at the edge, including human/vehicle classification and metadata-rich scene analysis. Its IP66/IP67/IK10/NEMA 4X housing, NEMA TS2 compliance, and Arctic startup guarantee reliability in the harshest outdoor environments.

Key Benefits

• 4K UHD imaging with 31x optical zoom for long-range identification
• Exceptional low-light performance with Lightfinder and large 1/2" sensor
• OptimizedIR enabling illumination beyond 300 m
• Advanced edge AI analytics powered by ARTPEC-9
• Extreme durability: IP66/IP67, IK10, NEMA 4X, NEMA TS2
• Zipstream with AV1/H.264/H.265 reduces bandwidth and storage
• Strong cybersecurity with Edge Vault and secure element

Ideal Use Cases

• Perimeter protection of industrial and critical-infrastructure sites
• Highways, intersections, and long-distance traffic monitoring
• Airports, seaports, campuses, and large outdoor facilities
• Urban surveillance requiring wide coverage with precision zoom
• Harsh-climate outdoor deployments

Technical Specifications Summary

• Image sensor: 1/2” progressive scan CMOS
• Lens: 6.91–214.64 mm; HFOV 58.5°–2.3°
• Video: 4K UHD 50/60 fps; AV1/H.264/H.265; Forensic WDR
• IR: OptimizedIR up to 300 m+
• PTZ: 360° endless pan; +20° to −90° tilt; 31x zoom
• Analytics: AXIS Object Analytics; Scene Metadata; autotracking
• Durability: IP66/IP67/IK10; NEMA 4X; NEMA TS2
• Power: IEEE 802.3bt Type 3 Class 6

Upgrade Your Operations

Enhance long-range, mission-critical surveillance with the AXIS Q6358-LE NM—engineered for extreme environments and built with next-generation on-edge intelligence.
