[shortdesc]A high-performance 2 MP outdoor PTZ camera featuring a 1/2" sensor, 31x optical zoom, Lightfinder, Forensic WDR, and OptimizedIR reaching 300 m, powered by ARTPEC-9 with advanced AI analytics and hardened IP66/IP67/IK10/NEMA 4X durability. This NM variant ships without a midspan.[/shortdesc]

[properties]

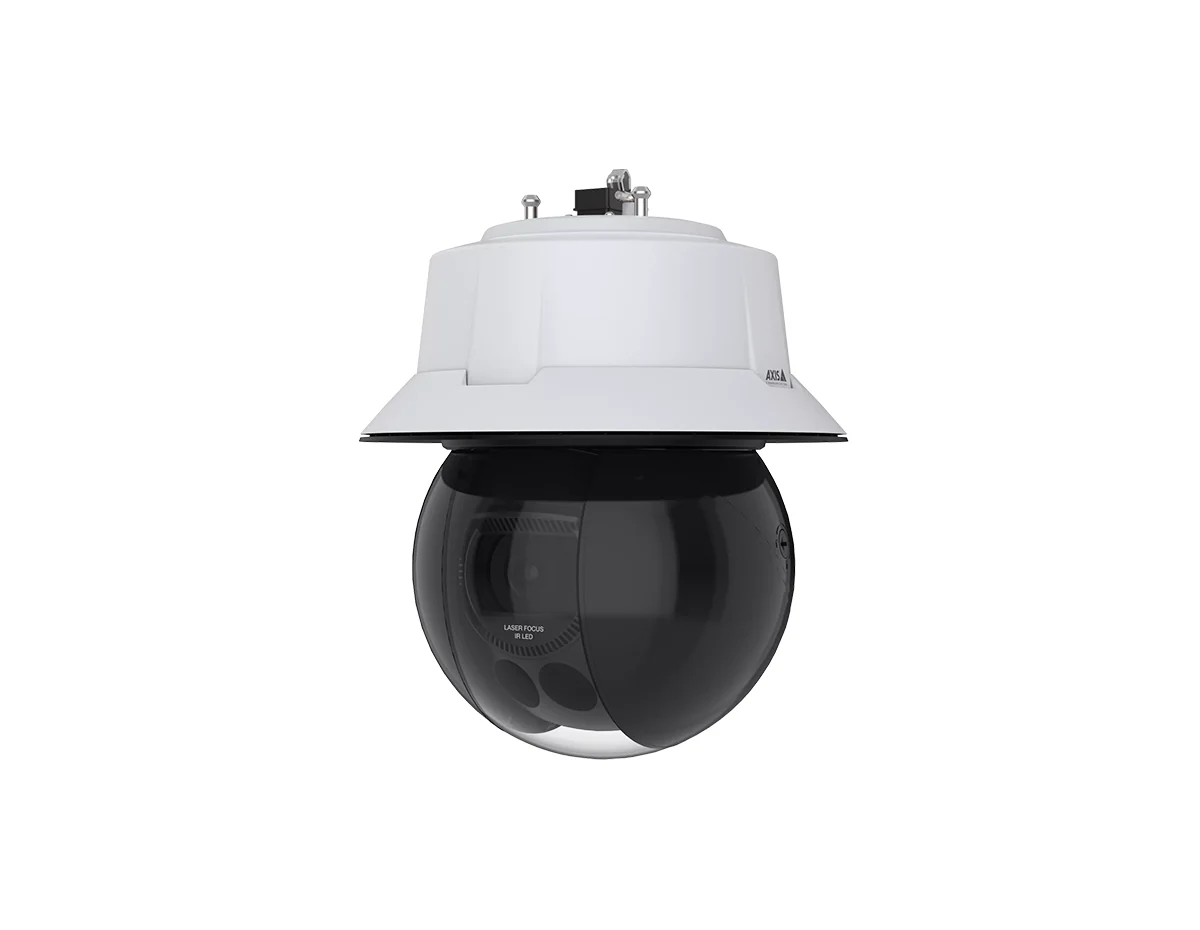

Model	AXIS Q6355-LE PTZ Camera (02976-301)
Product Type	PTZ Camera
Image Sensor	1/2” progressive scan CMOS
Optical Zoom	31x optical zoom
Minimum Illumination	Color: 0.06 lux (30 IRE, F1.36); B/W: 0.001 lux (30 IRE, F1.36); 0 lux with IR
Shutter Speed	1/111000 s to 1/2 s
Video Resolution	1920x1080 (HDTV 1080p) to 320x180
Frame Rate	Up to 50/60 fps (50/60 Hz) in all resolutions
IR Range	OptimizedIR, 300 m m (984 ft) or more depending on scene
Operating Conditions	Full power: −50 °C to 55 °C (−58 °F to 131 °F); Low power: −10 °C to 55 °C (14 °F to 131 °F); Arctic start-up down to −40 °C (−40 °F); NEMA TS2 max temperature: 74 °C (165 °F); Humidity 10–100% RH (condensing)
Storage Conditions	−40 °C to 65 °C (−40 °F to 149 °F); 5–95% RH (non-condensing)
Environmental Protection	IP66, IP67, IK10, NEMA 4X, NEMA TS2
Dimensions	Height 261 mm; Ø239 mm (with shield) / Ø192 mm (without shield)
Weight	4400 g (9.7 lb)
Power	IEEE 802.3bt Type 3 Class 6; typical 13.7 W (no IR); max 51 W
Interfaces	RJ45 10BASE-T/100BASE-TX/1000BASE-T; RJ45 push-pull connector (IP66)
Casing	Repaintable metal casing (aluminum), hard coated Polycarbonate (PC) clear dome with Sharpdome technology
Storage	SD/SDHC/SDXC; AES-XTS 256-bit SD encryption; NAS support

[/properties]

[specifications]

Lens	6.91–214.64 mm; HFOV 60.6°–2.0°; VFOV 36.5°–1.1°; laser focus; autofocus; P-iris
Pan/Tilt	Pan: 360° endless, 0.05°–550°/s; Tilt: +20° to −90°, 0.05°–500°/s
Zoom	31x optical; 12x digital; 372x total; quick-zoom; speed dry; 300 presets; guard tours
Video Compression	AV1; H.264 Baseline/Main/High; H.265 Main; Motion JPEG
Video Streaming	Multiple streams; Zipstream for AV1/H.264/H.265; VBR/ABR/MBR; low-latency mode
Image Features	Forensic WDR up to 120 dB; EIS; defogging; local contrast; 100 polygon privacy masks
Audio	Input/output via Portcast technology
Network Protocols	IPv4/IPv6, HTTPS/HTTP/2, TLS, FTP/SFTP, SMB, SMTP, UPnP, SNMP, RTP/RTSP/SRTP, DHCP, MQTT, LLDP/CDP, NTCIP, secure syslog
System Integration	Open API (VAPIX, ACAP); One-Click Cloud Connection; ONVIF Profiles G/M/S/T
Analytics	AXIS Object Analytics; humans & vehicles classification; line crossing; object in area; time in area; crossline counting; tailgating detection; PPE monitoring (BETA); motion in area; motion line crossing
Scene Metadata	Humans, faces, vehicles, license plates; attributes include vehicle color, clothing color, confidence, position
Cybersecurity	Secure boot; signed OS; encrypted filesystem; AES-XTS SD encryption; Axis Edge Vault; secure element (CC EAL6+); 802.1X; MACsec; firewall
Approvals	EMC: EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, RCM AS/NZS CISPR 32, ICES-3(A), VCCI Class A, KS C 9835, KS C 9832, FCC Class A, IEC 62236-4; Safety: IEC/EN/UL 62368-1, IEC/EN 62471 RG2, IEC 60825-1 Class 1; Environment: IK10, IP66/IP67, NEMA 4X, NEMA TS2, ISO 21207, ISO 12944-6 C5
IR Illumination	OptimizedIR, 850 nm LEDs, 300+ m (984 ft) reach

[/specifications]

[accesories]

Included	Installation guide; IP66-rated network connector; repaint template; paint paper
Optional Accessories	AXIS TQ6808-E Hard-Coated Clear Dome; AXIS TQ6815-E Dome Hard-Coated Smoked; AXIS TU8003 90 W Connectivity Midspan; AXIS T91/T94 Mounting Accessories; AXIS Surveillance Cards

[/accesories]

Premium 2 MP PTZ with Advanced AI and Extreme Low-Light Clarity

The AXIS Q6355-LE delivers exceptional surveillance performance with its large 1/2" sensor, Lightfinder technology, Forensic WDR, and powerful 31x optical zoom. With OptimizedIR providing illumination at distances of 300 m or more, it ensures reliable nighttime identification across vast outdoor areas.

Powered by the ARTPEC-9 SoC and deep learning processing unit, it supports next-generation analytics including AXIS Object Analytics and Scene Metadata. With IP66/IP67, IK10, and NEMA 4X ratings, it is engineered for harsh environments and mission-critical deployments.

Key Benefits

• 1/2” light-sensitive sensor delivers outstanding image quality in challenging lighting.
• 31x optical zoom and 372x total zoom enable long-range observation and identification.
• OptimizedIR provides high-performance illumination reaching 300+ meters.
• AI-powered analytics enhance detection, classification, and situational awareness.
• Rugged IP66/IP67/IK10/NEMA 4X construction withstands extreme outdoor conditions.
• Zipstream with AV1/H.264/H.265 reduces bandwidth and storage usage.
• Edge Vault and secure boot deliver robust, hardware-anchored cybersecurity.

Ideal Use Cases

• City surveillance and large public spaces requiring long-range PTZ coverage.
• Critical infrastructure and perimeter protection with nighttime visibility.
• Transportation hubs, highways, and high-altitude mounting points.
• Industrial and energy facilities demanding hardened outdoor security.

Technical Specifications Summary

• Image sensor: 1/2” progressive scan CMOS
• Lens: 6.91–214.64 mm; HFOV 60.6°–2.0°
• Video: 1080p up to 60 fps; Forensic WDR; Lightfinder; EIS
• IR: OptimizedIR, 300+ m reach
• Compression: AV1, H.264, H.265, Motion JPEG
• PTZ: 360° endless pan; +20° to −90° tilt; 31x optical zoom
• Protection: IP66/IP67, IK10, NEMA 4X
• Power: IEEE 802.3bt Type 3 Class 6

Upgrade Your Operations

Deploy long-range, AI-powered PTZ surveillance built for the toughest outdoor environments.
