[shortdesc]2 MP outdoor-ready PTZ camera with a 1/2" sensor, 31x optical zoom, Forensic WDR, Lightfinder, OptimizedIR up to 300 m, ARTPEC-9 SoC with deep-learning analytics, and rugged IP66/IP67/IK10/NEMA 4X protection for demanding surveillance environments.[/shortdesc]

[properties]

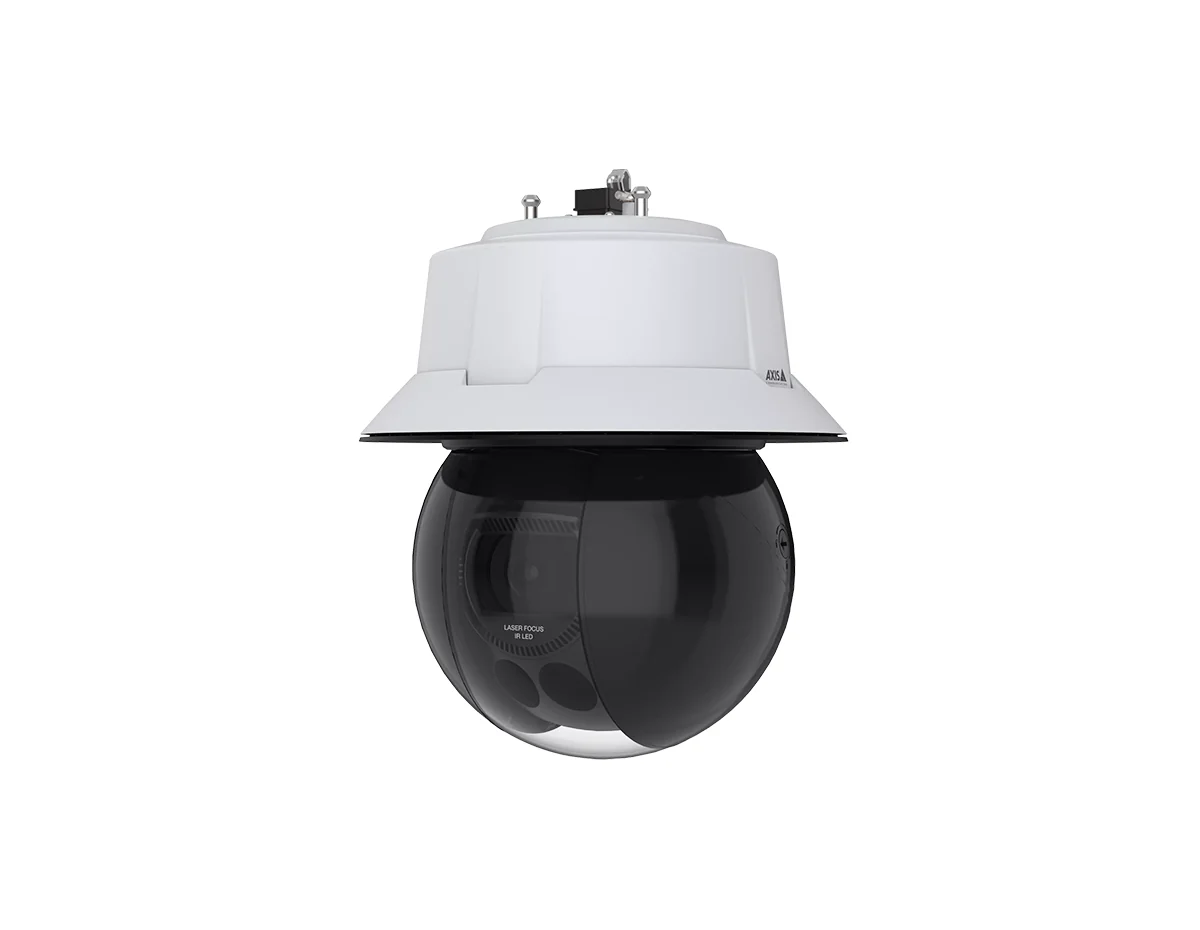

Model	AXIS Q6355-LE PTZ Camera (02976-004)
Product Type	PTZ Camera
Image Sensor	1/2" progressive scan CMOS
Optical Zoom	31x optical zoom
Minimum Illumination	Color: 0.06 lux at 30 IRE, F1.36; B/W: 0.001 lux at 30 IRE, F1.36, 0 lux with IR
Shutter Speed	1/111000 s to 1/2 s
Video Resolution	1920×1080 (HDTV 1080p) to 320×180
Frame Rate	Up to 50/60 fps (50/60 Hz) in all resolutions
IR Range	OptimizedIR, 300 m (984 ft) or more depending on scene
Operating Conditions	Full power: -50 °C to 55 °C (-58 °F to 131 °F); Low power: -10 °C to 55 °C (14 °F to 131 °F); Arctic startup down to -40 °C (-40 °F); Maximum temperature (NEMA TS2): 74 °C (165 °F); Humidity 10–100% RH
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F); Humidity 5-95% RH (non-condensing)
Environmental Protection	IP66, IP67, IK10, NEMA 4X, NEMA TS2
Dimensions	Height: 261 mm; Ø239 mm (with shield) / Ø192 mm (without shield)
Weight	4400 g (9.7 lb)
Power	IEEE 802.3bt Type 3 Class 6; typical 13.7 W (no IR), max 51 W
Storage	SD/SDHC/SDXC support; encrypted SD card recording
Casing	Repaintable metal casing (aluminum), hard coated Polycarbonate (PC) clear dome with Sharpdome technology

[/properties]

[specifications]

Lens	6.91–214.64 mm; HFOV 60.6°–2.0°; VFOV 36.5°–1.1°; laser focus; autofocus; P-iris
Pan/Tilt	Pan: 360° endless, 0.05°–550°/s; Tilt: +20° to −90°, 0.05°–500°/s
Zoom	31x optical, 12x digital, total 372x; quick-zoom; speed dry; 300 presets; guard tours
Video Compression	AV1, H.264 Baseline/Main/High, H.265 Main, Motion JPEG
Streaming	Multiple streams; Zipstream for AV1/H.264/H.265; VBR/ABR/MBR; low-latency mode
Image Features	Forensic WDR up to 120 dB; EIS; defogging; local contrast; 100 polygon privacy masks
Audio	Input/output via Portcast technology
Network Protocols	IPv4/IPv6, HTTPS, HTTP/2, TLS, FTP/SFTP, SMB, SMTP, UPnP, SNMP, RTP/RTSP/SRTP, DHCP, MQTT, LLDP/CDP, NTCIP, secure syslog
System Integration	Open API; VAPIX; ACAP; One-Click Cloud Connection; ONVIF Profiles G/M/S/T
Analytics	AXIS Object Analytics; human/vehicle classification; line crossing; time-in-area; tailgating detection; PPE monitoring (BETA); motion-based triggers
Scene Metadata	Humans, faces, vehicles, license plates; attributes: colors, confidence, position
Cybersecurity	Signed OS; secure boot; encrypted filesystem; Axis Edge Vault; secure keystore (CC EAL6+); AES-XTS SD encryption
Approvals	EMC: EN 55032 A, FCC A, EN 61000-series; Safety: IEC/EN/UL 62368-1; Environment: IK10, IP66/IP67, NEMA 4X, NEMA TS2, ISO 21207, ISO 12944-6 C5
IR Illumination	OptimizedIR, 850 nm LEDs, 300+ m reach

[/specifications]

[accesories]

Included	Installation guide; Windows decoder license; 90 W midspan; IP66 connector; repaint template; paint paper
Optional Accessories	AXIS TQ6808-E Clear Dome; AXIS TQ6815-E Smoked Dome; AXIS TU8003 90 W Midspan; AXIS T91/T94 Mounts; AXIS Surveillance Cards

[/accesories]

High-Performance 2 MP PTZ with AI Analytics and Extreme Low-Light Clarity

The AXIS Q6355-LE delivers outstanding image quality with its 1/2" sensor, 31x optical zoom, Forensic WDR, and Lightfinder. Its OptimizedIR enables visibility up to 300 m, ensuring reliable performance even in complete darkness.

Powered by the ARTPEC-9 chipset with a dedicated deep-learning processing unit, it supports advanced analytics including AXIS Object Analytics and Scene Metadata. The hardened housing—IP66/IP67, IK10, and NEMA 4X—ensures dependable performance in harsh outdoor conditions.

Key Benefits

• High sensitivity 1/2” sensor ensures superior clarity in low-light scenes.
• 31x optical zoom and 372x total zoom for long-distance identification.
• OptimizedIR provides powerful illumination extending beyond 300 m.
• AI-powered analytics enable accurate detection, classification, and automation.
• Rugged weather- and impact-resistant housing for demanding installations.
• Zipstream with AV1/H.264/H.265 significantly reduces bandwidth and storage use.
• Axis Edge Vault and advanced encryption strengthen device security.

Ideal Use Cases

• City surveillance and traffic monitoring in wide outdoor areas.
• Critical infrastructure protection with long-range nighttime visibility.
• Perimeter security for industrial facilities and transportation hubs.
• High-security locations requiring automated analytics and event detection.

Technical Specifications Summary

• Image sensor: 1/2” progressive scan CMOS
• Lens: 6.91–214.64 mm; HFOV 60.6°–2.0°
• Video: 1080p up to 60 fps; Forensic WDR; Lightfinder; EIS
• IR: OptimizedIR, 300 m reach
• Compression: AV1, H.264, H.265, Motion JPEG
• PTZ: 360° endless pan; +20° to −90° tilt; 31x optical zoom
• Protection: IP66/IP67, IK10, NEMA 4X
• Power: IEEE 802.3bt Type 3 Class 6

Upgrade Your Operations

Enhance wide-area surveillance with powerful PTZ performance and next-generation analytics.
