[shortdesc]Advanced 4 MP AI-powered outdoor dome with 4.7–10 mm varifocal lens, OptimizedIR up to 60 m, Forensic WDR, Lightfinder 2.0, and rugged IP66/IP69/IK10/NEMA 4X protection.[/shortdesc]

[properties]

Model	AXIS Q3546-LVE 10 mm Dome Camera (02971-001)
Product Type	Dome Camera
Image Sensor	1/1.8" progressive scan RGB CMOS, 2.9 µm pixel size
Lens	Varifocal 4.7–10 mm, F1.1–1.2; 2.2× optical zoom; HFOV 101°–44°; VFOV 54°–25°; minimum focus distance 0.50 m; P-Iris control, IR-corrected, remote zoom and focus
Day/Night	Automatic IR-cut filter
Minimum Illumination	Color: 0.01 lux at 50 IRE, F1.1; B/W: 0 lux at 50 IRE, F1.1; 0 lux with IR illumination on
IR Illumination	OptimizedIR with 850 nm LEDs; range up to 60 m (195 ft) or more depending on the scene
WDR	Forensic WDR up to 120 dB (scene-dependent)
Image Processing	Axis Zipstream, Forensic WDR, Lightfinder 2.0, spatial (2D) and temporal (3D) noise reduction
SoC	ARTPEC-9 system-on-chip with Deep Learning Processing Unit (DLPU)
Memory	4 GB RAM, 8 GB Flash
Audio	External mic input (unbalanced, optional 5 V power); line input; audio streaming with configurable full/half duplex; 10-band graphic EQ; speaker pairing
Network Interface	Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T with PoE
Power	PoE IEEE 802.3at Type 2 Class 4 or 8–28 V DC; max 25.5 W
Operating Conditions	−50 °C to 55 °C (−58 °F to 131 °F); 10–100% RH (non-condensing)
Environmental Ratings	IP66, IP69, IP6K9K, NEMA 4X, IK10; tested to IEC 60068-2 (temperature, vibration, shock, humidity) and ISO 21207 (corrosion)
Storage Support	microSD/microSDHC/microSDXC card slot with SD card encryption (AES-XTS-Plain64 256-bit); support for NAS recording
Dimensions	Effective Projected Area (EPA): 0.041 m² (0.44 ft²)
Weight	2360 g (5.2 lb)

[/properties]

[specifications]

Video	H.264 (Baseline/Main/High), H.265 (Main), AV1, Motion JPEG; up to 2688×1512 (16:9); up to 25/30 fps with Forensic WDR in all resolutions; up to 100/120 fps without WDR; Axis Zipstream for H.264/H.265/AV1; up to 20 unique streams; multi-view streaming with up to 7 individually cropped areas; controllable frame rate and bandwidth; VBR/ABR/MBR; low latency mode
Image Settings	Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defog, barrel distortion correction, compression, rotation 0°/90°/180°/270° including corridor format, mirroring, privacy masks, dynamic text and image overlays, overlay widget, lock aperture, target aperture
PTZ / Orientation	Digital PTZ and optical zoom; pan ±180°, tilt −42° to +80°, rotation ±180°; preset positions; limited guard tour and tour recording; control queue; on-screen directional indicator
Audio Encoding	AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM 48 kHz; configurable bitrate
Networking	IPv4/IPv6, HTTP/2, HTTPS/TLS, FTP, SFTP, CIFS/SMB, SMTP, mDNS/Bonjour, UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP/PTP/NTS, RTSP/RTP/RTCP, SRTP/RTSPS, TCP/UDP/IGMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, secure syslog; QoS Layer 3 DiffServ
System Integration	Open API with VAPIX and ACAP; one-click cloud connection; support for ONVIF Profiles G, M, S, and T; SIP for VoIP, peer-to-peer or PBX
Event Triggers	Audio detection; application events; device status (temperature, casing open, fan failure, network lost, IP changes, shock detection, etc.); digital input and virtual input; scheduled/recurring events; video events (average bitrate degradation, day/night mode); edge storage events
Event Actions	Play/stop audio clips; make/answer/end SIP calls; switch day/night mode; start/stop guard tours; toggle I/O; control IR illumination and status LEDs; send HTTP/HTTPS/TCP/email notifications; overlay text; record to SD card or network share with pre/post buffers; upload images/video; send SNMP traps; erase configuration
Analytics	AXIS Object Analytics (humans, vehicles incl. cars, buses, trucks, bikes, other; scenarios such as line crossing, object in area, time in area, counting, occupancy, tailgating, PPE monitoring BETA, motion in area/line crossing); AXIS Scene Metadata; AXIS Image Health Analytics; AXIS Video Motion Detection; AXIS Live Privacy Shield; audio detection; supports AXIS Perimeter Defender and AXIS License Plate Verifier; supports third-party ACAP applications
Cybersecurity	Axis Edge Vault hardware-based cybersecurity platform; secure keystore in secure element (CC EAL 6+, FIPS 140-3 Level 3); signed OS and secure boot; signed video; encrypted filesystem (AES-XTS-Plain64 256-bit); brute-force protection; HTTPS/HSTS, IEEE 802.1X (EAP-TLS/PEAP-MSCHAPv2), MACsec, host-based firewall, TLS 1.2/1.3, Axis Cryptographic Module
Approvals & Certifications	Product markings: UL, CE, FCC, ICES, KC, VCCI, RCM; EMC: CISPR 32/35, EN 55032/55035, EN 50121-4, EN 61000-3-2/-3-3, EN 61000-6-1/-6-2; safety: IEC/EN/UL 62368-1, IEC/EN 62471; environment: IEC/EN 60529 IP66/IP69, IEC/EN 62262 IK10, ISO 20653 IP6K9K, NEMA 250 Type 4X
Storage Conditions	−40 °C to 65 °C (−40 °F to 149 °F); 5–95% RH (non-condensing)

[/specifications]

[accesories]

Included	Camera, weathershield, installation guide, terminal block connectors, connector guard, cable gaskets, owner authentication key
Optional Accessories	AXIS T61 MkII Audio & I/O Interface Series; AXIS T8415 Wireless Installation Tool; AXIS TQ3204-E Recessed Mount; AXIS TQ3103-E Pendant Kit; AXIS Surveillance Cards; AXIS TQ3818-E Smoked Dome

[/accesories]

Advanced Outdoor AI Dome with Powerful 4.7–10 mm Varifocal Optics

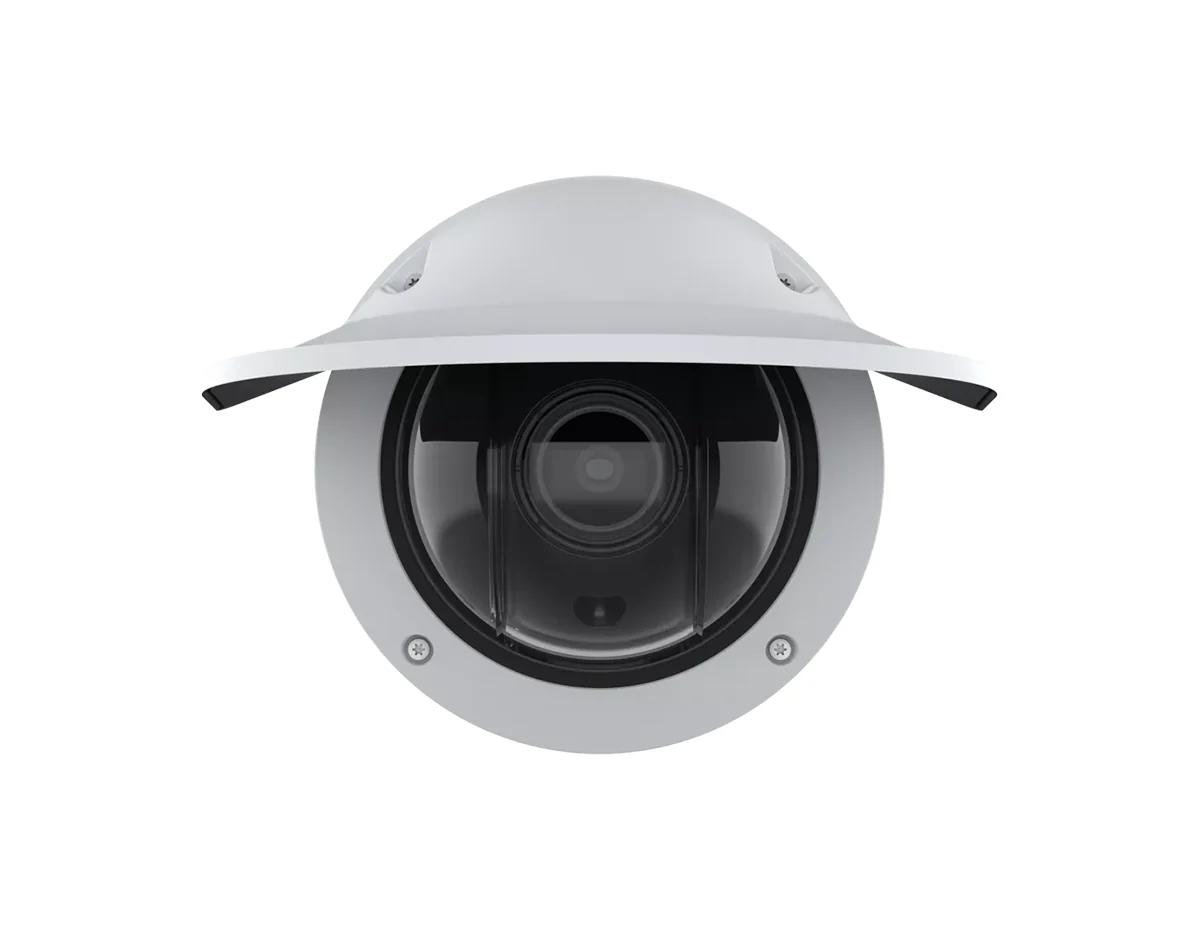

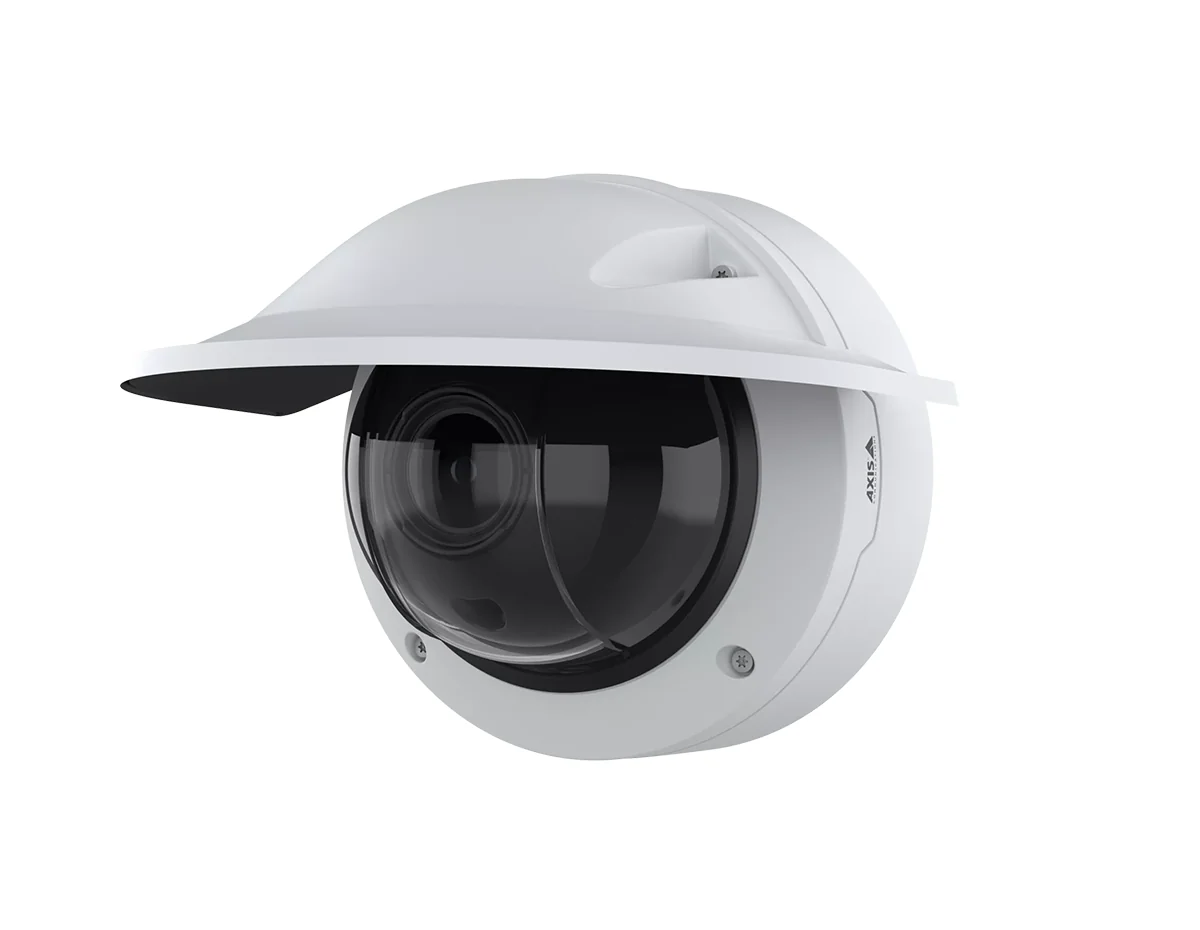

The AXIS Q3546-LVE 10 mm Dome Camera delivers outstanding 4 MP image quality even in harsh outdoor environments. Built on AXIS ARTPEC-9 with a deep learning processing unit, it enables powerful edge analytics such as AXIS Object Analytics and rich scene metadata. The 4.7–10 mm varifocal lens with 2.2× optical zoom offers flexible wide-to-tele coverage, while the IR-shielded dome and OptimizedIR up to 60 m ensure clear, low-noise video even in complete darkness.

Designed for demanding installations, this IP66/IP69/IP6K9K-, IK10- and NEMA 4X-rated dome features a robust aluminum housing and hard-coated polycarbonate dome to withstand extreme temperatures, vibration, and corrosion. With Axis Edge Vault, secure boot, signed OS and video, and encrypted storage, it provides strong, hardware-based cybersecurity for critical applications.

Key Benefits

• 4 MP resolution with Lightfinder 2.0 and Forensic WDR for superior performance in low light and high-contrast scenes
• 4.7–10 mm varifocal lens with 2.2× optical zoom for flexible wide and tele coverage
• OptimizedIR up to 60 m with IR-shielded dome to reduce reflections and preserve details at night
• ARTPEC-9 SoC with DLPU for advanced AI analytics at the edge
• Rugged outdoor design with IP66/IP69/IP6K9K, IK10, and NEMA 4X ratings for harsh environments
• Comprehensive cybersecurity with Axis Edge Vault, secure keystore, signed OS/video, and encrypted filesystem
• Seamless integration via ONVIF, SIP, VAPIX, ACAP, and major video management systems

Ideal Use Cases

• Critical infrastructure protection for energy, utilities, and transportation hubs
• Perimeter security for industrial facilities, logistics centers, and large campuses
• Harsh-weather outdoor surveillance in environments with vibration, salt spray, or corrosion
• Analytics-driven monitoring where object classification, counting, and occupancy insights are required
• High-security installations that demand signed video evidence and hardened cyber protection

Technical Specifications Summary

• Image sensor: 1/1.8" RGB CMOS, 2.9 µm pixel size
• Lens: 4.7–10 mm varifocal, F1.1–1.2, 2.2× optical zoom; HFOV 101°–44°; VFOV 54°–25°
• Video: Up to 4 MP (2688×1512) at 25/30 fps with WDR; up to 100/120 fps without WDR; H.264/H.265/AV1/MJPEG with Zipstream
• IR range: OptimizedIR up to 60 m or more (scene-dependent)
• Analytics: AXIS Object Analytics, Scene Metadata, Image Health Analytics, Video Motion Detection, Live Privacy Shield; supports Perimeter Defender and License Plate Verifier
• Power: PoE IEEE 802.3at Type 2 Class 4 or 8–28 V DC; max 25.5 W
• Durability: IP66, IP69, IP6K9K, IK10, NEMA 4X; tested for vibration, shock, and corrosion
• Operating conditions: −50 °C to 55 °C; 10–100% RH (non-condensing)

Upgrade Your Operations

Deploy the AXIS Q3546-LVE 10 mm Dome Camera to combine advanced AI-powered analytics, long-range IR performance, and robust environmental protection in a single, versatile outdoor-ready dome.
