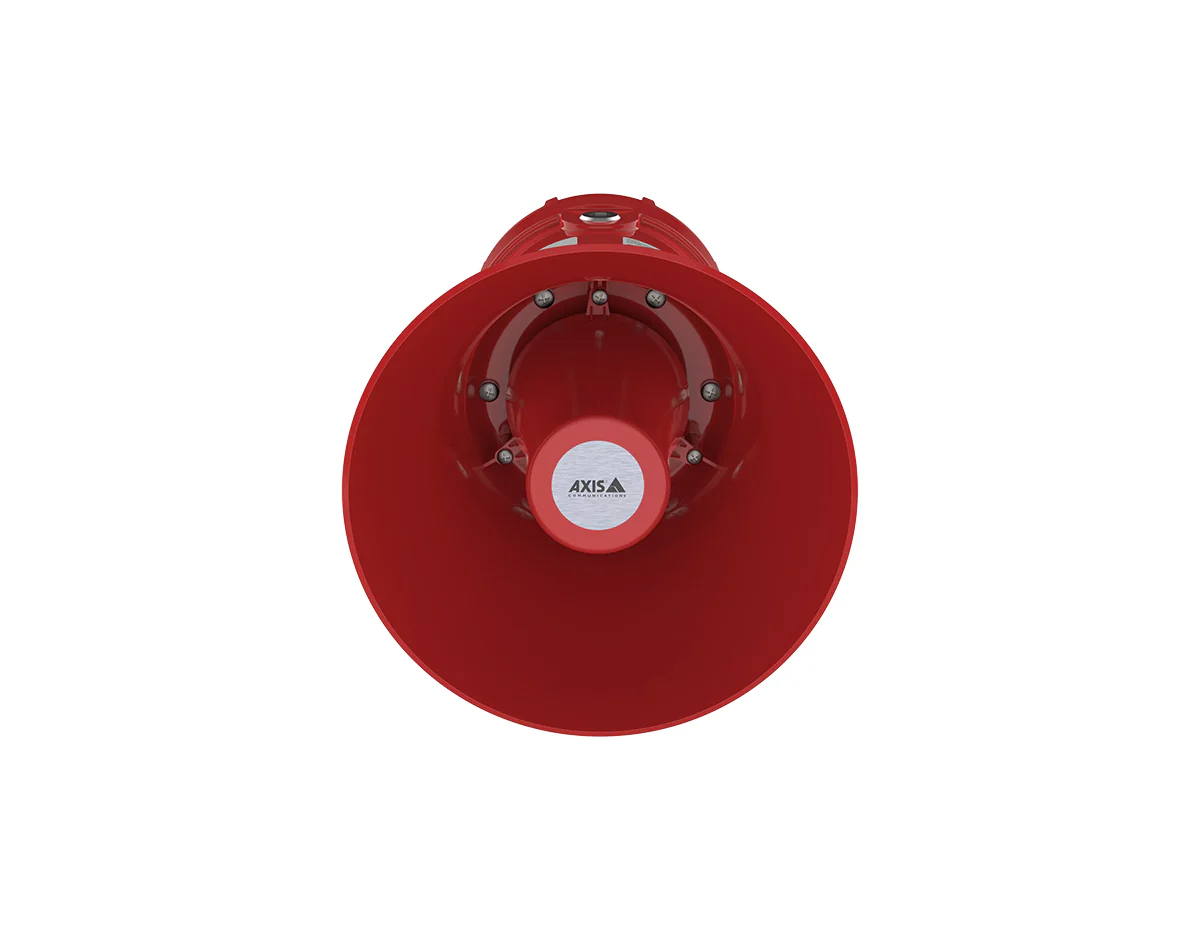

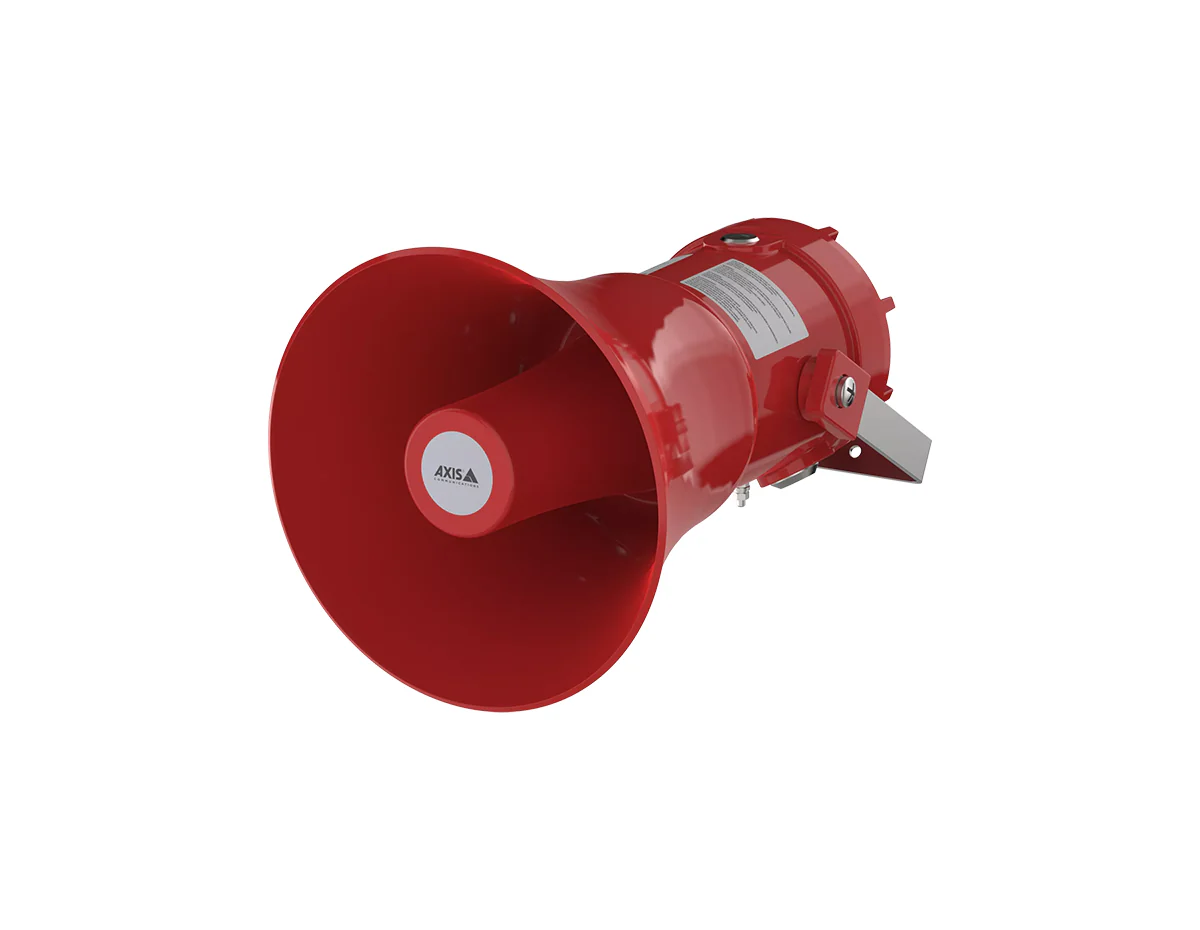

AXIS XC1311 Explosion-Protected Horn Speaker (02962-001)
[shortdesc]Explosion-protected horn speaker certified for Class I Div 1 & Zone 1 hazardous environments with >110 dB output, PoE, built-in DSP and Axis Edge Vault cybersecurity.[/shortdesc]
[properties]
| Model | AXIS XC1311 (02962-001) |
| Product Type | Explosion-protected network horn speaker |
| Power | PoE IEEE 802.3af/802.3at Type 1 Class 3; Typical 7 W, Max 12.95 W |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Storage Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity | Operating: 10–100% RH (condensing); Storage: 5–95% RH (non-condensing) |
| Weight | 4220 g (9.3 lb.) |
| Casing | IP66/IP67, NEMA 4X, impact-resistant aluminum, RAL 3000 |
| Network Interface | RJ45 10BASE-T/100BASE-TX PoE |
| Memory | 1024 MB RAM, 1024 MB Flash |
| SoC | NXP i.MX 8M Nano |
| Languages Supported | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Traditional Chinese, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
[/properties]
[specifications]
| Audio Hardware | Re-entrant horn loudspeaker with compression driver, built-in 7 W Class D amplifier, digital signal processing |
| Max Sound Pressure Level | >110 dB at 1 m |
| Frequency Response | 400 Hz – 5.5 kHz |
| Coverage Pattern | 54° |
| Audio Encoding | AAC LC, G.711 PCM, G.726 ADPCM, Axis µ-law, WAV, MP3 (64–320 kbps), 8–48 kHz sampling |
| Streaming | One-way audio |
| Audio Management | AXIS Audio Manager Edge (preinstalled), with zone, content, scheduling, prioritization, health monitoring and user access control |
| System Integration | Open API (VAPIX), SIP, AXIS Camera Station compatibility, third-party VMS support, MQTT |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, DHCP, TCP/IP, UDP, FTP, SFTP, NTP, PTP, SNMP v1/v2c/v3, SSH, RTP, RTSP, IGMP, DNS, SIP, QoS, SOCKS |
| Cybersecurity Software | Signed firmware, secure boot, brute force protection, OAuth 2.0, digest authentication, FIPS 140-2 cryptographic module |
| Cybersecurity Hardware | Axis Edge Vault secure element (CC EAL 6+), Axis Device ID, secure keystore |
| Environmental Ratings | IP66/IP67, NEMA 4X |
| Explosion Certifications | Class I Div 1 Groups A–D; Class I Zone 1 AEx db IIC T5 Gb; Zone 21 AEx tb IIIC T91°C Db; IECEx & ATEX certified |
| EMC & Safety | EN 55035, EN 55032 Class A, EN 61000-6-1/-6-2, FCC Part 15 Class A; IEC/EN/UL 62368-1 |
| Reliability | Designed for 24/7 operation |
[/specifications]
[accesories]
| Included | Horn speaker, installation guide, terminal block connector, ring terminal, owner authentication key |
| Optional Accessories | Pole Mount ExCam XF, Pole Mount ExCam XPT |
[/accesories]
The AXIS XC1311 Explosion-Protected Horn Speaker delivers powerful, clear voice-based warnings and alerts in hazardous areas where electrical sparks must be avoided. With a >110 dB output and optimized acoustic horn design, announcements remain clear even amid high ambient noise. Installation is streamlined with a single PoE connection for power and data, reducing infrastructure cost and complexity.
The unit is certified for worldwide explosive-risk environments including Class I Div 1, Zone 1 IIC, and carries IP66/IP67/NEMA 4X ingress rating for resilience against dust, corrosion and water. Built-in Axis Edge Vault ensures best-in-class cybersecurity and device authentication.
Explosion-Protected Network Audio for Critical Safety and Alerts
- Hazard-zone-approved enclosure for Class I Div 1 and Zone 1 deployments
- >110 dB strong output for audible warnings in noisy industrial sites
- Built-in DSP ensures clarity of speech and alarm tones
- Single-cable PoE installation reduces cost and simplifies deployment
- AXIS Audio Manager Edge enables remote content control and system health monitoring
- Axis Edge Vault provides hardware-based cybersecurity and secure boot
Ideal Use Cases
- Oil & gas refineries and offshore platforms
- Chemical processing and hazardous storage facilities
- Mining environments and excavation sites
- Industrial manufacturing zones with flammable gases
- Marine and port safety warning systems
Technical Specifications Summary
- Output: >110 dB at 1 m
- Frequency: 400 Hz–5.5 kHz
- Amplifier: Built-in 7 W Class D
- Ingress Protection: IP66/IP67, NEMA 4X
- Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Security: Axis Edge Vault, secure boot, signed firmware
- Explosion Certifications: Class I Div 1, Zone 1 IIC, ATEX, IECEx
Upgrade Your Operations
Deploy safe, reliable, and high-impact voice alerts in the world’s most hazardous environments.
