[shortdesc] Dual-sided network display speaker with two 3-inch speakers, two text displays, RGBW strobe, two-way audio, and PoE power for effective mass notification. [/shortdesc]

[properties]

Model	AXIS C1720 (02960-001)
Product Type	Network Display Speaker
Dual Speakers	Two 3-inch dynamic cone speakers
Strobe	Dynamic RGBW LED strip, 266 lm (PoE6) / 150 lm (PoE4)
Display Size	8.8-inch LCD full color (x2)
Display Resolution	1920 × 480
Frequency Response	180 Hz – 15.5 kHz
Max SPL	99 dB (PoE6) / 91 dB (PoE4)
Coverage Pattern	240° horizontal, 280° vertical
IP Rating	IP40
Dimensions (H × W × L)	156 × 160 × 462 mm
Weight	4700 g (10.4 lbs)
Casing	Die-casted aluminum, plastic, steel
Color	White (NCS S 1002-B)
Power	PoE 802.3at Class 4 / PoE 802.3bt Class 6
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C to 65 °C (-40 °F to 149 °F)
Operating Humidity	10–85% RH (non-condensing)
Storage Humidity	5–95% RH (non-condensing)

[/properties]

[specifications]

Amplifier	Built-in 20 W Class D amplifier
Audio Inputs	Built-in microphone; external unbalanced microphone input; unbalanced line input
Built-in Microphone Range	28 Hz – 20 kHz
Audio Streaming	Two-way (full duplex)
Audio Encoding	AAC LC, G.711 PCM, G.726 ADPCM, Axis µ-law, WAV, MP3, Opus (8–48 kHz)
Connectors	3.5 mm audio in; RCA line-out; 4-pin I/O; USB 2.0 Type-A (disabled)
Display Visibility	Single-line text visible up to 12 m
PIR Sensor	Passive infrared, max range 10 m (33 ft)
Network Protocols	IPv4/IPv6, HTTPS, TLS, RTP/SRTP, SIP, MQTT, LLDP, CDP, DHCP, UPnP, SNMP v1/v2c/v3
Storage	microSD/microSDHC/microSDXC; SD card encryption supported
SoC	NXP i.MX 8M Mini
Memory	1024 MB RAM, 1024 MB Flash
Approvals – EMC	CISPR 32 Class A, EN 55035, EN 55032 Class A, FCC Part 15 Class A, VCCI Class A, ICES(A)
Approvals – Safety	CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1
Cybersecurity	Axis Edge Vault, secure boot, encrypted filesystem, IEEE 802.1X, MACsec, HTTPS/HSTS
Event Conditions	Audio detection, PIR, network status, digital I/O events, MQTT status, schedules
Event Actions	Play audio, LED flash, light profiles, MQTT publish, email, recording, SNMP trap
Installation Aids	Test tone verification, Auto Speaker Test via built-in mic

[/specifications]

[accesories]

Included in the Box	Network display speaker; 4-pin connector; installation guide; owner authentication key
Optional Accessories	AXIS Surveillance Cards; AXIS TC1604 Wall Mount; AXIS TC1606 Ceiling Mount; AXIS C8310 Volume Controller

[/accesories]

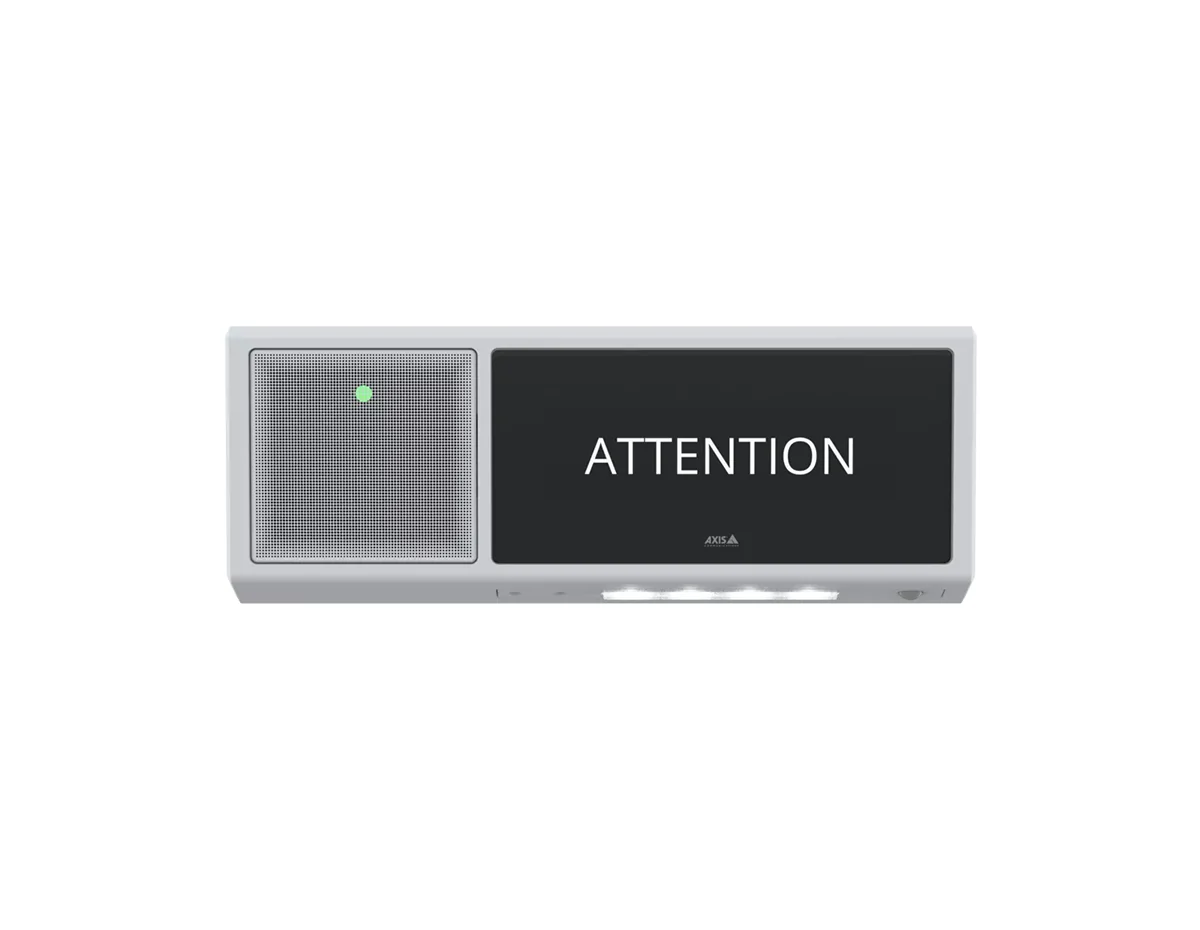

Powerful Dual-Sided Audio and Visual Alerts for Modern Facilities

The AXIS C1720 Network Display Speaker is a comprehensive 3-in-1 signaling device designed to improve situational awareness in large, open spaces. By combining two dynamic speakers, two full-color LCD text displays, and a programmable RGBW strobe bar, this dual-sided unit ensures that announcements and alerts are both heard and seen. It serves as an ideal solution for paging, public address, and mass notification across educational campuses, transportation terminals, and retail environments. Built on an open platform, the C1720 integrates effortlessly with SIP (VoIP) systems, VMS, and third-party mass notification software.

Key Benefits & Features

• Complete Dual-Sided Coverage: Features two 3-inch speakers and two 8.8-inch LCD screens to deliver audio and visual information in opposite directions simultaneously.
• Intelligent RGBW Strobe: The integrated LED strip provides visual status indicators or emergency alerts with customizable colors and patterns, delivering up to 266 lumens.
• Two-Way Communication: Equipped with a built-in microphone and full-duplex echo cancellation for clear two-way audio and remote health testing.
• Seamless Integration: Supports SIP, VAPIX, and ACAP for easy connection to VoIP telephony, video management systems, and analytics.
• Efficient Installation: A single network cable provides both data and power (PoE), simplifying deployment on walls or ceilings (mounts sold separately).

Ideal Use Cases

• Education: Hallway announcements and emergency lockdowns for schools and universities.
• Transportation: Arrival/departure updates and visual wayfinding in train stations and airports.
• Retail: Customer paging, background music, and promotional messaging in malls.
• Healthcare: Code alerts and staff paging in hospital corridors.
• Industry: Safety warnings and automated process alerts in manufacturing plants.

Technical Specifications

• Speakers: 2x 3-inch dynamic cone speakers in a sealed enclosure
• Audio Output: Max 99 dB SPL (PoE Class 6) / 91 dB SPL (PoE Class 4)
• Visuals: 2x 8.8-inch LCDs (1920x480) + RGBW LED Strobe
• Frequency Response: 180 Hz – 15.5 kHz
• Inputs: Built-in mic, external mic input, unbalanced line-in, digital I/O
• Security: Axis Edge Vault, Signed OS, Secure Boot
• Power: PoE 802.3at Class 4 / 802.3bt Class 6
• Dimensions: 156 x 160 x 462 mm (6.14 x 6.30 x 18.2 in)

Enhance Your Facility’s Communication Standard

Upgrade to the AXIS C1720 to ensure your critical messages are seen and heard in any environment. Order now to secure advanced audio-visual signaling for your network.
