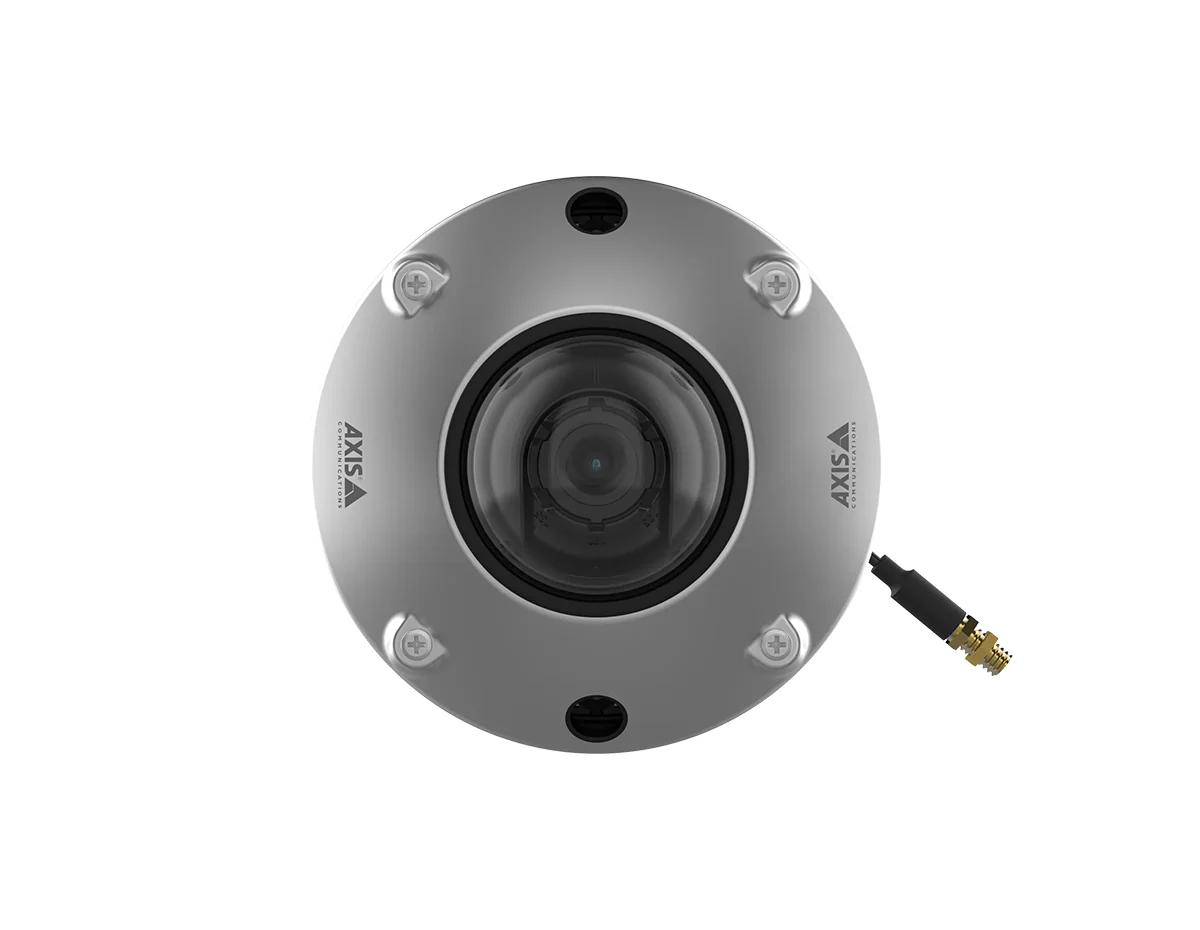

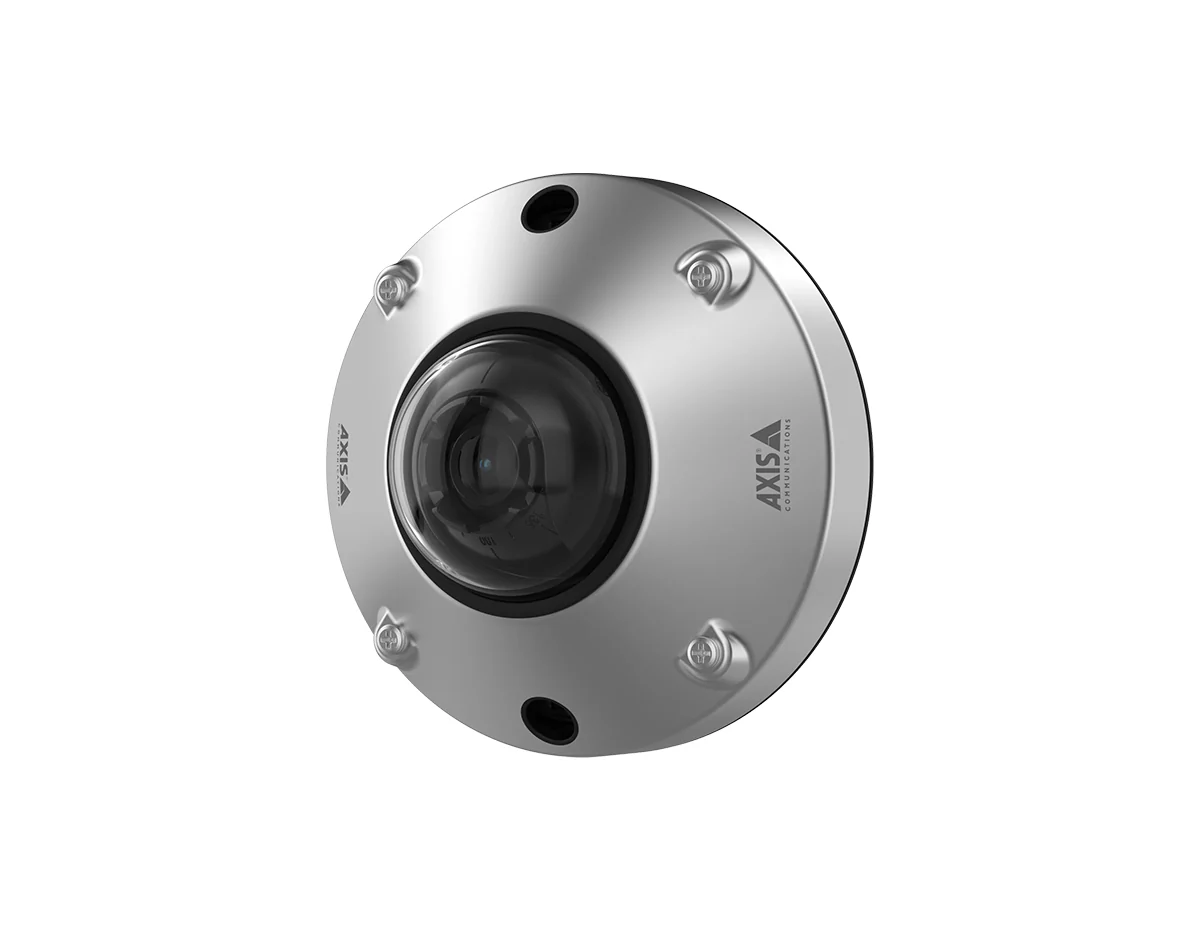

AXIS F4105-SLRE Dome Sensor (02927-001)
[shortdesc]Stainless steel mini dome sensor with IR illumination, Forensic WDR, exchangeable M12 lenses, up to 60 fps in 1080p, and sealed electropolished SS 316L housing for harsh environments.[/shortdesc]
[properties]
| Model | AXIS F4105-SLRE Dome Sensor (02927-001) |
| Casing | SS 316L stainless steel, IP66/IP67/IP69, IK10 |
| Lens | 2.8 mm F1.6 M12 (exchangeable) |
| IR Range | 10 m (33 ft) or more depending on the scene |
| Power Consumption | Typical 1.9 W, max 4.16 W |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F), up to 45°C (113°F) with IR on |
| NEMA TS2 Temperature | Up to 74°C (165°F) for 15 hours |
| Startup Temperature | -40°C (-40°F) |
| Humidity (operation) | 10–100% RH (condensing) |
| Storage Temperature | -40°C to 65°C (-40°F to 149°F) |
| Humidity (storage) | 5–95% RH (non-condensing) |
| Dimensions | Depth: 57.8 mm (2.3 in) ø 114 mm (4.5 in) Cable length: 100 mm (3.9 in) |
| Weight | 452 g (1 lb) |
| Required Hardware | AXIS TU6004–E Cable, or AXIS TU6005 Plenum Cable, or AXIS TU6007–E Cable AXIS F91 Main Unit |
| Connectors | SMA connector |
| Certifications | UL, CE, KC, NFS Standard 169, VCCI, RCM, WEEE |
| Environmental Resistance | Electropolished, stainless steel, dehumidified, encapsulated electronics |
[/properties]
[specifications]
| Image Sensor | 1/2.8” progressive scan RGB CMOS |
| Resolution | Max 1920×1080 (HDTV 1080p) |
| Frame Rate | 1080p up to 60/50 fps; 720p up to 180/175 fps |
| Field of View (1080p) | HFOV 110°, VFOV 60° |
| Field of View (720p) | HFOV 70°, VFOV 39° |
| Minimum Illumination | 0.3 lux (color, F2.0), 0 lux with IR |
| Day/Night | Automatically removable IR-cut filter |
| WDR | Forensic WDR |
| IR Illumination | 2x 940 nm LEDs, individually adjustable |
| Camera Adjustment | Pan ±180°, Tilt 120°, Rotation ±90° |
| EPA | 0.0045 m² (0.048 ft²) |
| DORI (Detect) | 27.5 m (90.2 ft) |
| DORI (Observe) | 15.6 m (51.2 ft) |
| DORI (Recognize) | 7.8 m (25.6 ft) |
| DORI (Identify) | 4.2 m (13.8 ft) |
| EMC Compliance | EN 55035, EN 55032 Class B, FCC Part 15, etc. |
| Safety | IEC/EN/UL 62368-1 ed.3 |
[/specifications]
[accesories]
| Included | Installation Guide, lens tool |
| Optional lenses | M12 2.1 mm (151°), 3.6 mm (88°), 6 mm (58°), 8 mm (42°) |
| Optional hardware | AXIS TU6002 SMA right-angle adaptor |
[/accesories]
The AXIS F4105-SLRE Dome Sensor is a highly resilient stainless-steel imaging head designed for harsh indoor/outdoor and hygienic environments, including food-processing and industrial use. Resistant to hot high-pressure washdowns and corrosive cleaning chemicals, it ensures reliable operation and consistent forensic-grade image quality. With IR illumination and Forensic WDR, it enables accurate visual monitoring in both high-contrast lighting conditions and complete darkness. Using Axis modular F-series architecture, it connects to AXIS F91 main units and allows up to four sensors for distributed surveillance installations.
With advanced environmental certifications, wide field of view, and durable electropolished SS 316L build, this sensor is optimized for reliability and long-term deployment in vibration-prone, sanitation-intensive, or extreme-temperature locations where conventional cameras fail.
Rugged stainless-steel dome sensor engineered for extreme environments
- Electropolished SS316L stainless steel body providing corrosion-resistant endurance in aggressive environments.
- IR LED illumination supports 0-lux nighttime imaging for reliable detection in total darkness.
- Forensic WDR ensures clarity in scenes involving bright and dark areas simultaneously.
- Flexible lens replacement enables dynamic FOV adaptation from detail-focused to wide-area coverage.
- Rated IP66/IP67/IP69 and IK10 for dust-tight, submersion-resistant, and impact-resistant deployment.
- Up to 60 fps at full 1080p delivers smooth and accurate motion video capture.
Ideal Use Cases
- Food production and sanitation facilities requiring NFS Standard 169 compliant gear.
- Industrial machinery areas with vibrations and particulate matter.
- Vehicle or onboard system installations requiring compact rugged imaging.
- High-humidity or steam-exposure environments including washdown areas.
- Dark environments requiring IR-based sight where no visible lighting is allowed.
Technical Specifications Summary
- Image sensor: 1/2.8” CMOS progressive scan
- Video: 1080p60, 720p180
- Lens: 2.8 mm exchangeable M12
- IR: 940 nm dual LED, 10 m (33 ft) or more
- Casing: SS316L IP66/IP67/IP69, IK10
- Operating temp: -30°C to 55°C (-22°F to 131°F)
- Startup temp: -40°C (-40°F)
- Weight: 452 g (1 lb)
Upgrade Your Operations
Deploy a compact stainless-steel imaging solution designed for harsh environments and demanding industrial installations.
