AXIS P1275 Mk II Modular Varifocal Dome Camera (02859-001)
- Complete, discreet varifocal dome delivers full HD resolution, Small dome sensor unit, HDTV 1080p with 99-55 degree field of view, Detachable cable up to 15 m, Support for analytics with deep learning, AXIS Object Analytics pre-installed
| Product Name | AXIS P1275 Mk II Modular Varifocal Dome Camera |
| Product Description | Complete, discreet varifocal dome camera with HDTV 1080p resolution |
| Image Sensor | 1/2.8” progressive scan RGB CMOS |
| Resolution | HDTV 1080p (1920x1080) |
| Lens | Varifocal 2.8–6.0 mm lens F2.0 |
| Horizontal Field of View | 53°–99° |
| Vertical Field of View | 53°–30° |
| Day/Night Functionality | No |
| Wide Dynamic Range | Forensic WDR |
| Low-Light Performance | Color: 0.2 lux |
| Video Compression | H.264, H.265, Motion JPEG |
| Frame Rate | Up to 25/30 fps |
| Analytics | AXIS Object Analytics pre-installed; deep learning capabilities |
| Cybersecurity | HTTPS encryption, IEEE 802.1X authentication |
| Audio Support | No |
| Local Storage | microSD/microSDHC/microSDXC card slot |
| Operating Conditions | -20 °C to 45 °C (-4 °F to 113 °F) |
| Power Supply | Power over Ethernet (PoE) Class 2 |
| Mounting Options | Wall or ceiling mounting with adjustable pan, tilt, and rotate |
| Environmental Ratings | IP42-rated |
| Additional Features | Detachable cable up to 15 m (49 ft); Axis Zipstream technology for bandwidth efficiency |
[specifications]
| Image Sensor | 1/2.8” progressive scan RGB CMOS |
| Lens | Varifocal 3–6 mm, F2.0 |
| Minimum Illumination | Color: 0.2 lux |
| Shutter Speed | 1/5 s to 1/32,000 s |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG |
| Noise Reduction | 3D noise reduction |
| Local Storage | microSD/microSDHC/microSDXC card slot supporting up to 1 TB |
| Power Consumption | Typical 3.4 W and maximum 4.1 W |
| Dimensions (Main Unit) | Height: 29 mm (1.1 in); Width: 80 mm (3.1 in); Depth: 120 mm (4.7 in) |
| Weight (Main Unit) | Main unit weight is 75 g with sensor unit 112 g |
| Compliance | Certifications: CE, FCC, IC, RCM, VCCI, KC, UL, CB, IEC/EN/UL 62368-1 |
| Ingress Protection | IP3X |
| Impact Resistance | Not applicable |
| Power Requirements | PoE IEEE 802.3af/802.3at Type 1 Class 2 |
| Cable Type | Detachable 8 m (26 ft.) cable included |

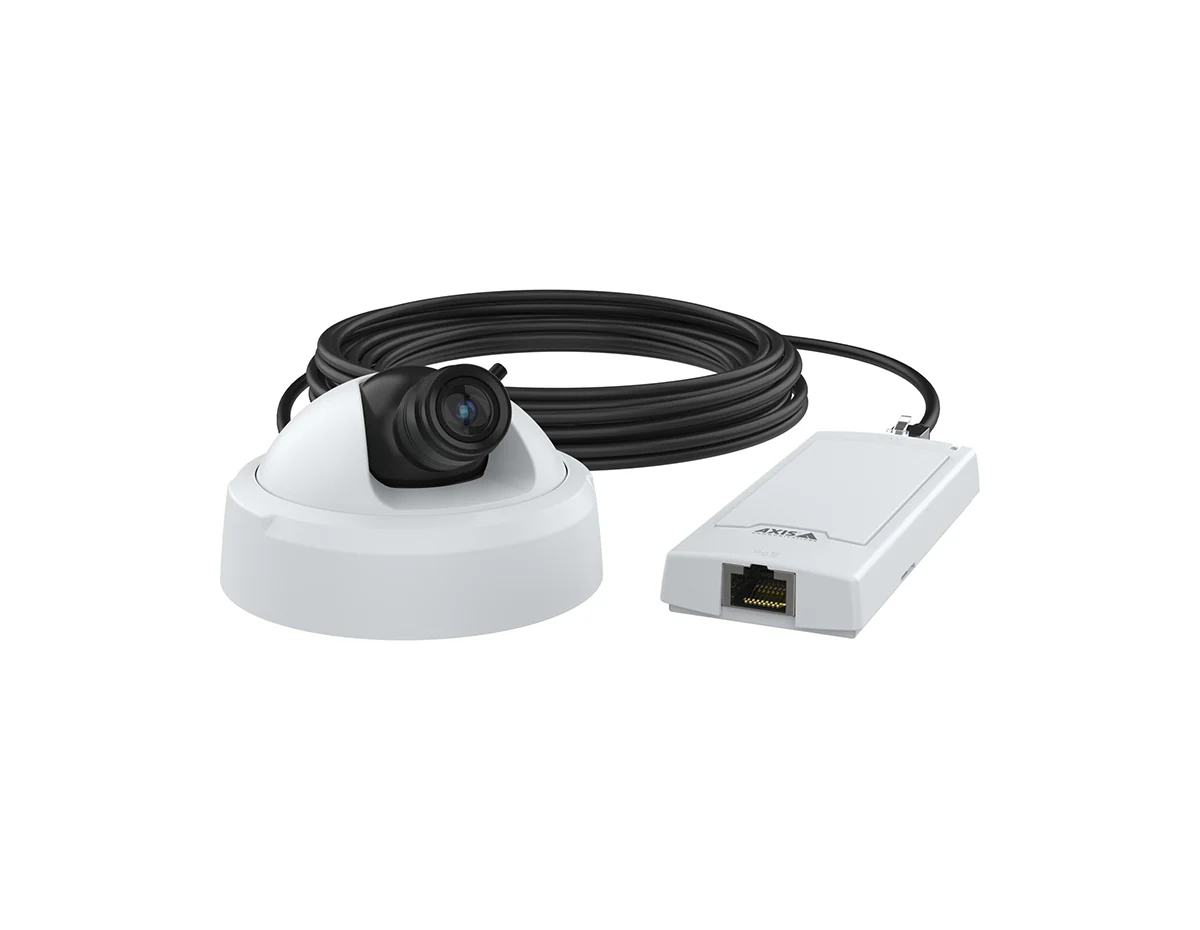

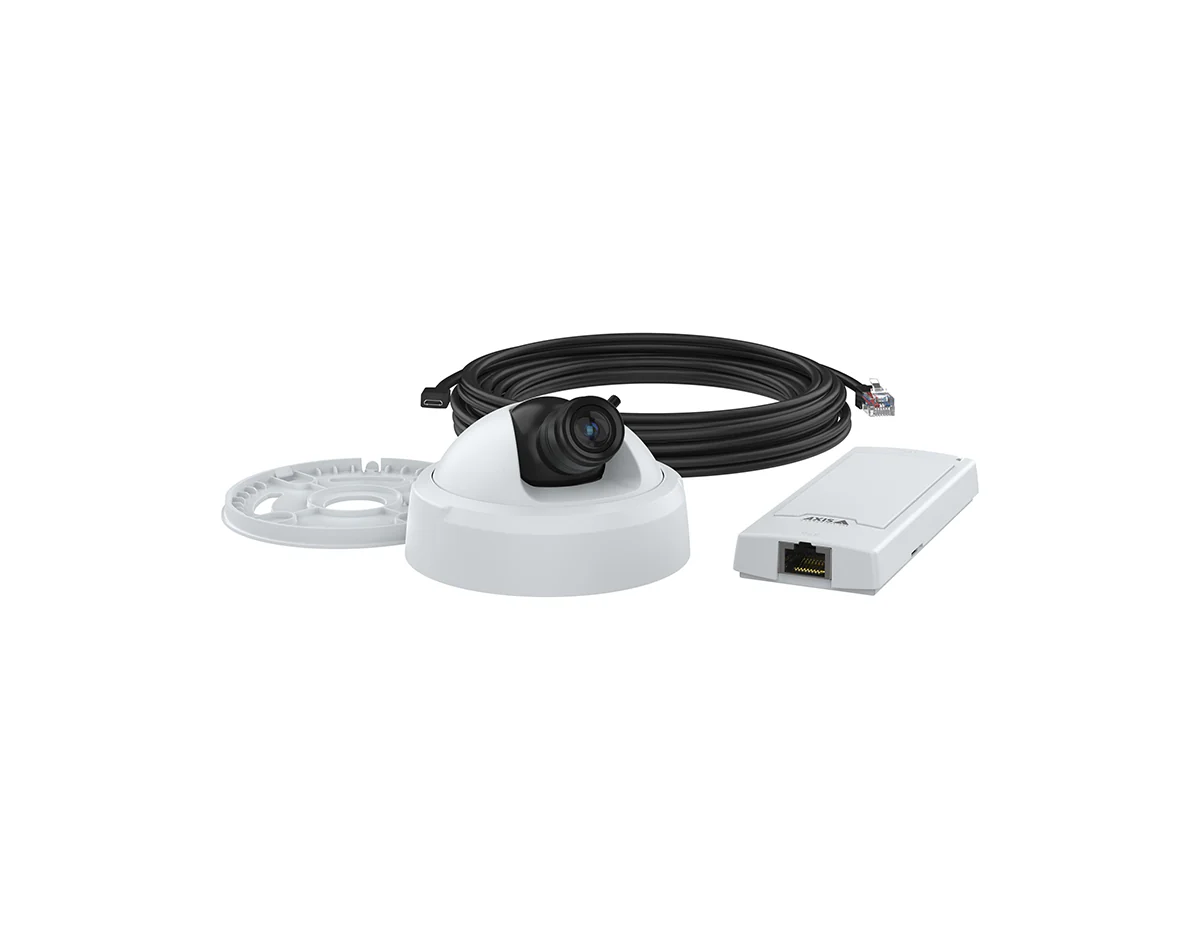

[/specifications]AXIS P1275 Mk II is Modular Varifocal Dome Camera with Deep Learning capabilities. It has a small-sized main unit and an AXIS FA4115 Dome Sensor Unit with a varifocal lens that enables easy mounting on walls or ceilings. It can be manually directed with pan, tilt and rotate movements. The camera provides HDTV 1080p resolution, 53-99 degree horizontal FoV and WDR - Forensic Capture. Supports multiple streams in H.264, H265 and Motion JPEG, Axis’ Zipstream technology for lower bandwidth and storage needs, and edge storage using microSD card. The main unit is powered with PoE. The sensor unit has a built in connector and a detachable cable (8 m/26 ft.) for easy installation and maintenance.
| Feature | AXIS P1245 Mk II | AXIS P1265 Mk II | AXIS P1275 Mk II | AXIS P1280-E | AXIS P1290-E |
|---|---|---|---|---|---|
| Max video resolution | 1920x1080 | 1920x1080 | 1920x1080 | 640x480 | 640x480 |
| Thermal sensor resolution | - | - | - | 208x156 | 208x156 |
| Horizontal field of view | 111 | 91 | 99 - 53 | 35.4 / 63 | 35.4 |
| Alarm inputs/outputs | - | - | - | - | - |
| Zipstream | ✔ | ✔ | ✔ | ✔ | ✔ |
| Image sensor | CMOS | CMOS | CMOS | Uncooled microbolometer | Uncooled microbolometer |
| Thermal sensitivity (NETD) | - | - | - | <100 mK | <100 mK |
