• 2.4 mm F2.1 with a 130° horizontal field of view, 2688x1512 (4 MP) to 320x240, Ensures high-quality color images in low light and balanced images in scenes with strong contrasts.

[/shortdesc]

[properties]

Product Name	AXIS M3086-V Mic Dome Camera
Description	The AXIS M3086-V Mic Dome Camera is a compact indoor surveillance camera offering 4 MP resolution and intelligent analytics. With a built-in microphone for audio detection and AXIS Audio Analytics support, it delivers high-quality video and audio with Lightfinder and Wide Dynamic Range (WDR) technologies, ensuring clear images in varied lighting conditions.
Resolution	2688x1512 (4 MP) for high-definition video capture
Optical Technology	Lightfinder and WDR for color images in low light and balanced contrast
Lens	2.4 mm, F2.1 with a wide 130° horizontal field of view
Audio Capability	Two-way (full duplex) audio with MEMS microphone for sound detection and analytics
Field of View	130° horizontal for wide-area indoor surveillance
Power Supply	Power over Ethernet (PoE) IEEE 802.3af/at, max 4.2 W
Dimensions	Diameter: 101 mm (4 in), Height: 48 mm (1.89 in)
Weight	150 g (0.33 lb)
Mounting Options	Ceiling or wall mount for unobtrusive indoor installation
Audio Analytics	Supports scream and shout detection for enhanced situational awareness
Deep Learning Analytics	Powered by DLPU for object detection and classification
Cybersecurity	Signed firmware and Axis Edge Vault for secure device identity protection
Usage	Ideal for discreet indoor surveillance in retail and office environments
Environmental Suitability	Indoor use, with discreet form factor for low-visibility monitoring
Compliance	RoHS, REACH, CE
Color	Axis standard white finish for blending into indoor spaces

[/properties]

[specifications]

Image Sensor	1/2.7” progressive scan RGB CMOS for clear imaging
Video Compression	H.264, H.265, and Motion JPEG with Zipstream for optimized storage and bandwidth
Audio Streaming	Full duplex (two-way) with built-in MEMS microphone
Temperature Range	Operates from 0 °C to 45 °C (32 °F to 113 °F)
Humidity Range	Supports 10% to 85% relative humidity (non-condensing)
Material Composition	Durable casing for long-term indoor use
Reliability	Tested for continuous 24/7 operation
Network Compatibility	Supports PoE IEEE 802.3af/at for power and data over a single Ethernet cable
Reliability Rating	MTBF-rated for high reliability in continuous operation
Firmware Updates	Supports secure remote firmware updates
Noise Reduction	Integrated noise reduction for clearer audio and video in low-light environments
Audio Compression	Supports AAC, G.711, G.726 for high-quality audio
Maintenance	Minimal; designed for reliable, long-term indoor operation	Factory-focused lens for quick installation without manual adjustments
Color Consistency	Standard Axis white finish to fit typical indoor settings
Mounting Type	Supports ceiling and wall mount for flexible installation
Log Retention	Allows for local storage of detected events
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
Edge Analytics	Deep learning processing unit (DLPU) for intelligent analytics on the edge
Installation Compatibility	Easy installation with PoE support and factory-focused lens

[/specifications]

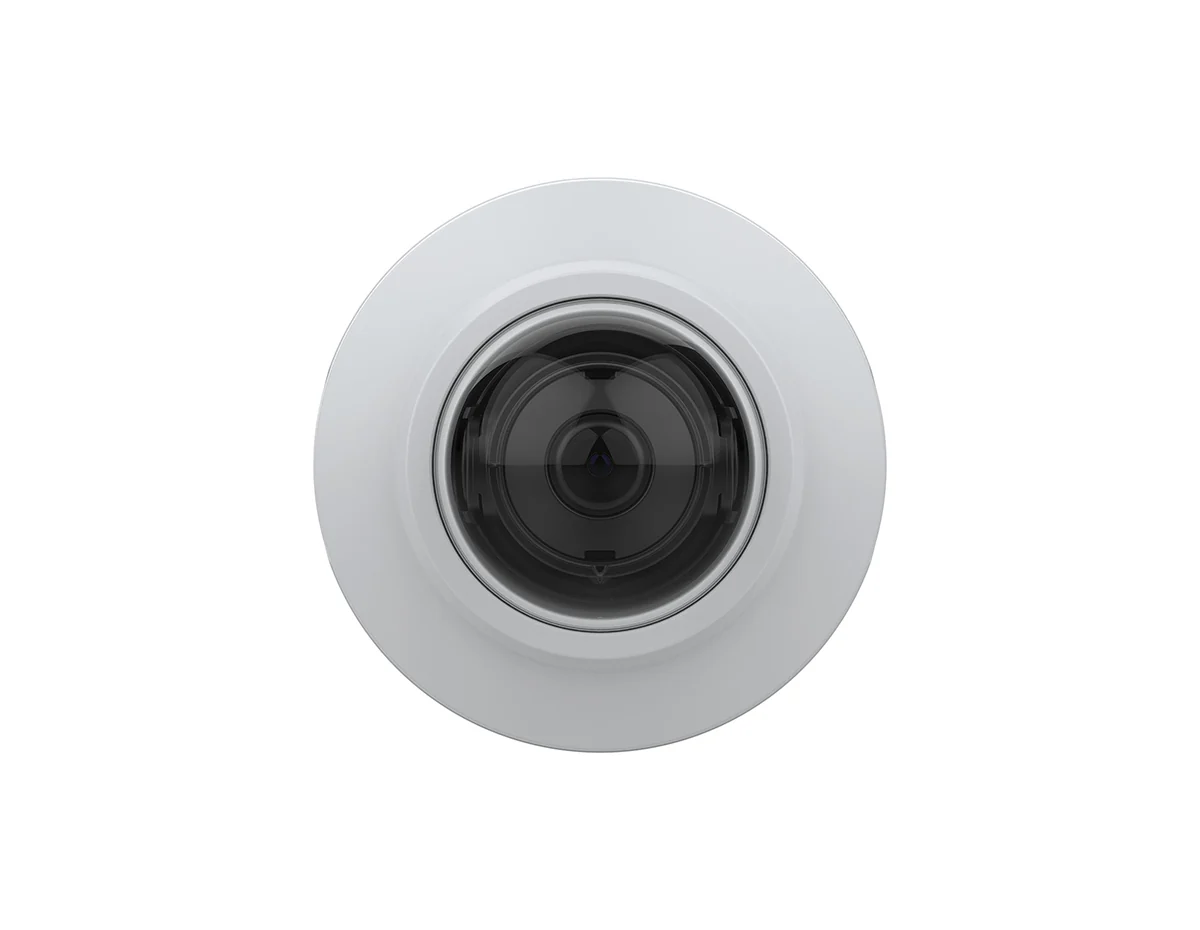

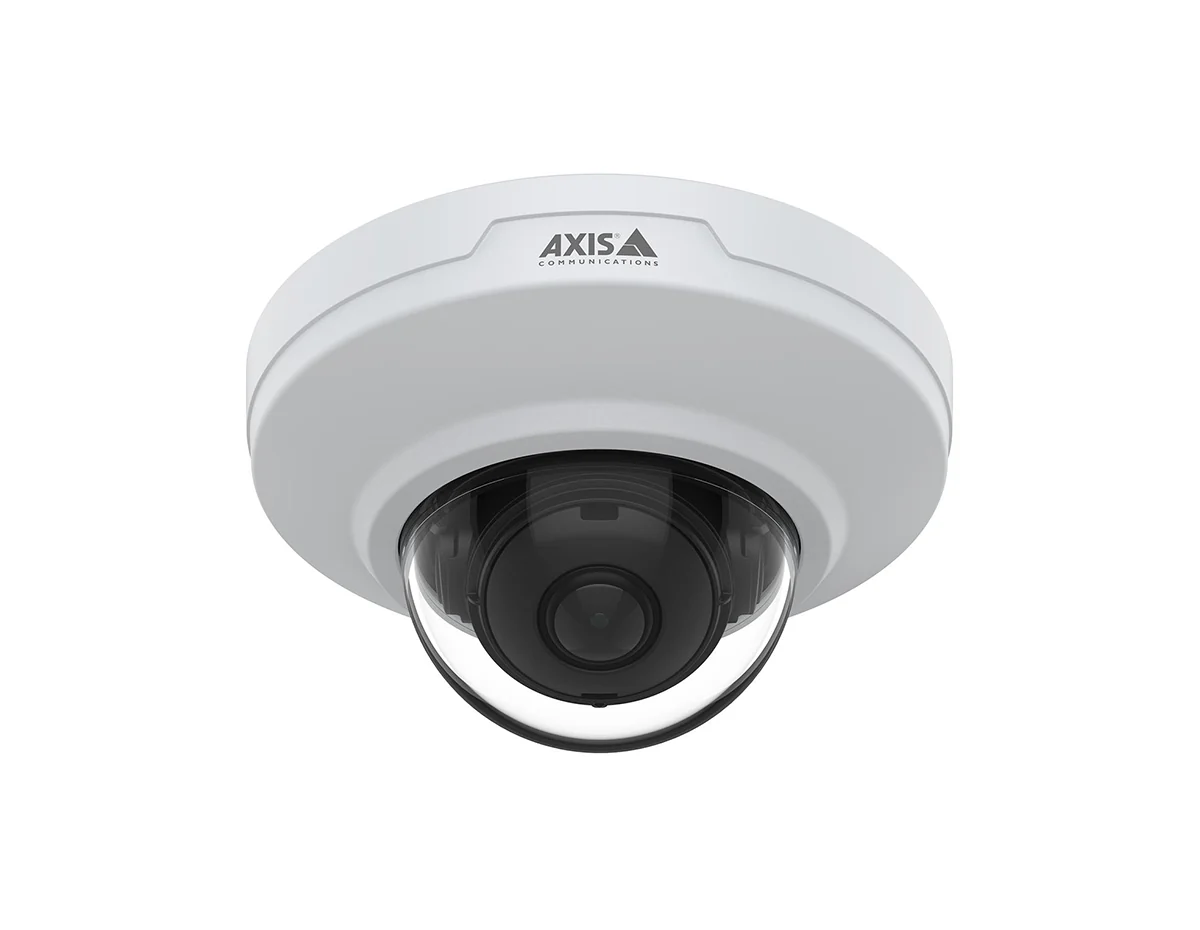

AXIS M3086-V Mic Dome Camera

The AXIS M3086-V Mic Dome Camera is a compact, cost-effective solution for indoor surveillance, offering 4 MP resolution and advanced analytics with deep learning capabilities. Equipped with a built-in microphone, this camera enables audio detection and supports AXIS Audio Analytics for sound classification. With a wide-angle view of 130°, Lightfinder technology, and Wide Dynamic Range (WDR), the camera ensures excellent image quality even in challenging lighting conditions. The deep learning processing unit (DLPU) enables intelligent object detection and classification at the edge, enhancing security and operational efficiency.

Key Features:

• 4 MP Resolution: Provides sharp, high-quality video with a wide-angle 130° field of view.
• Built-in Microphone: Supports two-way audio and enables audio analytics, such as scream and shout detection.
• Lightfinder and WDR: Ensures high-quality color images in low light and balanced images in scenes with strong contrasts.
• Deep Learning Analytics: Powered by a deep learning processing unit for enhanced object detection and classification.
• Compact and Discreet Design: Ideal for unobtrusive surveillance in indoor environments such as retail stores and offices.
• Cybersecurity Features: Includes Axis Edge Vault for secure identity protection and signed firmware for added security.

Technical Specifications:

• Image Sensor: 1/2.7” progressive scan RGB CMOS
• Lens: 2.4 mm, F2.1 with a 130° horizontal field of view
• Resolution: 2688x1512 (4 MP) to 320x240
• Video Compression: H.264, H.265, and Motion JPEG with Zipstream technology
• Audio Streaming: Two-way (full duplex) audio, MEMS microphone
• Power: PoE IEEE 802.3af/at, max 4.2 W
• Operating Conditions: 0 °C to 45 °C (32 °F to 113 °F)
• Dimensions: Diameter: 101 mm (4 in), Height: 48 mm (1.89 in)
• Weight: 150 g (0.33 lb)

For more information about the AXIS M3086-V Mic Dome Camera, visit the Axis product page.
