[shortdesc] 4K UHD resolution, 3.2-7.2mm varifocal lens, OptimizedIR 20m, Lightfinder 2.0, AI analytics, IK10/IP66 outdoor-rated [/shortdesc]

[properties]

Model	AXIS M4228-LVE
Product Type	8 MP Outdoor Network Dome Camera
Image Sensor	1/2.8" progressive scan RGB CMOS
Lens	Varifocal 3.2-7.2 mm, F1.6-2.7, IR-corrected, remote zoom & focus
Field of View	Horizontal 100-38°; Vertical 52-20°
Minimum Illumination	Color: 0.14 lux; B/W: 0.03 lux; 0 lux with IR
Shutter Speed	1/16000 s to 2 s
IR Illumination	OptimizedIR 850 nm, up to 20 m (66 ft)
Memory	2 GB RAM, 8 GB Flash
Video Compression	H.264, H.265, Motion JPEG
Max Resolution	3840×2160 (4K UHD)
Frame Rate	Up to 30 fps (at 60 Hz)
Power	PoE IEEE 802.3af/at/bt, max 12.9 W
Operating Temperature	-30 °C to 50 °C (-22 °F to 122 °F)
Storage Temperature	-40 °C to 65 °C (-40 °F to 149 °F)
IP Rating	IP66, NEMA 4X
IK Rating	IK10
Dimensions	120 × 80 × 120 mm (4.7 × 3.1 × 4.7 in)
Weight	540 g (1.2 lb)

[/properties]

[specifications]

Video Resolutions	16:9: 3840×2160 to 640×360; 4:3: 2592×1944 to 320×240
WDR	Forensic WDR up to 120 dB
Image Enhancements	Lightfinder 2.0, OptimizedIR, Zipstream, Privacy Masks
DORI (Detect/Observe/Recognize/Identify)	Detect: 87.5-203.6 m Observe: 34.7-80.8 m Recognize: 17.5-40.7 m Identify: 8.8-20.4 m
Network Protocols	IPv4/IPv6, HTTPS, TLS, FTP, SFTP, SMB, SMTP, SNMP v1/v2c/v3, NTP/NTS, RTP/RTSP/SRTP, DHCP, MQTT, LLDP, CDP
Security	Axis Edge Vault, Signed OS, Secure Boot, IEEE 802.1X, HSTS, Secure Keystore (FIPS 140-3 Level 3)
Analytics Included	AXIS Object Analytics, AXIS Audio Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Video Motion Detection
Event Triggers	Temperature alerts, motion, tampering, audio events, network loss, storage disruption
Event Actions	Recordings, notifications, overlay text, LED flash, MQTT publish
Storage	microSD/microSDHC/microSDXC, NAS support
Camera Adjustment	Pan ±180°, Tilt -10 to +65°, Rotation ±180°
IR Range	20 m (66 ft)
Certifications	UL/cUL, CE, EAC, FCC, RCM, BSMI, UKCA, TAA compliant

[/specifications]

[accesories]

Included	Camera, Weathershield, Installation guide, Connector guard, Cable gaskets, Owner authentication key
Optional - Installation	AXIS T8415 Wireless Installation Tool
Optional - Mounting	AXIS TM3601-E Conduit Back Box, AXIS TM4101 Pendant Kit
Optional - Storage	AXIS Surveillance Cards

[/accesories]

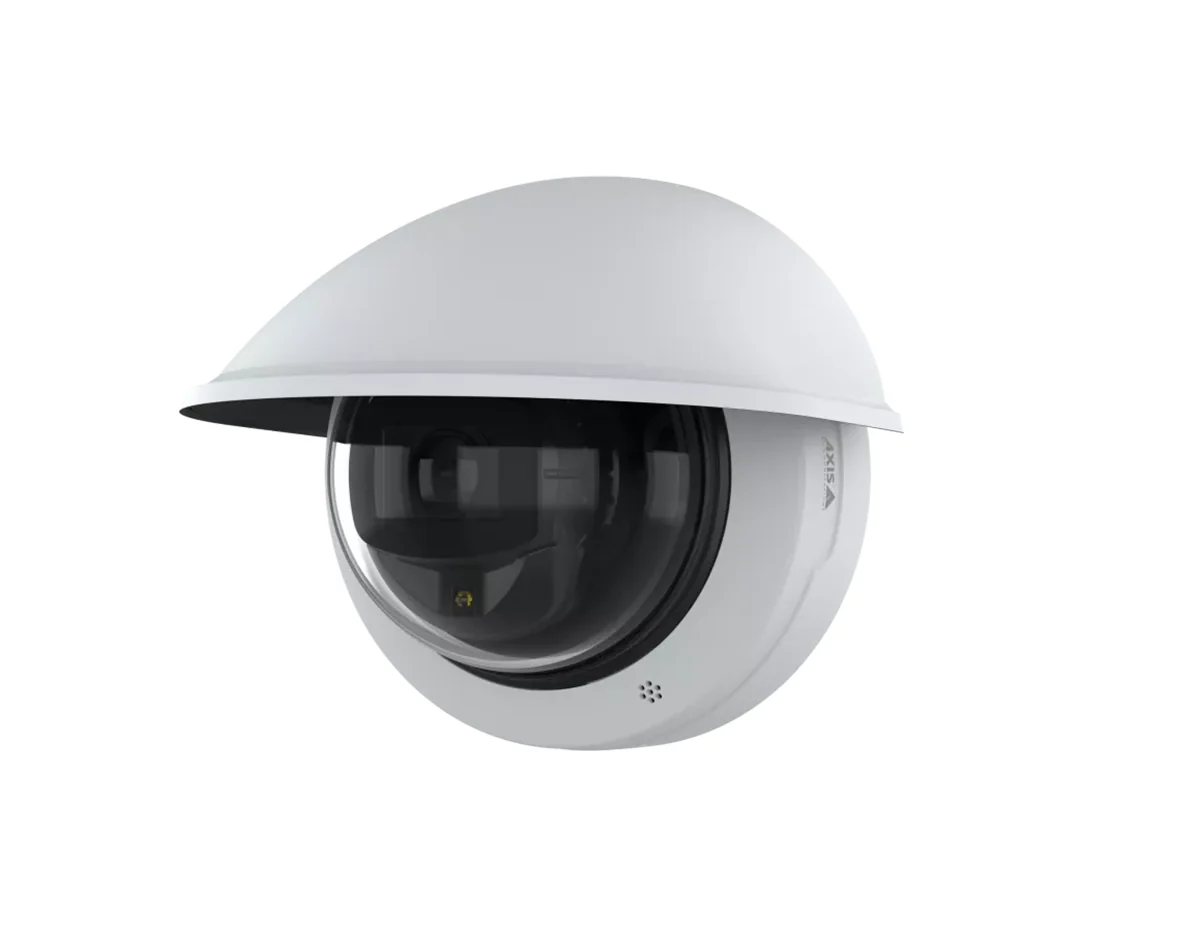

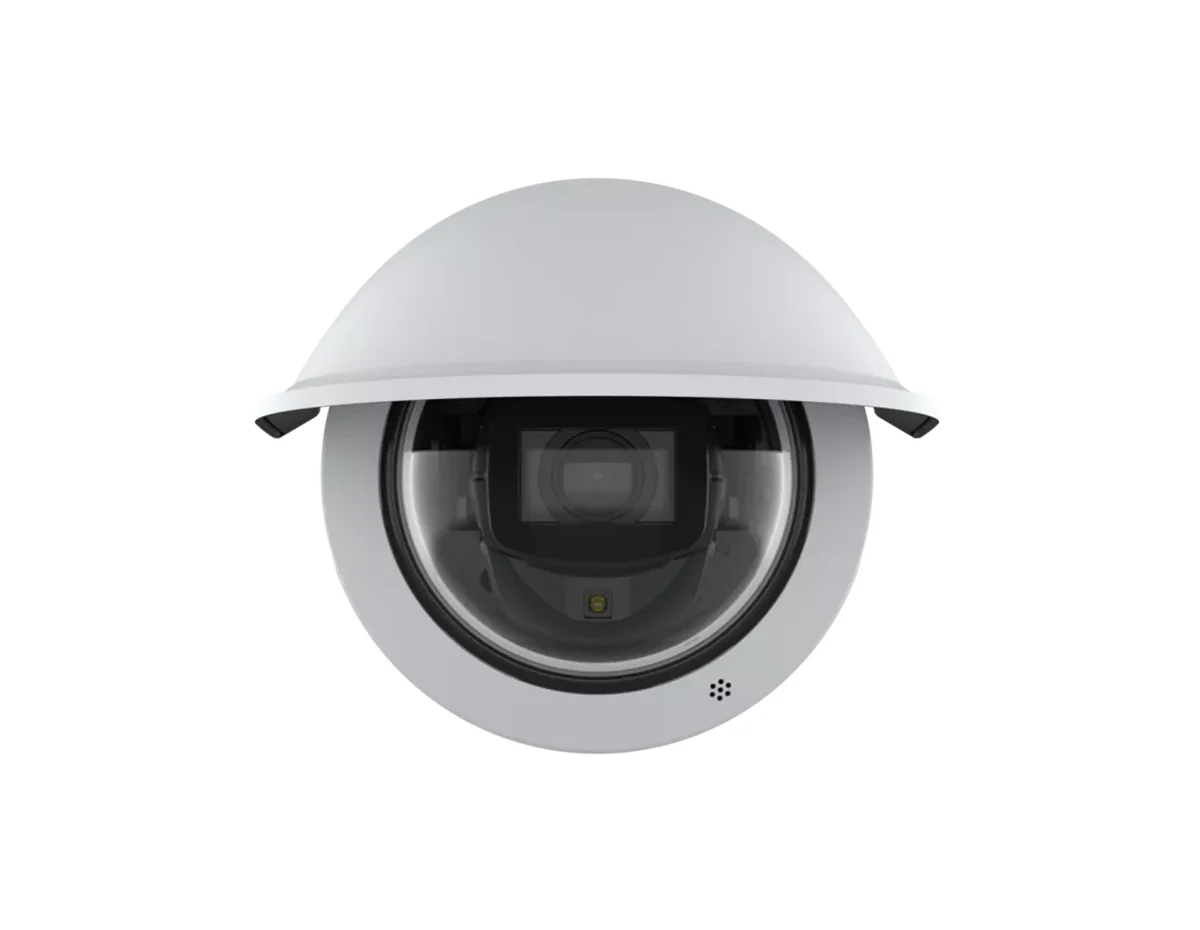

High-Accuracy 4K Surveillance with Advanced AI Security

The Axis M4228-LVE delivers 8 MP 4K clarity with exceptional low-light performance for demanding outdoor surveillance applications. Built on the powerful ARTPEC-8 SoC, it combines AI-driven analytics, Lightfinder 2.0, Forensic WDR and OptimizedIR to maintain image quality in challenging environments. Designed for long-term reliability, this IP66 and IK10-rated camera ensures operational uptime across harsh weather conditions.

Key Benefits & Features

• 4K Ultra-High Resolution: Capture detailed, forensic-quality video with an 8 MP sensor and up to 30 fps (at 60Hz) for accurate monitoring and evidence.
• OptimizedIR Illumination: Integrated 850 nm IR LEDs provide clear visibility up to 20 m (66 ft), delivering consistent clarity in total darkness.
• AI-Powered Analytics: Built-in AXIS Object Analytics (humans, vehicles) and AXIS Audio Analytics (scream, shout, glass break) detect and classify events for proactive protection.
• Superior Low-Light Performance: Lightfinder 2.0 and Forensic WDR deliver crisp, low-noise imagery while maintaining color accuracy in near darkness.
• Built-in Cybersecurity: Axis Edge Vault provides a hardware-based platform to safeguard the device, protect sensitive information and enable secure boot and storage.
• Rugged Outdoor Design: IP66, IK10 and NEMA 4X ratings ensure resistance to weather, dust and impact for demanding outdoor deployments.

Ideal Use Cases

• Commercial buildings requiring high-accuracy perimeter protection.
• Critical infrastructure needing AI-driven detection and analytics.
• Warehouses, industrial sites and logistics yards with low-light risk.
• Public spaces and transportation hubs requiring 24/7 surveillance.
• Retail and campus environments needing detailed 4K video evidence.

Technical Specifications

• Resolution: 4K UHD (3840 × 2160) at up to 30 fps
• Image Sensor: 1/2.8" progressive scan RGB CMOS
• Lens: 3.2-7.2 mm varifocal, F1.6-2.7 with remote zoom & focus
• Field of View: 100-38° horizontal, 52-20° vertical
• Minimum Illumination: 0.14 lux (color) at F1.6, 0 lux with IR
• IR Range: Up to 20 m (66 ft) with OptimizedIR
• Analytics: AXIS Object Analytics, Audio Analytics, Scene Metadata
• Network: IPv4/IPv6, HTTPS, SNMP, ONVIF Profiles G/M/S/T
• Power: PoE IEEE 802.3af/at/bt; max 12.9 W
• Durability: IP66, IK10, NEMA 4X; operating temperature -30 °C to 50 °C
