[shortdesc] 5MP resolution, 3.2–7.2mm varifocal lens, IR up to 20m, Lightfinder 2.0, Forensic WDR, IP66 IK10 [/shortdesc]

[properties]

Model	AXIS M4227-LVE
Product Type	5 MP Outdoor Network Dome Camera
Image Sensor	1/2.7" progressive scan RGB CMOS
Resolution	2592×1944 (4:3), 2688×1512 (16:9)
Lens Type	Varifocal 3.2–7.2 mm, F1.6–2.7
Horizontal Field of View	98° to 38°
Vertical Field of View	66° to 26°
Minimum Illumination	Color: 0.13 lux F1.6 (50 IRE); B/W: 0.03 lux; 0 lux with IR
IR Illumination	OptimizedIR, 850 nm, up to 20 m (66 ft)
Day/Night	Automatic IR-cut filter
WDR	Forensic WDR (up to 120 dB)
Lightfinder	Lightfinder 2.0
Signal-to-Noise Ratio	>55 dB
Optical Zoom	2.3×
Pan/Tilt/Rotation	Pan ±180°, Tilt -10° to +65°, Rotation ±180°
Storage	microSD/microSDHC/microSDXC; NAS support
Local Memory	2 GB RAM, 8 GB Flash
Video Compression	H.264, H.265, MJPEG
Power	PoE 802.3af/at/bt (Class 3), max 12.3 W; typical 3.1 W
Operating Temperature	-30°C to 50°C (-22°F to 122°F)
Start-up Temperature	-20°C (-4°F)
Humidity	10–100% (condensing)
Environmental Rating	IP66, NEMA 4X, IK10
Material	Plastic casing, polycarbonate dome
Dimensions	120 × 80 × 120 mm (4.7 × 3.1 × 4.7 in)
Weight	540 g (1.2 lb)

[/properties]

[specifications]

Video Resolutions	2688×1512 to 640×360 (16:9); 2592×1944 to 320×240 (4:3)
Frame Rate	Up to 25/30 fps in all resolutions
Video Streams	Up to 20 configurable streams
Analytics	AXIS Object Analytics, Audio Analytics, Image Health Analytics, Scene Metadata
Events	Audio detection, motion detection, line crossing, object in area, temperature events
Network Protocols	IPv4/IPv6, HTTPS, TLS, RTSP, RTP, SRTP, SFTP, CIFS/SMB, SNMP v1/v2c/v3, LLDP, MQTT, UPnP
Cybersecurity	Axis Edge Vault, Secure Boot, Signed OS, FIPS 140-3 Level 3 hardware module
Onvif Profiles	ONVIF Profiles G, M, S, T
IR Range	20 m (66 ft) or more depending on scene
DORI (Detect)	63.4 m (wide) / 147.6 m (tele)
DORI (Observe)	25.2 m / 59.6 m
DORI (Recognize)	12.7 m / 29.5 m
DORI (Identify)	6.3 m / 14.8 m
Approvals	UL/cUL, CE, EAC, VCCI, FCC Class A, ICES, BSMI, RCM
Environmental Tests	IEC 60068-2-1/2/6/14/27/78
Audio Sensor	Acoustic sensor with AI sound classification
SD Card Encryption	AES-XTS-Plain64 256-bit

[/specifications]

[accesories]

Included in the Box	Camera; Weathershield; Connector guard; Cable gaskets; Owner authentication key; Installation guide
Optional – Installation	AXIS T8415 Wireless Installation Tool
Optional – Mounting	AXIS TM3601-E Conduit Back Box; AXIS TM4101 Pendant Kit
Optional – Storage	AXIS Surveillance Cards

[/accesories]

Advanced Outdoor Surveillance with AI Precision

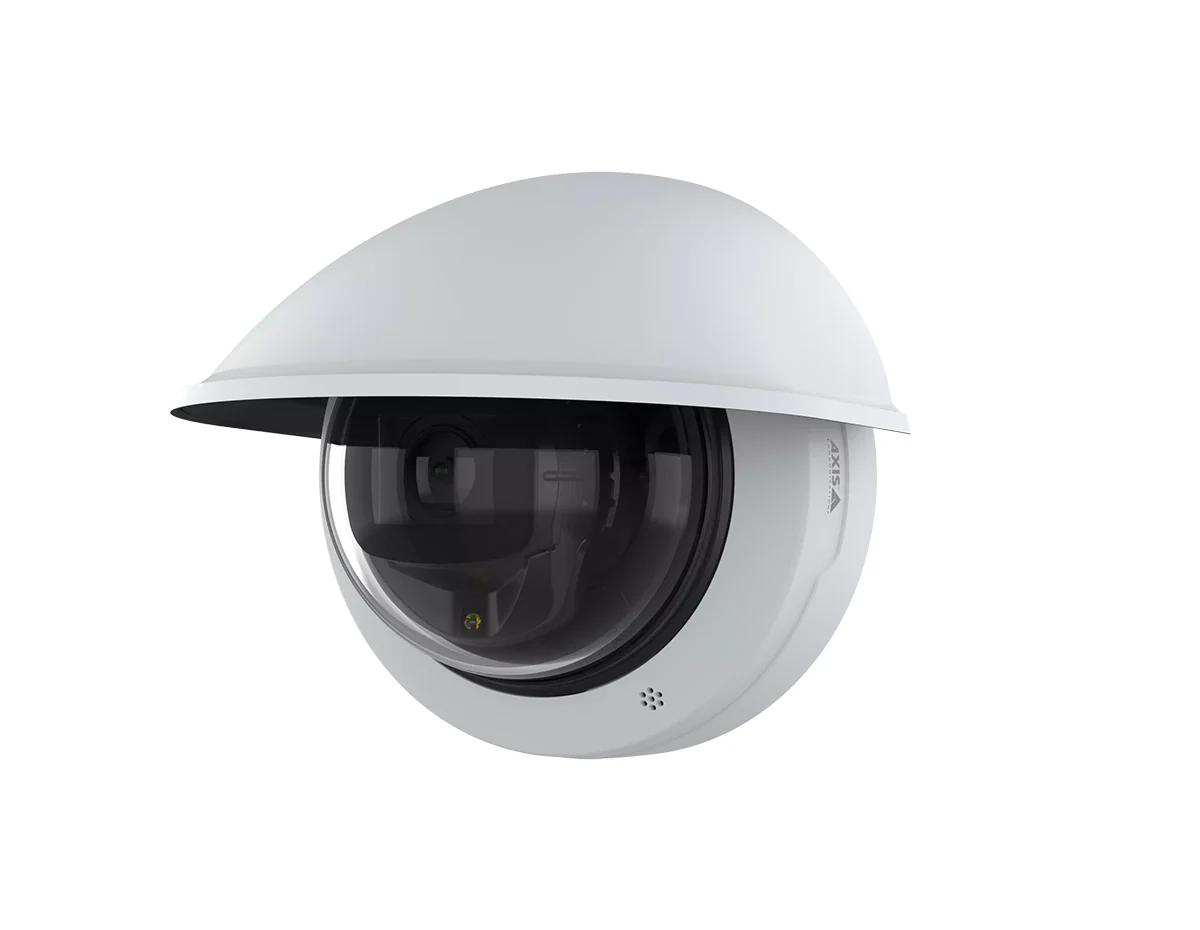

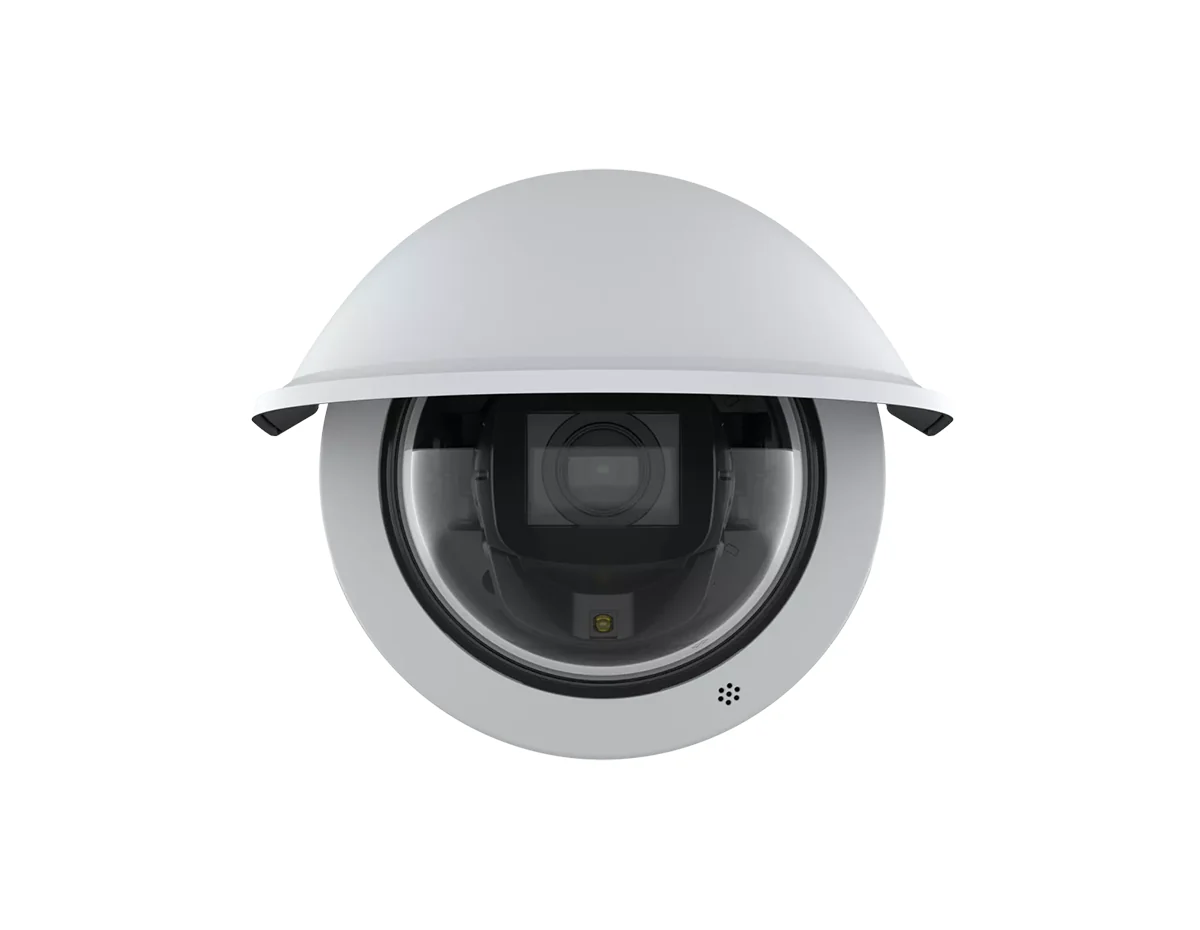

The Axis M4227-LVE Outdoor Network Dome Camera delivers exceptional 5 MP clarity, AI-powered analytics, and reliable performance in harsh environments. Powered by Lightfinder 2.0 and Forensic WDR, it captures detailed imagery in challenging lighting conditions, while OptimizedIR ensures superior visibility in complete darkness. Designed for enterprise-grade security, this compact dome camera combines advanced imaging, robust environmental durability, and high-efficiency H.265 streaming.

With AXIS Object Analytics and Axis Audio Analytics built in, it accurately identifies humans and vehicles, detects sound anomalies, and enhances situational awareness for proactive security operations.

Key Benefits & Features

• 5 MP image clarity: High-resolution monitoring captures critical details for precise identification and improved situational awareness.
• Varifocal lens with remote zoom/focus: Adjustable 3.2–7.2 mm optics provide flexible coverage, enabling optimized field of view without manual intervention.
• Enhanced low-light visibility: Lightfinder 2.0, Forensic WDR, and OptimizedIR deliver excellent color and contrast in near-darkness and high-contrast scenes.
• Edge-based AI analytics: Preinstalled AXIS Object Analytics and Audio Analytics classify objects, detect behaviors, and trigger real-time events.
• Rugged IP66/IK10 protection: Built to withstand rain, dust, impacts, and temperatures from -22°F to 122°F for dependable outdoor performance.

Ideal Use Cases

• Perimeter and gate monitoring for commercial and industrial facilities
• Parking lots, loading zones, and logistics yards requiring AI-driven object detection
• Campus and retail environments with variable lighting conditions
• Public areas needing durable, vandal-resistant dome surveillance
• Critical infrastructure demanding long-term, high-reliability video performance

Technical Specifications

• Resolution: 5 MP (2592 × 1944)
• Lens: 3.2–7.2 mm varifocal, F1.6–2.7, remote zoom/focus
• Field of View: 98°–38° horizontal, 66°–26° vertical
• IR Illumination: OptimizedIR, up to 20 m (66 ft)
• Minimum Illumination: 0.13 lux color, 0.03 lux B/W, 0 lux with IR
• Video Compression: H.264, H.265, MJPEG with Zipstream
• Operating Conditions: -22°F to 122°F (-30°C to 50°C)
• Durability: IP66, IK10, NEMA 4X rated
• Power: PoE IEEE 802.3af/at/bt, max 12.3 W
• Analytics: AXIS Object Analytics, Audio Analytics, Scene Metadata

Upgrade Your Security With Proven AI Performance

Strengthen your surveillance environment with advanced imaging and intelligent analytics—order now.
