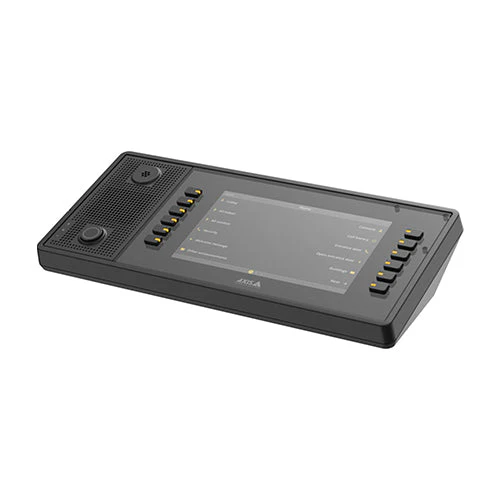

AXIS C6110 Network Paging Console (02709-001)
- Flexible, customizable paging solution, Enables live and prerecorded callouts, Reach all the audio zones you need, Web-configurable display, Two-way audio, Easy installation with PoE
| Product Name | AXIS C6110 Network Paging Console |
| Product Description | Flexible, customizable paging solution |
| Audio Capabilities | Live and prerecorded callouts; two-way audio communication |
| Display | 7-inch color LCD screen |
| Controls | Twelve physical buttons with status LEDs |
| Audio Input | Built-in beamforming microphone; XLR input for AXIS TC6901 Gooseneck Microphone; 3.5 mm input for headset |
| Audio Output | Built-in broadband speaker (42 mm diameter) |
| Network Connectivity | RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| Power Supply | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Installation Options | Desktop placement or wall mounting |
| Dimensions | 67 × 295 × 132 mm |
| Weight | 910 g |
| 0–50 °C | |
| Storage Temperature | −30 to 65 °C |
| Humidity | 10–85% RH condensing with storage 10–95% RH non-condensing |
| Compliance | CE, FCC, IC, RCM, VCCI, KC, UL, CB, IEC/EN/UL 62368-1 |
[specifications]
| Audio Features | Live paging, prerecorded messages, two-way communication with speakers and SIP devices |
| Microphone | Built-in microphone with beamforming provided by DSP; supports external AXIS TC6901 Gooseneck Microphone and headsets via 3.5 mm jack |
| Speaker | Built-in broadband speaker with a maximum sound pressure level of 80 dB |
| Display | 7-inch color LCD screen with web-configurable interface |
| Buttons | Twelve physical buttons with status LEDs; customizable for various functions |
| Network Interface | RJ45 connector supporting 10BASE-T/100BASE-TX/1000BASE-T PoE |
| Power Supply | Powered via PoE IEEE 802.3af/802.3at Type 1 Class 3 |
| Installation | Supports both desktop placement and wall mounting |
| Dimensions | Height: 66.33 mm (2.61 in); Width: 294.98 mm (11.61 in); Depth: 128.6 mm (5.06 in) |
| Weight | Approximately 1.2 kg (2.65 lb) |
| Operating Conditions | Temperature: 0 °C to 40 °C (32 °F to 104 °F); Humidity: 10–85% RH (non-condensing) |
| Storage Conditions | Temperature: -20 °C to 60 °C (-4 °F to 140 °F); Humidity: 5–95% RH (non-condensing) |
| Compliance | Certifications: CE, FCC, IC, RCM, VCCI, KC, UL, CB, IEC/EN/UL 62368-1 |
[/specifications]AXIS C6110 Network Paging Console complements your network speakers to create a complete public address system that enables live paging, prerecorded callouts, and two-way audio. Configure as many zones as needed in the web interface, using the expandable tree structure. Then, to page, navigate to the right zone using the console’s color LCD and twelve physical buttons. You can also configure buttons to trigger actions on other IoT devices – for example, doors or lights. The console can be wall-mounted or placed on a desktop, where you can use it as-is, with an external headset, or with AXIS TC6901 Gooseneck Microphone
