[shortdesc]

• Supports two-way audio communication, Power over Ethernet (PoE), Includes two configurable supervised inputs/digital outputs

[/shortdesc]



[properties]

Product Name	AXIS T6101 Mk II Audio and I/O Interface
Description	Compact interface adding audio and I/O capabilities to Axis cameras without built-in audio or I/O functionality, enhancing system versatility.
Two-Way Audio	Supports two-way audio communication, expanding surveillance functionality with real-time communication.
Configurable I/O Ports	Features two configurable supervised inputs/digital outputs for triggering actions and event management.
Portcast Technology	Uses the camera’s IP address to deliver audio and video in a single stream, simplifying network management.
Power over Ethernet (PoE)	Provides power and data over a single cable, simplifying installation.
Installation Flexibility	Compatible with the AXIS T94S01P Conduit Back Box for versatile mounting options.
Recommended Use	Ideal for adding audio and I/O capabilities to Axis cameras in systems needing two-way communication.
Audio Codecs	Supports various audio encodings including LPCM, AAC-LC, G.711 PCM for high-quality sound.
Power Supply	Powered via PoE IEEE 802.3af/802.3at Type 2 Class 4, eliminating the need for additional power cables.
Connectivity Options	PoE in and out via RJ45, audio in/out via 3.5 mm connectors, I/O via 4-pin 2.5 mm terminal block.
Temperature Range	Operates reliably in temperatures from −40°C to 50°C (−40°F to 122°F).
Humidity Range	Designed for 10–85% RH (non-condensing), suitable for varied indoor environments.
Compliance Standards	Meets EMC, safety, and environmental standards, including EN 55032 and IEC/EN/UL 62368-1.
Compact Design	Small footprint (89 × 63 × 29 mm), making it easy to integrate into existing setups.
PoE Efficiency	Supports PoE power efficiency, providing seamless integration with existing network infrastructure.

[/properties]

[specifications]

Audio Capabilities	Two-way audio streaming with configurable bitrate, supporting LPCM, AAC-LC, G.711 PCM, and more for flexibility.
I/O Interface	Includes two configurable supervised inputs/digital outputs, 12 V DC output with a max load of 50 mA.
Power Supply	PoE IEEE 802.3af/802.3at, Type 1 Class 2 or 3, simplifying power management.
Connectivity	PoE in and out via RJ45, audio in/out through 3.5 mm connectors, and I/O through 4-pin 2.5 mm terminal block.
Operating Temperature	Supports -40°C to 55°C (-40°F to 131°F) for a broad range of environmental conditions.
Humidity	Operates at 10–85% RH (non-condensing), suitable for controlled indoor settings.
Dimensions	89 × 63 × 29 mm (3 1/2 in x 2 1/2 in x 1 in), compact for easy placement.
Weight	100 g (0.22 lb), lightweight for flexible installation.
Audio Encoding Options	Supports LPCM, AAC-LC, G.711 PCM, providing high-quality audio streaming.
PoE Standards	Compliant with IEEE 802.3af and 802.3at for efficient power delivery.
Environmental Compliance	Designed to meet EMC, safety, and environmental certifications, including EN 55032 and IEC/EN/UL 62368-1.
Installation Compatibility	Can be mounted within the AXIS T94S01P Conduit Back Box for secure and organized setup.
Portcast Integration	Enables seamless audio and video streaming through Portcast technology, reducing network complexity.
Cable Management	Offers flexible connectivity through standard RJ45, 3.5 mm, and terminal block connectors.

[/specifications]

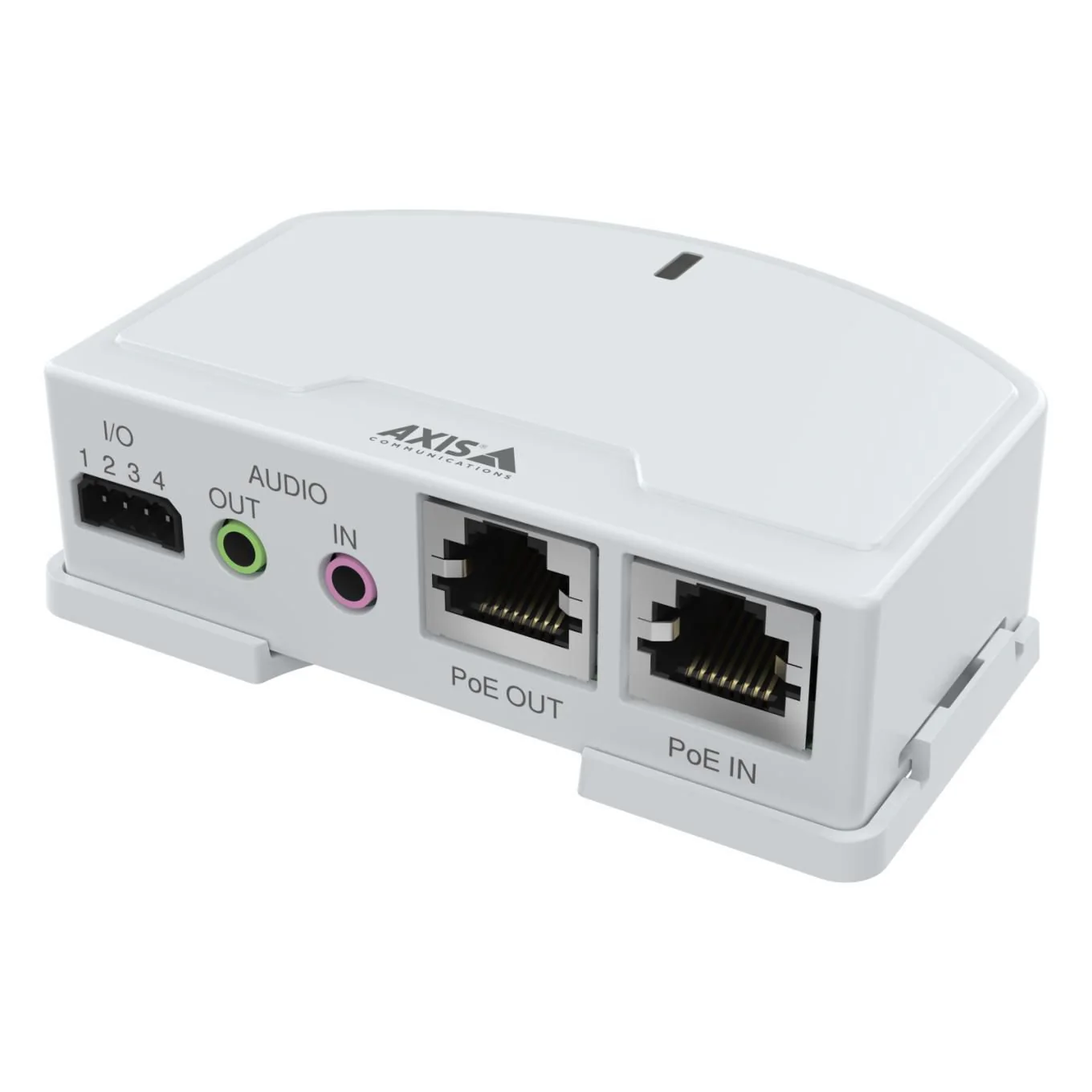

AXIS T6101 Mk II Audio and I/O Interface

The AXIS T6101 Mk II Audio and I/O Interface is a seamless solution that adds audio and I/O ports to your Axis cameras, enabling two-way audio and configurable I/O connectivity. This compact and cost-efficient device is designed to work with Axis cameras that do not have built-in audio and I/O functionality, using portcast technology to provide audio and video in one stream over the network. With its plug-and-play design, the Axis T6101 can be installed anywhere between the switch and the camera, delivering enhanced functionality exactly where it's needed.

Key Features:

• Two-Way Audio: Supports two-way audio communication, enhancing the versatility of your surveillance system.
• Configurable I/O Ports: Includes two configurable supervised inputs/digital outputs for various triggering actions and event management.
• Portcast Technology: Allows the use of the camera’s IP address to deliver audio and video in a single stream, reducing network complexity.
• Power over Ethernet (PoE): Simplifies installation with PoE, delivering power and data over a single cable.
• Designed for Flexibility: Can be mounted in the AXIS T94S01P Conduit Back Box, providing a versatile installation solution.

Technical Overview:

• Recommended for: Enhancing Axis cameras with audio and I/O capabilities in surveillance systems requiring two-way communication and advanced event management.
• Audio: Two-way audio streaming, configurable bitrate, supports various audio encodings including LPCM, AAC-LC, G.711 PCM, and more.
• I/O Interface: Two configurable supervised inputs/digital outputs, 12 V DC output (max load 50 mA).
• Power: Powered via Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 or 3.
• Connectivity: PoE in and out via RJ45, audio in/out via 3.5 mm connectors, I/O via 4-pin 2.5 mm terminal block.
• Operating Conditions: −40°C to 50°C (−40°F to 122°F), 10–85% RH (non-condensing).
• Dimensions: 89 × 63 × 29 mm (3 1/2 in x 2 1/2 in x 1 in)
• Weight: 100 g (0.22 lb).
• Compliance: EMC, safety, and environmental certifications including EN 55032, IEC/EN/UL 62368-1.

You can check the related tab for the Axis T6101 datasheet.
