[shortdesc]

• Stainless steel 8 MP dome for corrosive areas, Ideal for corrosive and harsh conditions, Marine-grade stainless steel casing, NSF/ANSI Standard 169 Certified, Outstanding image quality in 4K, Axis Edge Vault safeguards the device

[/shortdesc]

[properties]

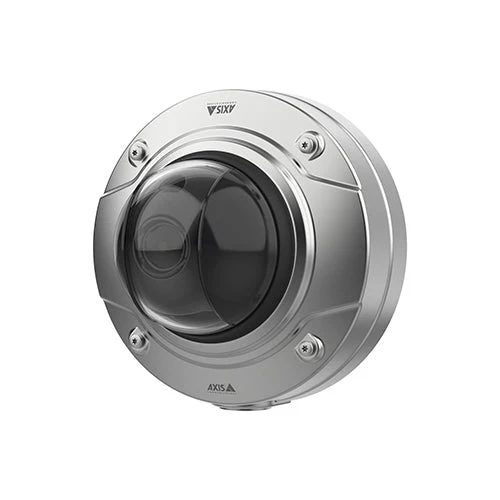

Properties	AXIS Q3538-SLVE Dome Camera
Description	The AXIS Q3538-SLVE Dome Camera is an 8 MP stainless steel camera designed for corrosive environments. Encased in marine-grade SS 316L, it's resistant to sea water and cleaning chemicals, and DNV-certified. Offering outstanding 4K resolution, it features a deep learning processing unit for advanced analytics like AXIS Object Analytics. With protection against redirection, defocusing, impacts, and built-in cybersecurity features, it's ideal for challenging conditions.
Product Family	AXIS Q3538-SLVE Dome Camera
Product Type	Camera

[/properties] [specifications]

Specifications	AXIS Q3538-SLVE Dome Camera
Camera
Image sensor	1/1.2” progressive scan RGB CMOS
	Pixel size 2.9 µm
Lens	Varifocal, 6.2–12.9 mm, F1.6–2.9
	Horizontal field of view: 103°–49°
	Vertical field of view: 56°–28°
	Varifocal, Remote focus and zoom, P-Iris control, IR corrected
Day and night	Automatically removable infrared-cut filter
Minimum illumination	Color: 0.07 lux at 50 IRE, F1.6
	B/W: 0 lux at 50 IRE, F1.6
Shutter speed	1/66500 s to 2 s
Camera angle adjustment	Pan ±180°, tilt -43 to +80°, rotation ±175°
System on chip (SoC)
Model	ARTPEC-8
Memory	2048 MB RAM, 8194 MB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	16:9: 3840x2160 to 160x90
	16:10: 1280x800 to 160x100
	4:3: 2880x2160 to 160x120
Frame rate	With WDR: 25/30 fps with power line frequency 50/60 Hz
	Without WDR: 50/60 fps with power line frequency 50/60 Hz
Video streaming	Multiple, individually configurable streams in H.264, H.265 and
	Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
	Low latency mode
	Video streaming indicator
WDR	Forensic WDR: Up to 120 dB depending on scene
Multi-view streaming	Up to 8 individually cropped out view areas
Image settings	Saturation, contrast, brightness, sharpness, white balance,
	day/night threshold, tone mapping , exposure mode, exposure
	zones, defogging, barrel distortion correction, electronic image
	stabilization, compression, rotation: 0°, 90°, 180°, 270° including
	Corridor Format, mirroring, text and image overlay, dynamic text
	and image overlay, privacy masks, polygon privacy mask
Image processing	Axis Zipstream, Forensic WDR, Lightfinder 2.0, OptimizedIR
Pan/Tilt/Zoom	Digital PTZ, optical zoom, preset positions
	Limited guard tour, control queue, on-screen directional indicator
	Tour recording (max 10, max duration 16 minutes each), guard
	tour (max 100)
	2x optical zoom
Audio
Audio streaming	Configurable duplex:
	Two-way (full duplex)
Audio encoding	24bit LPCM, AAC-LC 8/16/48 kHz, G.711 PCM 8 kHz, G.726
	ADPCM 8 kHz, Opus 8/16/48 kHz
	Configurable bit rate
Audio input/output	External microphone input or line input (balanced or unbalanced),
	line output, digital audio input, automatic gain control
	Microphone power:
	Microphone power 5V on tip, ring power 12V on ring,
	phantom power 12V on tip/ring
Network
Network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS
	Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),
	UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP,
	RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP,
	SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424,
	UDP/TCP/TLS), Link-Local address (ZeroConf)
System Integration
Application Programming Interface	Open API for software integration, including VAPIX®, metadata
	and AXIS Camera Application Platform (ACAP); specifications at
	axis.com/developer-community. ACAP includes Native SDK and
	Computer Version SDK.
	One-click cloud connection (O3C)
	ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
	ONVIF® Profile T
Video management systems	AXIS Companion, AXIS Camera Station
Onscreen controls	Electronic image stabilization
	Day/night shift
	Defogging
	Wide dynamic range
	Video streaming indicator
	IR illumination
	Heater
Event conditions	Analytics, external input, supervised external input, edge storage
	events, virtual inputs through API
	Audio: audio detection, audio clip playing
	Call: state, state change
	Device status: above operating temperature, above or below
	operating temperature, below operating temperature, IP address
	removed, network lost, new IP address, shock detected, casing
	open, storage failure, system ready, within operating temperature
	Digital audio: digital signal contains Axis metadata, digital signal
	has invalid sample rate, digital signal missing, digital signal okay
	Edge storage: recording ongoing, storage disruption, storage
	health issues detected
	I/O: digital input, manual trigger, virtual input
	MQTT subscribe
	MQTT: stateless
	Scheduled and recurring: schedule
	Video: tampering, average bitrate degradation, day-night mode,
	live stream open
Event actions	I/O: toggle I/O once, toggle I/O while the rule is active
	Record video: SD card and network share
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
	share and email
	Pre- and post-alarm video or image buffering for recording or
	upload
	Notification: email, HTTP, HTTPS, TCP and SNMP trap
	Calls: end SIP call, make SIP call, answer call
	MQTT publish
	Overlay text, external output activation, play audio clip, zoom
	preset, day/night mode, make call, flash status LED, use lights,
	set defog mode, send MQTT publish message, set WDR mode
Built-in installation aids	Pixel counter, adjustable IR illumination intensity
Analytics
AXIS Object Analytics	Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
	Scenarios: line crossing, object in area, crossline counting,
	occupancy in area, time in area
	Up to 10 scenarios
	Metadata visualized with trajectories, color-coded bounding
	boxes and tables
	Polygon include/exclude areas
	Perspective configuration
	ONVIF Motion Alarm event
Metadata	Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates
	Attributes: Vehicle color, upper/lower clothing color, confidence, position
	Event data: Producer reference, scenarios, trigger conditions
Applications	Included
	AXIS Object Analytics
	AXIS Video Motion Detection, active tampering alarm, audio
	detection
	Supported
	Support for AXIS Camera Application Platform
Approvals
Product markings	BIS, CE, DNV, NSF, KC, RCM, UL/cUL, UKCA, VCCI, WEEE
Supply chain	TAA compliant
EMC	CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035,
	EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2
	Australia/New Zealand: RCM AS/NZS CISPR 32 Class A
	Canada: ICES-3(A)/NMB-3(A)
	Japan: VCCI Class A
	USA: FCC Part 15 Subpart B Class A
	Railway: IEC 62236-4
Safety	CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1,
	IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252
Environment	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6,
	IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78,
	IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 60529 IP68,
	ISO 20653 IP6K9K, IEC/EN 62262 IK11 (50J), NEMA 250 Type 4X,
	NEMA TS 2 (2.2.7-2.2.9)
Network	NIST SP500-267
Cybersecurity
Edge security	Software: Signed firmware, brute force delay protection, digest
	authentication and OAuth 2.0 RFC6749 OpenID Authorization
	Code Flow for centralized ADFS account management, password
	protection, AES-XTS-Plain64 256bit SD card encryption
	Hardware: Axis Edge Vault cybersecurity platform
	TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC
	EAL 6+), system-on-chip security (TEE), Axis device ID, secure
	keystore, signed video, secure boot, encrypted filesystem
	(AES-XTS-Plain64 256bit)
Network security	IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR,
	HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509
	Certificate PKI, IP address filtering
Documentation	AXIS OS Hardening Guide
	Axis Vulnerability Management Policy
	Axis Security Development Model
	AXIS OS Software Bill of Material (SBOM)
General
Casing	IP6K9K-, IP66-, IP67-, IP68- and NEMA 4X-rated, IK11 (50 joules)
	impact-resistant stainless steel casing
	Polycarbonate hard-coated dome and dehumidifying membranes
	Electropolished SS 316L stainless steel
	Encapsulated electronics
	Captive stainless steel screws
Mounting	Mounting bracket with junction box holes (double-gang,
	single-gang, 4” square, and 4” octagon)
	¾” (M25) conduit side entry
Power	Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
	Typical 9 W, max 23 W
	10–28 V DC, typical 9 W, max 24 W
Connectors	Audio: 3.5 mm mic/line in, 3.5 mm line out
	I/O: Terminal block for two configurable supervised inputs /
	digital outputs (12 V DC output, max load 50 mA)
	Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
	Power: DC input
IR illumination	OptimizedIR with power-efficient, long-life 850 nm IR LEDs
	Range of reach 40 m (130 ft) or more depending on the scene
Storage	Support for microSD/microSDHC/microSDXC card
	Support for SD card encryption (AES-XTS-Plain64 256bit)
	Recording to network-attached storage (NAS)
Operating conditions	(-50 °C to 55 °C (-58 °F to 131 °F)
	Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
	(165 °F)
	Start-up temperature: -40 °C (-40 °F)
	Humidity 10–100% RH (condensing)
Storage conditions	(-40 °C to 65 °C (-40 °F to 149 °F)
	Humidity 5-95% RH (non-condensing)
Dimensions	Height: 125 mm (4.9 in)
	195 mm (7.7 in)
Weight	2.2 kg (4.9 lb)
Box content	Installation guide, Windows®
	decoder 1-user license, drill
	template, terminal block connectors for DC and I/O, RESISTORX®
	L-key, connector guard, Diameter 5-15mm cable gaskets, Diameter 3-5mm cable
	gasket, mounting bracket, plugs
System tools	AXIS Site Designer, AXIS Device Manager, product selector,
	accessory selector, lens calculator
Languages	English, German, French, Spanish, Italian, Russian, Simplified
	Chinese, Japanese, Korean, Portuguese, Polish, Traditional
	Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Sustainability
Substance control	PVC free
	RoHS in accordance with EU RoHS Directive 2011/65/EU/ and
	EN 63000:2018
	REACH in accordance with (EC) No 1907/2006. For SCIP UUID,
Environmental responsibility	axis.com/environmental-responsibility
	Axis Communications is a signatory of the UN Global Compact

[/specifications] [accesories]

Optional accessories

• AXIS TQ3807-E Dome Smoked • AXIS TQ3807-E Dome Clear • AXIS T91F61 Wall Mount • AXIS T91F67 Pole Mount • AXIS T94U02D Pendant Kit with weathershield • AXIS T94U01D Pendant Kit • AXIS Multicable B I/O Audio Power • AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards

[/accesories]

Advanced fixed dome camera in a DNV marine certified, electropolished stainless steel (SS 316L) outdoor casing, offering high corrosion resistance and IK10+ (50 joules) vandal resistance, with Deep Learning Processing Unit (DLPU). Support for Forensic WDR, Lightfinder 2.0 and OptimizedIR. IR shielded dome for reduced reflections. Varifocal 6-13 mm P-Iris lens with remote zoom and focus. Electronic Image Stabilization. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 8MP stream up to 60 fps, 30fps with WDR. AXIS Object Analytics, Video motion detection and tampering alarm. Two-way audio and audio detection. Supervised digital input / digital output for alarm / event handling. Sensors for intrusion and shock. MQTT support. AXIS Edge Vault with FIPS certified TPM for added cyber security. MicroSD memory card slot for local storage. Operation in -50 ºC to 60 ºC (-58 ºF to 140 ºF), powered by IEEE 802.3at Type 2 Class 4 (PoE+) or 10-28V DC power with redundancy. Includes mounting bracket for wall/ceiling or junction boxes.

Feature	AXIS Q3536-LVE	AXIS Q3538-LVE	AXIS Q3538-SLVE
Max video resolution	2688x1512	3840x2160	3840x2160
Horizontal field of view	103 - 52 / 14.9 - 40.8	103 - 48	103.4 - 48.6
Lightfinder	Lightfinder 2.0	Lightfinder 2.0	Lightfinder 2.0
OptimizedIR	✔	✔	✔
Wide dynamic range	Forensic WDR	Forensic WDR	Forensic WDR
Two-way audio	✔	✔	✔
Alarm inputs/outputs	2	2	2
Remote zoom	✔	✔	✔
Remote focus	✔	✔	✔
Zipstream	✔	✔	✔
Electronic image stabilization	✔	✔	✔
Analytics compute capability	DLPU	DLPU	DLPU
TPM	✔	✔	✔
Axis Edge Vault	✔	✔	✔
Vandal rating	IK10+	IK10+	IK11
