• Pre-installed software for managing allowlists and blocklists, providing seamless vehicle access control, Captures high-quality video for reliable license plate recognition, Varifocal 3.4–8.9 mm F1.8, with horizontal FOV of 100°–36°.

[/shortdesc]

[properties]

Product Name	AXIS P3245-LVE-3 License Plate Verifier Kit
Description	The AXIS P3245-LVE-3 License Plate Verifier Kit is an all-in-one vehicle access control solution that includes a fixed dome HDTV 1080p camera with pre-installed AXIS License Plate Verifier software. Optimized for automatic license plate recognition (LPR), it enables efficient access management with allowlists and blocklists, eliminating the need for servers and reducing bandwidth.
Resolution	1920x1080 (HDTV 1080p) for high-quality video capture
Optical Technology	OptimizedIR with effective illumination range of 15 m (50 ft) or more depending on scene conditions
Lens	Varifocal 3.4–8.9 mm, F1.8, horizontal field of view: 100°–36°
Detection Range	Supports license plate detection from 2.0 to 7.0 meters (6.6 to 23 ft)
Vehicle Speed	Supports detection of vehicles moving up to 30 km/h (19 mph)
Power Supply	Power over Ethernet (PoE) IEEE 802.3af/at, max 11.3 W
Dimensions	Height: 104 mm (4.09 in), Diameter: 149 mm (5.87 in)
Weight	800 g (1.8 lb)
Weather Resistance	IP66/IP67-rated for protection against harsh weather conditions
Impact Resistance	IK10-rated for vandal resistance
Data Storage	Allows list and blocklist management stored directly on the camera
Integration Compatibility	Compatible with Axis network door controllers and VMS
Usage	Ideal for vehicle access control in gated communities, parking lots, and restricted areas
Color	Standard Axis white finish for professional installations
Compliance	RoHS, REACH, CE
Environmental Suitability	Designed for outdoor use in various weather conditions

[/properties]

[specifications]

Image Sensor	1/2.8” progressive scan RGB CMOS
Bandwidth Optimization	Axis Zipstream technology supporting H.264 and H.265 for reduced bandwidth
Low-Light Performance	OptimizedIR for improved visibility in low-light and nighttime conditions
Temperature Range	Tested for reliable operation from -40 °C to 50 °C (-40 °F to 122 °F)
Humidity Range	Supports up to 100% relative humidity in outdoor conditions
Material Composition	Constructed with durable materials suitable for outdoor and high-traffic areas
System Security	Supports HTTPS encryption, secure boot, and signed firmware for cybersecurity
Reliability Rating	MTBF-rated for high reliability in continuous operation
Noise Reduction	Integrated noise reduction for clear imaging in low-light environments
Maintenance	Minimal maintenance; designed for reliable, long-term outdoor use
Firmware Updates	Supports secure remote firmware updates
Mounting Options	Supports wall, pole, and ceiling mounting with compatible accessories
Color Finish	White finish consistent with Axis camera line	Factory-focused lens for quick installation without manual adjustments
Installation Compatibility	Easily integrates with Axis systems for vehicle access and monitoring
Event Storage	Stores access event logs directly on the camera for easy access control auditing
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
Noise Level	Passive cooling design for silent operation
Data Processing	Optimized for efficient LPR data handling and access control
Log Retention	Supports local storage of recent access events for auditing purposes

[/specifications]

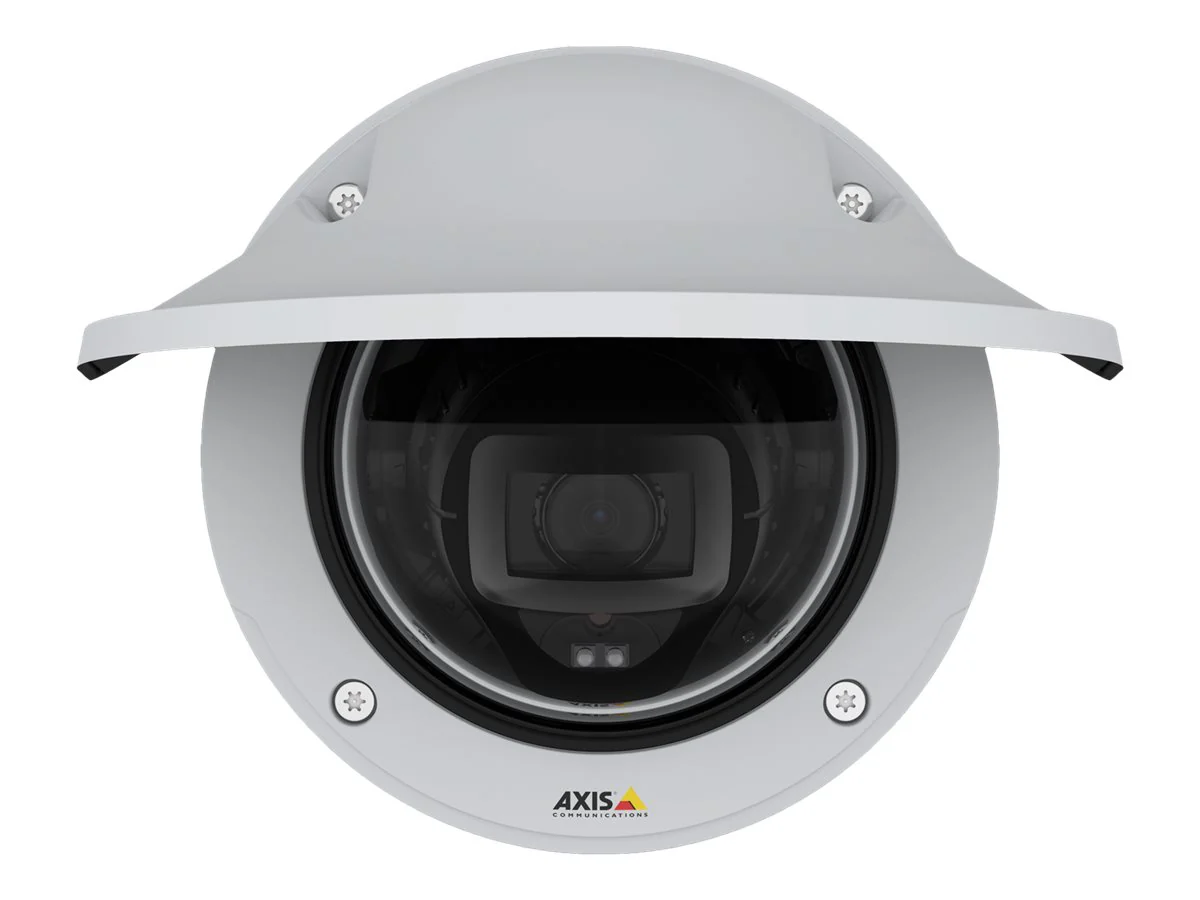

AXIS P3245-LVE-3 License Plate Verifier Kit

The AXIS P3245-LVE-3 License Plate Verifier Kit is an all-in-one solution designed for efficient vehicle access control. It includes an HDTV 1080p fixed dome camera with AXIS License Plate Verifier pre-installed, enabling automatic license plate recognition (LPR) and verification. This kit allows you to manage access based on allowlists and blocklists stored directly in the camera, eliminating the need for expensive servers and reducing bandwidth usage. Equipped with OptimizedIR, the camera provides reliable license plate detection up to approximately 15 m (50 ft), depending on scene conditions. The system integrates seamlessly with video management systems (VMS) and Axis network door controllers for more advanced access control scenarios.

Key Features:

• 1080p HDTV Resolution: Captures high-quality video for reliable license plate recognition.
• OptimizedIR Technology: Ensures clear visibility of license plates in complete darkness with IR illumination.
• Built-in License Plate Verifier: Pre-installed software for managing allowlists and blocklists, providing seamless vehicle access control.
• Vandal- and Weather-Resistant Design: IK10-rated and IP66/IP67-rated for impact and weather protection.
• System Integration: Compatible with Axis network door controllers and VMS for enhanced security and management.

Technical Specifications:

• Image Sensor: 1/2.8” progressive scan RGB CMOS
• Lens: Varifocal 3.4–8.9 mm, F1.8, with horizontal FOV of 100°–36°
• Detection Range: 2.0 to 7.0 meters (6.6 to 23 ft)
• Vehicle Speed: Up to 30 km/h (19 mph)
• Power: Power over Ethernet (PoE) IEEE 802.3af/at, max 11.3 W
• Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
• Dimensions: Height: 104 mm (4.09 in), Diameter: 149 mm (5.87 in)
• Weight: 800 g (1.8 lb)

For more information about the AXIS P3245-LVE-3 License Plate Verifier Kit, visit the Axis product page.

This product has reached its end-of-life. The recommended replacement model is P3265-LVE (02812-001)
