• Adds sensor and audio capabilities to existing network video systems, 512 MB RAM and 512 MB Flash, Includes two audio-in ports and one audio-out port for microphone and speaker connections.

[/shortdesc]

[properties]

Product Name	AXIS D3110 Connectivity Hub
Description	The AXIS D3110 Connectivity Hub enhances network video systems by enabling secure integration of non-visual sensors and audio capabilities. Supporting protocols like VAPIX®, MQTT, and SIP, it provides eight configurable I/O ports and high-quality audio connections. Built-in cybersecurity features ensure system integrity, making it ideal for applications requiring additional sensor and audio integration.
System on Chip (SoC)	i.MX 6ULL for efficient processing
Memory	512 MB RAM, 512 MB Flash
Audio Support	Two audio-in ports supporting 5 V unbalanced or 12 V balanced phantom-powered microphones, and 12 V digital/line-in; one audio-out port.
I/O Ports	Eight supervised, configurable I/O ports for sensor integration and control
Protocol Compatibility	VAPIX®, MQTT, SIP for seamless system integration
Cybersecurity	Signed firmware, secure boot, and Axis Edge Vault for enhanced protection
Audio Encoding	Supports LPCM, AAC-LC, G.711, G.726, Opus for high-quality audio
Power Supply	Power over Ethernet (PoE) IEEE 802.3af/at Type 1 Class 3 or 10–28 V DC, max 13.5 W.
Operating Temperature	-40 °C to 65 °C (-40 °F to 149 °F), suitable for varied conditions
Dimensions	Height: 42.2 mm (1.7 in), Width: 99 mm (3.9 in), Depth: 117.8 mm (4.6 in)
Weight	392 g (0.9 lb)
Installation Type	Plug-and-play setup for easy integration with existing systems
Usage	Suitable for security, monitoring, and smart building applications
Color	Black (NCS S 9000-N) finish
Compliance	RoHS and REACH compliant

[/properties]

[specifications]

Supported Protocols	VAPIX®, MQTT, SIP for compatibility with Axis and third-party systems
Audio Encoding	Supports LPCM, AAC-LC, G.711, G.726, Opus for clear audio communication
Power Consumption	Max power consumption of 13.5 W under full load
Ingress Protection	Indoor-rated, designed for network cabinets or controlled environments
Temperature Tolerance	Tested for reliable performance in temperatures from -40 °C to 65 °C
Humidity Range	Supports non-condensing humidity levels between 10% and 95%
Material Composition	Durable materials for long-term indoor usage
Data Security	Includes Axis Edge Vault, signed firmware, and secure boot for cybersecurity
Network Compatibility	Compatible with PoE IEEE 802.3af/at for power and network integration
Reliability	Tested for continuous operation in varied environmental conditions
Noise Level	Passive operation with silent performance
Mounting Options	Wall, surface, and network cabinet mounting supported
Color Consistency	White finish to match Axis hardware
Firmware Updates	Supports remote firmware updates for ongoing security
Compliance	CE, FCC, UL certified for network installation
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
Maintenance	Minimal maintenance; designed for reliable, long-term usage

[/specifications]

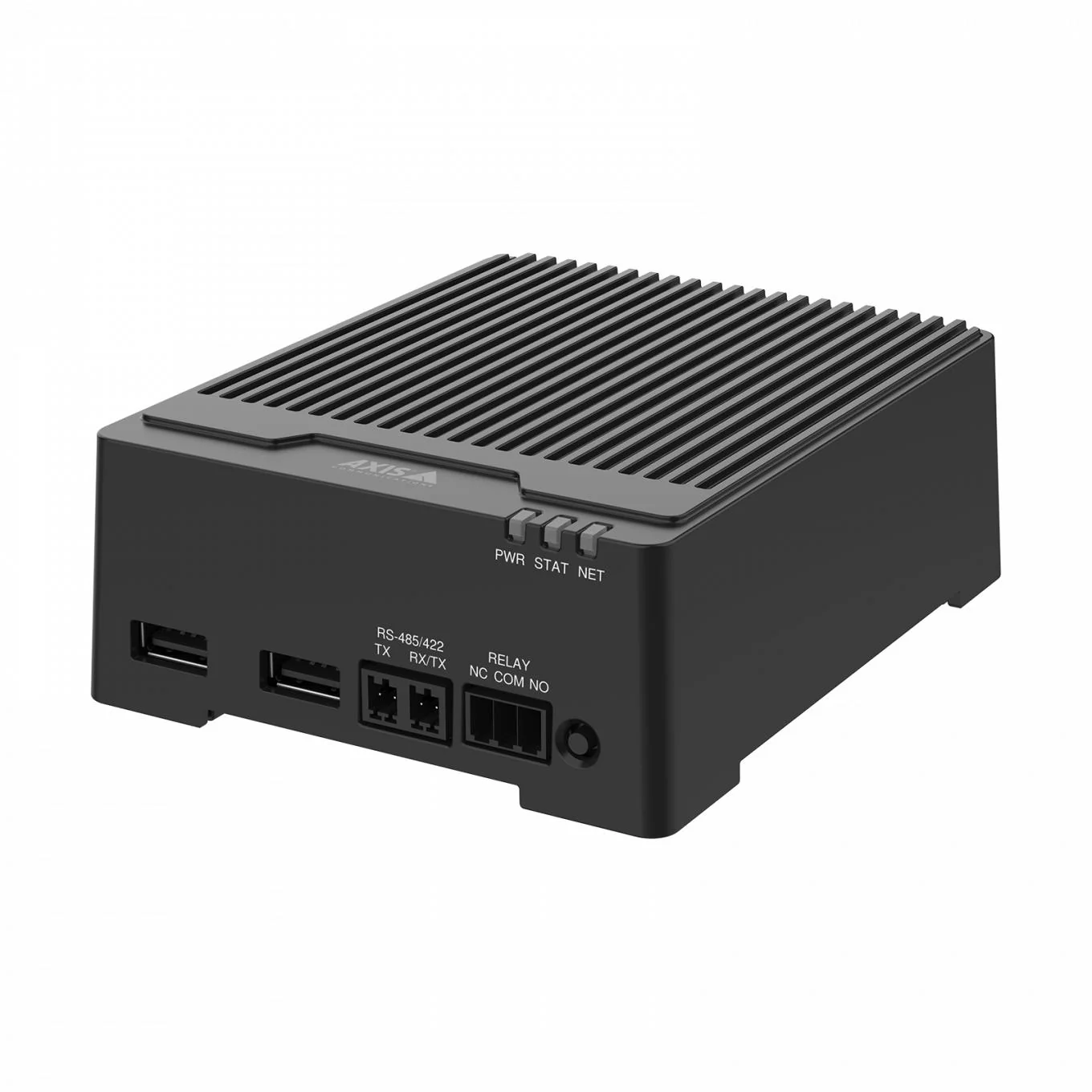

AXIS D3110 Connectivity Hub

The AXIS D3110 Connectivity Hub enhances network video systems by providing secure sensor and audio integration. This versatile hub connects non-visual sensors to trigger alarms and events, while also supporting high-quality audio through microphones and speakers. Designed for integration with Axis end-to-end solutions, it supports multiple protocols such as VAPIX®, MQTT, and SIP for seamless communication. With built-in cybersecurity features, the AXIS D3110 ensures secure and reliable integration in surveillance systems, making it ideal for various applications where additional sensor and audio capabilities are needed.

Key Features:

• Secure Sensor and Audio Integration: Adds sensor and audio capabilities to existing network video systems, enabling efficient alarm triggering and audio communication.
• Multiple I/O Ports: Features eight supervised configurable I/Os for connecting sensors and controlling devices.
• High-Quality Audio Support: Includes two audio-in ports and one audio-out port for microphone and speaker connections, with support for two-way, full-duplex audio.
• Seamless Integration: Supports VAPIX®, MQTT, and SIP protocols for integration with Axis and third-party systems.
• Built-In Cybersecurity: Includes features such as signed firmware, secure boot, and Axis Edge Vault to protect against unauthorized access and ensure system integrity.

Technical Specifications:

• System on Chip (SoC): i.MX 6ULL
• Memory: 512 MB RAM, 512 MB Flash
• Audio Encoding: LPCM, AAC-LC, G.711, G.726, Opus
• Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at or 10–28 V DC, max power consumption 13.5 W
• Operating Conditions: -40 °C to 65 °C (-40 °F to 149 °F)
• Dimensions: Height: 42.2 mm (1.7 in), Width: 99 mm (3.9 in), Depth: 117.8 mm (4.6 in)
• Weight: 392 g (0.9 lb)

For more information about the AXIS D3110 Connectivity Hub, visit the Axis product page.

This product has been discontinued.
