[shortdesc]

• Delivers data at speeds of 10/100/1000 Mbps, Input 100 to 240 V AC 47–63 Hz, Output 56 V DC up to 30 W.

[/shortdesc]

[properties]

Product Name	Axis 30 W Midspan
Description	Reliable midspan providing up to 30 W of power to one network device, compatible with IEEE 802.3af and IEEE 802.3at standards.
PoE Compatibility	Supports IEEE 802.3af (15 W) and IEEE 802.3at (30 W) standards for flexible power delivery.
High Data Rate	Supports data transfer speeds of 10/100/1000 Mbps for fast and stable connectivity.
Wide Input Range	Accepts AC input voltage from 100 to 240 V, compatible with various global installations.
Easy Installation	Plug-and-play design with automatic PoE detection and front panel LED indicators for easy monitoring.
Versatile Design	Ideal for environments requiring a simple and effective PoE power solution for network devices.
Recommended Use	Suitable for powering Axis network devices in varied indoor environments.
Power Output	Delivers 56 V DC, up to 30 W, ensuring compatibility with high-power PoE devices.
Temperature Resilience	Operates from -20 °C to 40 °C at 30 W, extending up to 55 °C at 15 W.
Mounting Options	Supports wall, shelf, or DIN rail mounting (DIN rail mount sold separately).
Durability	Constructed to operate in a wide temperature range for reliable performance.

[/properties]

[specifications]

Power Input	100 to 240 V AC, 47–63 Hz for global compatibility.
Power Output	56 V DC, up to 30 W in compliance with IEEE 802.3at (Type 2).
Data Rate	10/100/1000 Mbps, ensuring high-speed data transmission.
Operating Temperature	-20 °C to 40 °C (-4 °F to 104 °F) at 30 W; up to 55 °C (131 °F) at reduced 15 W output.
Dimensions	30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in), compact for easy integration.
Weight	145 g (0.3 lb), lightweight for flexible mounting.
LED Indicators	Front panel LEDs for power and connectivity status monitoring.
PoE Standards	Supports both IEEE 802.3af and IEEE 802.3at, providing flexibility across device types.
Mounting Flexibility	Can be wall-mounted, shelf-mounted, or DIN rail mounted (optional accessory for DIN rail).
Material and Design	Durable construction for reliable performance in varied indoor conditions.

[/specifications]

[accesories]

Included Accessories

Mains IEC-C13 cable.

[/accesories]

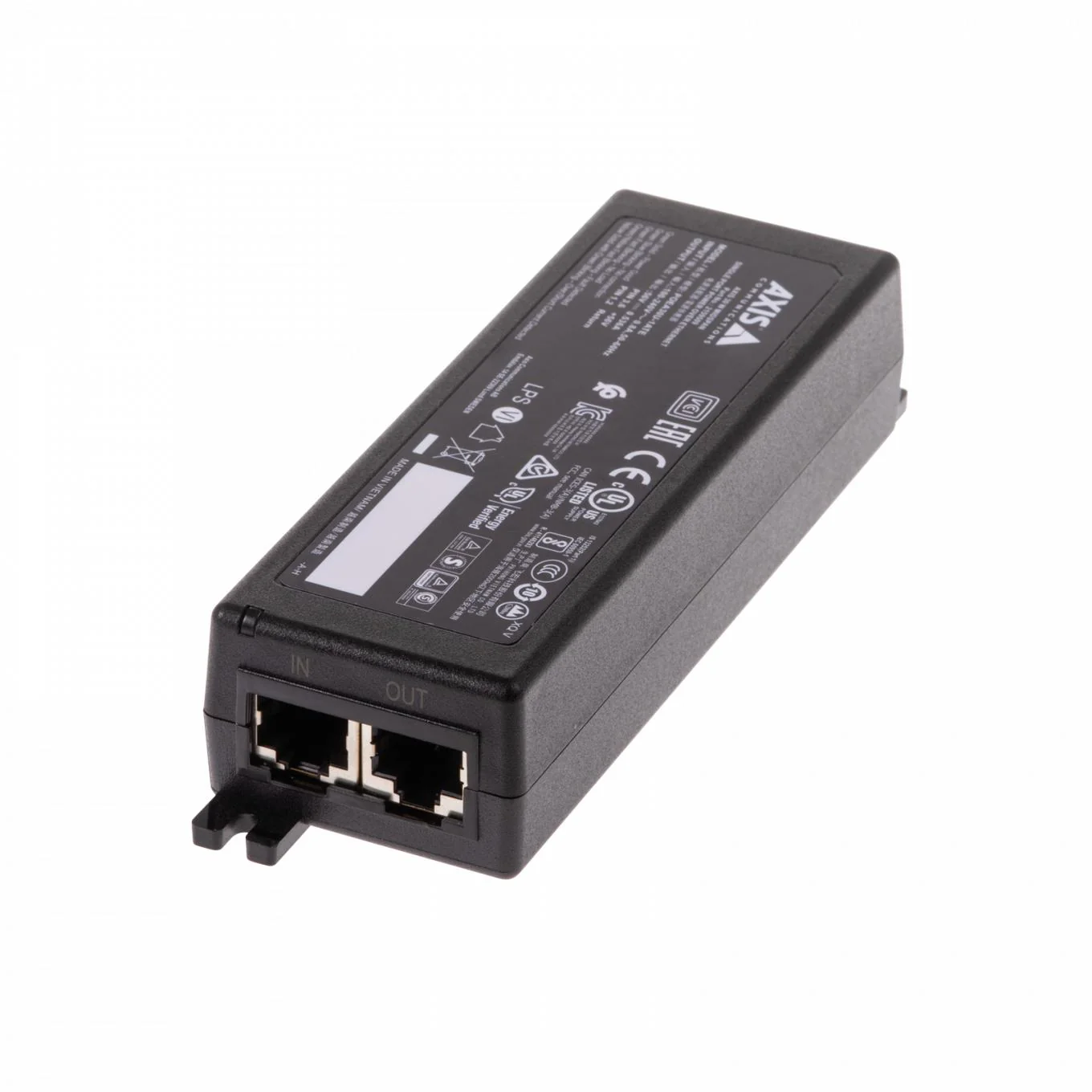

Axis 30 W Midspan

The Axis 30 W Midspan is a reliable and efficient power solution designed to deliver up to 30 W of power to one network device. Compliant with IEEE 802.3af (15 W) and IEEE 802.3at (30 W) standards, it ensures compatibility with most Axis network products that support PoE. This midspan provides a simple, cost-effective way to power network devices through a single Ethernet cable, injecting both power and data without the need to replace existing Ethernet switches or cabling infrastructure. With its plug-and-play design, installation is quick and easy.

Key Features:

• PoE Compatibility: Supports both IEEE 802.3af and IEEE 802.3at standards, providing up to 30 W of power.
• High Data Rate: Delivers data at speeds of 10/100/1000 Mbps, ensuring fast and reliable connectivity.
• Wide Input Range: Operates with an AC input voltage of 100 to 240 V, making it versatile for various installations.
• Easy Installation: Plug-and-play design with automatic PoE detection and front panel LED indicators for power and connectivity status.
• Durable Design: Built to operate in a wide temperature range and withstand harsh environmental conditions.

Technical Overview:

• Recommended for: Powering network devices in environments where a simple, reliable PoE solution is required.
• Power Input: 100 to 240 V AC, 47–63 Hz.
• Power Output: 56 V DC, up to 30 W according to IEEE 802.3at standards.
• Data Rate: 10/100/1000 Mbps.
• Operating Conditions: -20 °C to 40 °C (-4 °F to 104 °F) at 30 W; -20 °C to 55 °C (-4 °F to 131 °F) at 15 W.
• Dimensions: 30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in).
• Weight: 145 g (0.3 lb).
• Mounting Options: Wall, shelf, or DIN rail (optional accessory).
• Included Accessories: Installation guide, Mains IEC-C13 cable.

You can check the related tab for the Axis 30 W Midspan datasheet.
