[shortdesc]

• Supports distances up to 1000 m (3280 ft), Compatible with a wide range of PoE and PoE+ devices, Data Rate: 100 Base-TX 10 Base-T

[/shortdesc]

[properties]

Product Name	AXIS Long Range PoE Extender Kit
Description	The AXIS Long Range PoE Extender Kit is a compact and cost-effective solution for extending Ethernet and PoE connections up to 1000 m (3280 ft), allowing for flexible network installations in indoor environments. It supports IEEE 802.3af and IEEE 802.3at PoE devices, providing a simple and efficient way to increase network reach without additional infrastructure.
Data Rate	100 Base-TX, 10 Base-T
Maximum Distance	Up to 1000 m (3280 ft)
Connector Type	RJ45, 2-pin DC power
Power Input	PoE (IEEE 802.3af Type 1 Class 3) or PoE+ (IEEE 802.3at Type 2 Class 4), DC power 57 V
Power Output	PoE (IEEE 802.3af Type 1 Class 3) or PoE+ (IEEE 802.3at Type 2 Class 4)
Dimensions	120 mm x 36 mm x 23 mm (4.7 in x 1.4 in x 0.9 in)
Weight	100 g (0.2 lb)
Usage	Ideal for extending network reach in indoor installations
Durability	Designed for reliable indoor performance

[/properties]

[specifications]

Supported Standards	IEEE 802.3af, IEEE 802.3at, NEMA TS 2
Network Cables	Compatible with CAT5e and CAT6 cables
Certifications	EMC, Safety, NEMA TS 2, RoHS compliant
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
EMC Compliance	Complies with EN 55032, EN 55024, and FCC Part 15 standards
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	Max 85% (non-condensing)
Power Consumption	Powered by PoE, no additional power source required
Reliability	Tested for continuous operation over extended distances
Bandwidth Optimization	Maintains full-rate data throughput across extended distance
Firmware Updates	Not applicable
Monitoring and Diagnostics	Real-time link monitoring supported through compatible network devices
Security Features	Standard network security through PoE and DC power connections

[/specifications]

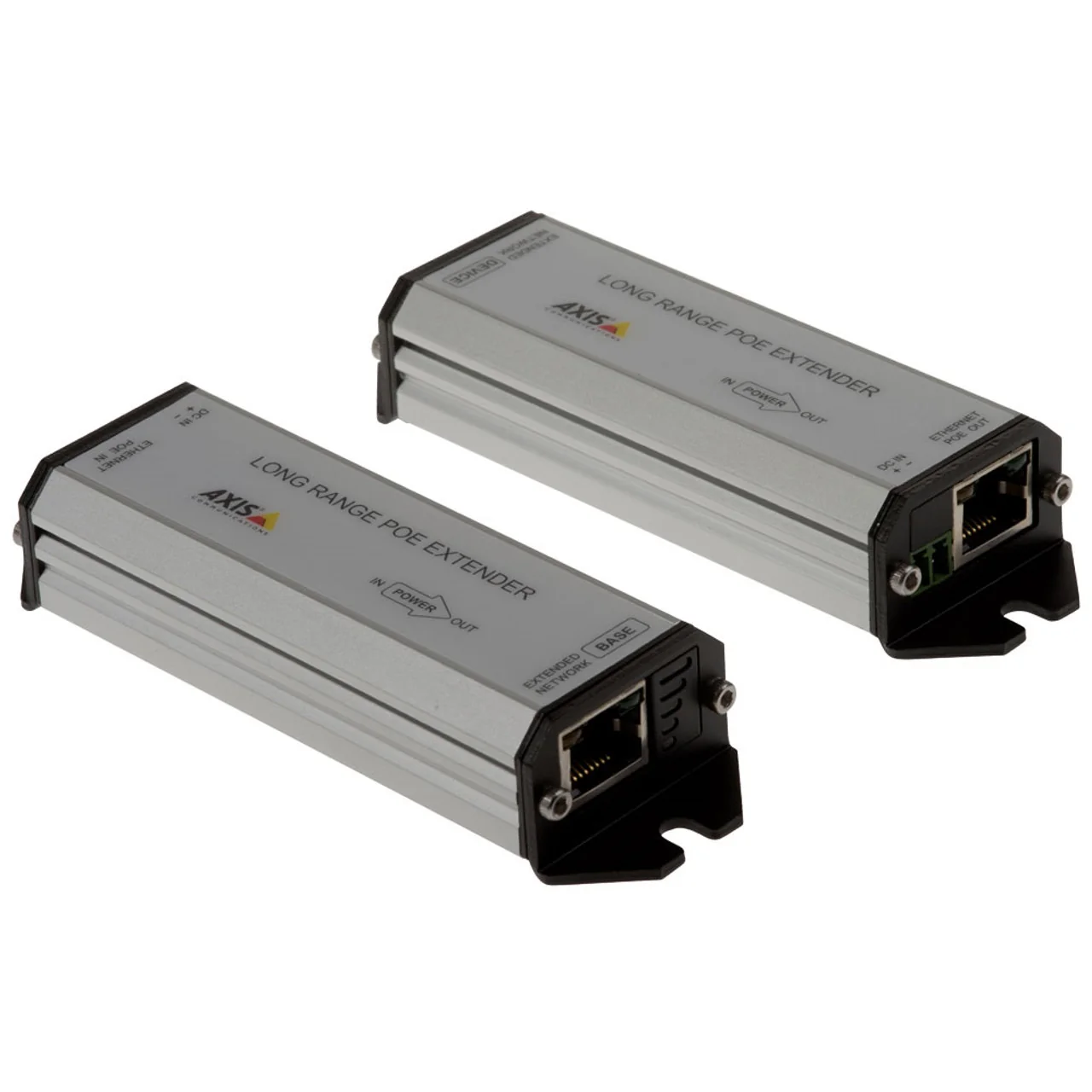

AXIS Long Range PoE Extender Kit

The AXIS Long Range PoE Extender Kit is a compact and efficient solution designed to extend the reach of your network and Power over Ethernet (PoE) connections. This kit enables the installation of Axis network devices at distances beyond the standard 100 m (328 ft) Ethernet cable limit, supporting up to 1000 m (3280 ft). It is compatible with IEEE 802.3af and IEEE 802.3at PoE devices, providing flexibility for various indoor network setups. The design ensures reliable performance in standard indoor environments, offering extended reach with minimal infrastructure requirements.

Key Features:

• Extends Ethernet and PoE Connections: Supports distances up to 1000 m (3280 ft), allowing for flexible installations.
• IEEE 802.3af and IEEE 802.3at Support: Compatible with a wide range of PoE and PoE+ devices.
• Reliable Indoor Design: Optimized for indoor environments with consistent performance.
• Cost-Efficient Solution: Eliminates the need for additional network infrastructure, reducing overall installation costs.
• NEMA TS 2 Compatible: Ensures stable operation and compliance for professional installations.

Technical Specifications:

• Data Rate: 100 Base-TX, 10 Base-T
• Maximum Distance: Up to 1000 m (3280 ft)
• Connectors: RJ45, 2-pin DC power
• Network Cables: CAT5e, CAT6
• Power Input: PoE (IEEE 802.3af Type 1 Class 3) or PoE+ (IEEE 802.3at Type 2 Class 4), DC power 57 V
• Power Output: PoE (IEEE 802.3af Type 1 Class 3) or PoE+ (IEEE 802.3at Type 2 Class 4)
• Operating Conditions: -40 °C to 70 °C (-40 °F to 158 °F), max humidity 85% (non-condensing)
• Dimensions: 120 x 36 x 23 mm (4.7 x 1.4 x 0.9 in)
• Weight: 100 g (0.2 lb)
• Approvals: EMC, Safety, NEMA TS 2, Environment

For more information about the AXIS Long Range PoE Extender Kit, visit the Axis product page.
