[shortdesc]

• The AXIS T91A23 Tile Grid Ceiling Mount provides a flexible and non-invasive mounting solution for Axis cameras on various drop-ceiling systems. Sold as a 4-piece pack, it ensures secure and efficient installations.

[/shortdesc]

[specifications] [/specifications]

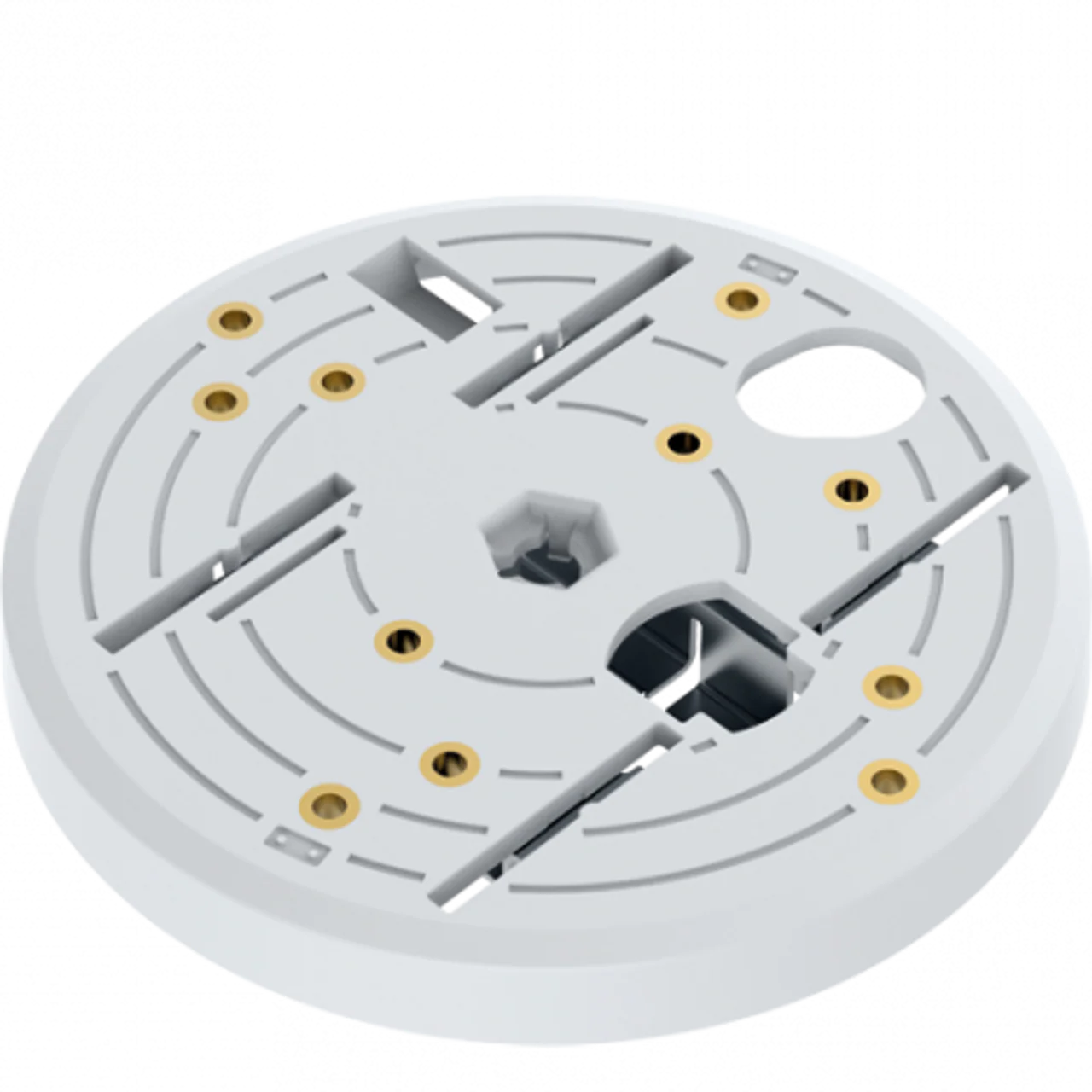

AXIS T91A23 4 Pieces Tile Grid Ceiling Mount (01612-001)

The AXIS T91A23 Tile Grid Ceiling Mount is an innovative mounting accessory designed for drop-ceiling installations. Ideal for environments such as retail, banking, and education, it securely attaches Axis cameras to tile grids without drilling or damaging ceiling tiles. This 4-piece pack allows for quick camera repositioning along the grid rails, adapting to changing surveillance needs. Compatible with a wide range of Axis cameras, it offers ease of installation and reliable performance in indoor settings.

Key Features:

• Non-Invasive Installation: Mounts securely to ceiling grids without the need for drilling.
• Flexible Compatibility: Supports T-bar rails of 15 mm, 24 mm, and 35 mm widths.
• Secure Attachment: Compatible with AXIS Safety Wire for enhanced stability.
• Versatile Usage: Designed for square and tegular edge ceiling tiles (maximum depth of 10 mm).
• Wide Camera Support: Directly compatible with various Axis camera models, including AXIS M and P series.

Technical Specifications:

• Material: Durable plastic casing, white (NCS S 1002-B)
• Load Capacity: Supports up to 4.4 lb
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Dimensions: Height: 23.5 mm (0.9 in), Diameter: 111.5 mm (4.4 in)
• Weight: 76 g (0.17 lb
• Environmental Approvals: IEC/EN 62368-1, PVC-free construction
• Included Accessories: Installation guide, mounting screws, locking screws, UNC mounting screw
