[shortdesc]

• Affordable flat-faced 4 MP dome with IR, 4 MP video quality, Forensic WDR, Lightfinder and IR illumination, Zipstream supporting H.264 and H.265, Signed firmware and secure boot, Flat-faced design suppressing light reflections

[/shortdesc]

[properties]

Properties	AXIS M3116-LVE Network Camera
Description	The AXIS M3116-LVE is an affordable 4 MP dome camera with IR illumination, ideal for both indoor and outdoor surveillance. Featuring Forensic WDR, Lightfinder, and a flat-faced design to suppress light reflections, it delivers clear and sharp video even in challenging light conditions. With enhanced security features, flexible installation, and Axis Zipstream supporting H.264/H.265, it ensures high-quality video with reduced bandwidth and storage needs.
Product Family	AXIS M3116-LVE Network Camera
Product Type	Network Camera

[/properties] [specifications]

Specifications	AXIS M3116-LVE Network Camera
Camera
Image sensor	1/2.7" progressive scan RGB CMOS
Lens	2.4 mm, F2.1
	Horizontal field of view: 130°
	Vertical field of view: 72°
	Fixed iris, Fixed focus, IR corrected
Day and night	Automatically removable infrared-cut filter
Minimum illumination	Color: 0.19 lux at 50 IRE, F2.1
	B/W: 0.04 lux at 50 IRE, F2.1
	0 lux with IR illumination on
Shutter speed	1/33500 s to 1/5 s
Camera angle adjustment	Pan: ±180°
	Tilt: 0° to 60° (0° = lens directed at a right angle to camera base)
	Rotation: ±95°
	Can be directed in any direction and see the wall/ceiling
System on chip (SoC)
Model	ARTPEC-7
Memory	1024 MB RAM, 512 MB Flash
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	2688x1512 to 320x240
Frame rate	Up to 25/30 fps with power line frequency 50/60 Hz
Video streaming	Multiple, individually configurable streams in H.264, H.265 and
	Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
Multi-view streaming	Up to 2 individually cropped-out view areas in full frame rate
Image settings	Compression, color saturation, brightness, sharpness, contrast,
	local contrast, white balance, day/night threshold, tone mapping,
	exposure control (including automatic gain control), exposure
	zones, Forensic WDR: up to 120 dB depending on scene, fine
	tuning of low-light behavior, defogging, dynamic text and image
	overlay, privacy masks, mirroring, rotation: 0°, 90°, 180°, 270°
	including Corridor Format
Pan/Tilt/Zoom	Digital PTZ
Audio
Audio input/output	Two-way audio connectivity via the optional AXIS T61 Audio and
	I/O Interfaces with portcast technology
Network
Security	Password protection, IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS)* network access control, Digest authentication, User access log, Centralized Certificate Management, brute force delay protection, signed firmware, secure boot
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric
Supported protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and
	AXIS Camera Application Platform; specifications at axis.com
	One-Click Cloud Connection
	ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T,
	specification at onvif.org
	Support for Session Initiation Protocol (SIP) for integration with
	Voice over IP (VoIP) systems, peer to peer or integrated with
	SIP/PBX.
Event triggers	Analytics, Edge storage events, Virtual inputs through API
	MQTT subscribe
Event actions	Record video: SD card and network share
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email
	Pre- and post-alarm video or image buffering for recording or upload
	Notification: email, HTTP, HTTPS, TCP, and SNMP trap
	MQTT publish
	Overlay text
Data streaming	Event data
Built-in installation aids	Pixel counter, adjustable IR-illumination intensity
Analytics
Applications	Included
	AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard
	AXIS Video Motion Detection, active tampering alarm
	Support for AXIS Camera Application Platform enabling
	installation of third-party applications, see axis.com/acap
General
Casing	IP66- and NEMA 4X-rated, IK08 impact-resistant casing
	Encapsulated electronics and captive screws (Torx 10)
	Color: white NCS S 1002-B
Sustainability	PVC free
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
	Typical: 4.6 W, Max.: 8.7 W
Connectors	RJ45 10BASE-T/100BASE-TX PoE
	Audio and I/O connectivity via the optional AXIS T61 Audio and
	I/O Interfaces with portcast technology
IR illumination	Power-efficient, long-life 850 nm IR LED. Range of reach
	20 m (65 ft) or more depending on the scene
Storage	Support for microSD/microSDHC/microSDXC card
	Support for SD card encryption (AES-XTS-Plain64 256bit)
	Recording to network-attached storage (NAS)
	For SD card and NAS recommendations see axis.com
Operating conditions	(-30 °C to 50 °C) (-22 °F to 122 °F)
	Start-up temperature: -20 °C to 50 °C (-4 °F to 122 °F)
	Humidity 10–100% RH (condensing)
Storage conditions	(-40 °C to 65 °C) (-40 °F to 149 °F)
	Humidity 5–95% RH (non-condensing)
Approvals	EMC
	EN 55024, EN 55032 Class A, EN 55035,
	EN 61000-6-1,EN 61000-6-2, FCC Part 15 Subpart B Class A,
	KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A,
	ICES-3(A)/NMB-3(A), VCCI Class A
	Environment
	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78,
	IEC 60068-2-14, IEC 60068-2-6, IEC 60068-2-27
	IEC/EN 62262 IK08, IEC/EN 60529 IP66, NEMA 250 Type 4X
	Safety
	IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC/EN 62471,
	IS 13252
	Network
	NIST SP500-267, IPv6 USGv6
Dimensions	Height: 94 mm (3.7 in)
	ø 101 mm (4.0 in)
Weight	390 g (0.85 lb)
Included accessories	Installation Guide, Windows decoder 1-user license, Torx® L-key,
	Connector guard, Cable gasket
Video management software	AXIS Companion, AXIS Camera Station, Video management
	software from Axis’ Application Development Partners available
	on axis.com/vms
Languages	English, German, French, Spanish, Italian, Russian, Simplified
	Chinese, Japanese, Korean, Portuguese, Traditional Chinese

[/specifications] [accesories]

Optional accessories

• AXIS T94B02D Pendant kit • AXIS T94B01P Conduit Back Box • AXIS T94B02M J-Box/Gang Box Plate • AXIS TM3807 Black Casing • Axis Mounts • AXIS Surveillance microSDXC™ Card • AXIS Weathershield Kit C • AXIS T61 Audio and I/O Interface Series

[/accesories]

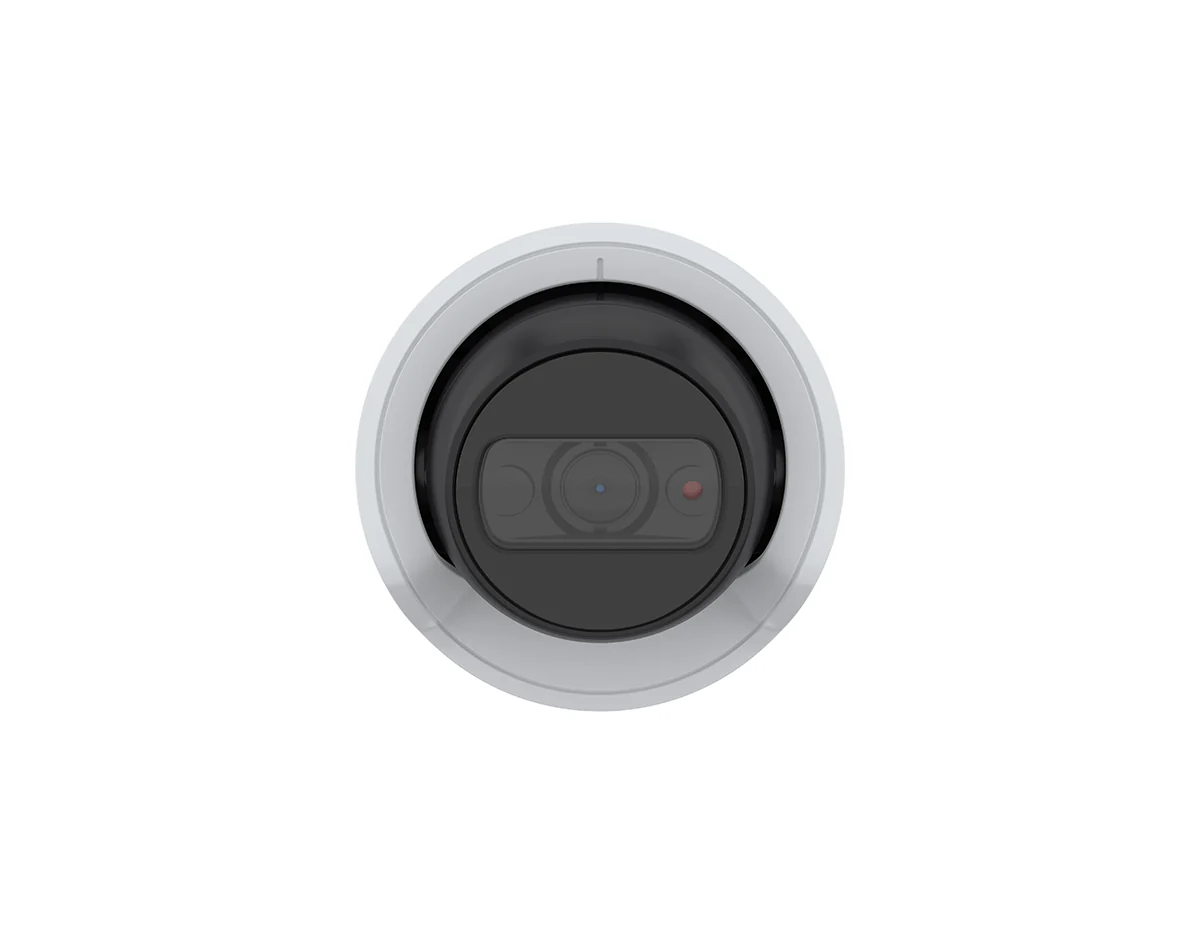

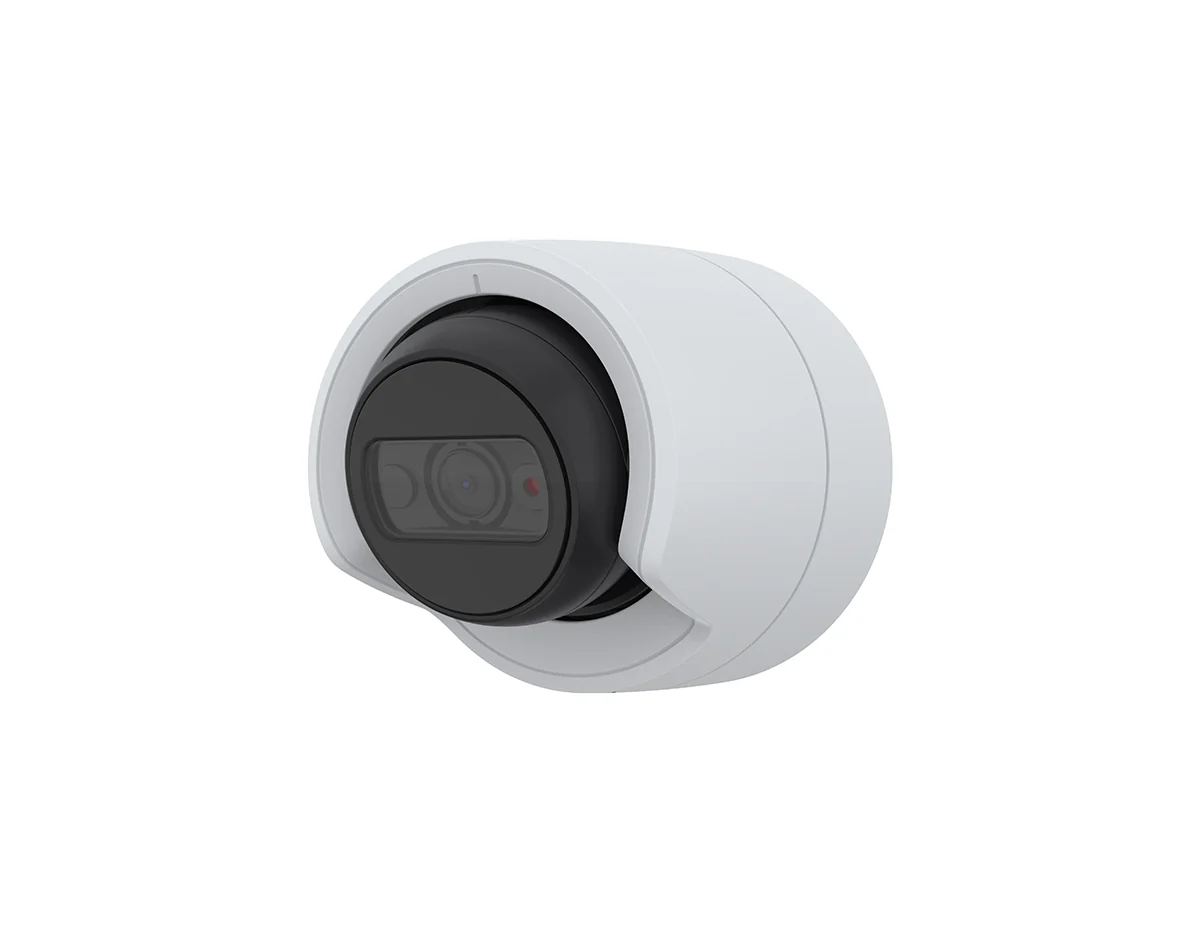

AXIS M3116-LVE Network Camera (01605-001)

The AXIS M3116-LVE is a cost-effective, low-profile dome camera that provides 4 MP video resolution and a superior wide-angle perspective. This small and inconspicuous camera is equipped with infrared illumination to ensure clear video capture in difficult lighting conditions or total darkness. It is well-suited for surveillance applications in various settings, such as hotels, restaurants, retail establishments, and office environments.

Quick Specs:

• 4 MP video quality
• Forensic WDR, Lighfinder and IR illumination
• Flat-faced design suppressing light reflections
• Signed firmware and secure boot

Please see the related tabs for the 01605-001 datasheet and compatible accessories.

This product has reached its end-of-life. The recommended replacement model is AXIS M3126-LVE.
