• Delivers sharp detailed images in real-time video, Field of View: Horizontal 100°–36° (3.4–8.9 mm) / 35°–15° (9–22 mm), Offers exceptional image quality in low-light and high-contrast environments.

[/shortdesc]

[properties]

Product Name	AXIS P3245-LVE Network Camera
Description	The AXIS P3245-LVE Network Camera is an outdoor-ready, fixed dome camera that provides outstanding image quality with HDTV 1080p resolution. Equipped with Forensic WDR, Lightfinder 2.0, and OptimizedIR, this camera ensures clear images in both low-light and high-contrast conditions. Available with wide-angle and telephoto lens options, it is ideal for versatile outdoor surveillance needs.
Resolution	1920x1080 (HDTV 1080p) for detailed video capture
Optical Technology	Forensic WDR and Lightfinder 2.0 for low-light and high-contrast imaging
Lens Options	Varifocal 3.4–8.9 mm (wide-angle) or 9–22 mm (telephoto), F1.8/F1.6 with remote zoom and focus
IR Illumination	OptimizedIR up to 40 meters (130 feet) for night vision
Power Supply	Power over Ethernet (PoE) IEEE 802.3af/at, max 11.3 W
Dimensions	Height: 104 mm (4.09 in), Diameter: 149 mm (5.87 in)
Weight	800 g to 860 g (1.8 lb to 1.9 lb) depending on the variant
Mounting Options	Wall and ceiling mount compatibility for flexible setup
Impact Resistance	IK10-rated for robust protection in vandal-prone areas
Audio Support	Two-way audio available via optional AXIS T61 Audio & I/O Interface
Remote Adjustment	Remote zoom and focus for quick field adjustments
Bandwidth Optimization	Axis Zipstream technology supporting H.264 and H.265 for reduced bandwidth needs
Cybersecurity	Signed firmware and secure boot to enhance system security
Usage	Suitable for demanding outdoor surveillance applications
Environmental Suitability	IP66-rated (NEMA 4X equivalent) for all-weather use
Compliance	RoHS, REACH, CE
Color	Standard Axis white finish for professional setups

[/properties]

[specifications]

Image Sensor	1/2.8” progressive scan RGB CMOS for high-resolution video
Field of View	Horizontal: 100°–36° (3.4–8.9 mm lens) / 35°–15° (9–22 mm lens)
Low-Light Performance	Lightfinder 2.0 provides color images in low-light conditions
IR Range	OptimizedIR with range up to 40 meters (130 feet) for effective nighttime monitoring
Temperature Range	Operates reliably from -40°C to 50°C (-40°F to 122°F)
Humidity Range	Handles 10% to 100% RH (condensing)
Material Composition	Durable materials for long-lasting outdoor use
Reliability	Tested for continuous operation in extreme outdoor conditions
Network Compatibility	Supports PoE IEEE 802.3af/at for power and network integration
Reliability Rating	MTBF-rated for reliable, continuous operation
Firmware Updates	Supports secure remote firmware updates
Ingress Protection	IP66-rated (NEMA 4X equivalent) for weather and dust resistance
Video Compression	H.264 and H.265 for optimized data management
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
Audio Format	Two-way audio available via optional AXIS T61 Audio & I/O Interface
Installation Compatibility	Compatible with Axis mounting kits for efficient installation
Noise Reduction	Integrated noise reduction for improved image quality in low light
Lens Type	Varifocal lens with remote zoom and focus

[/specifications]

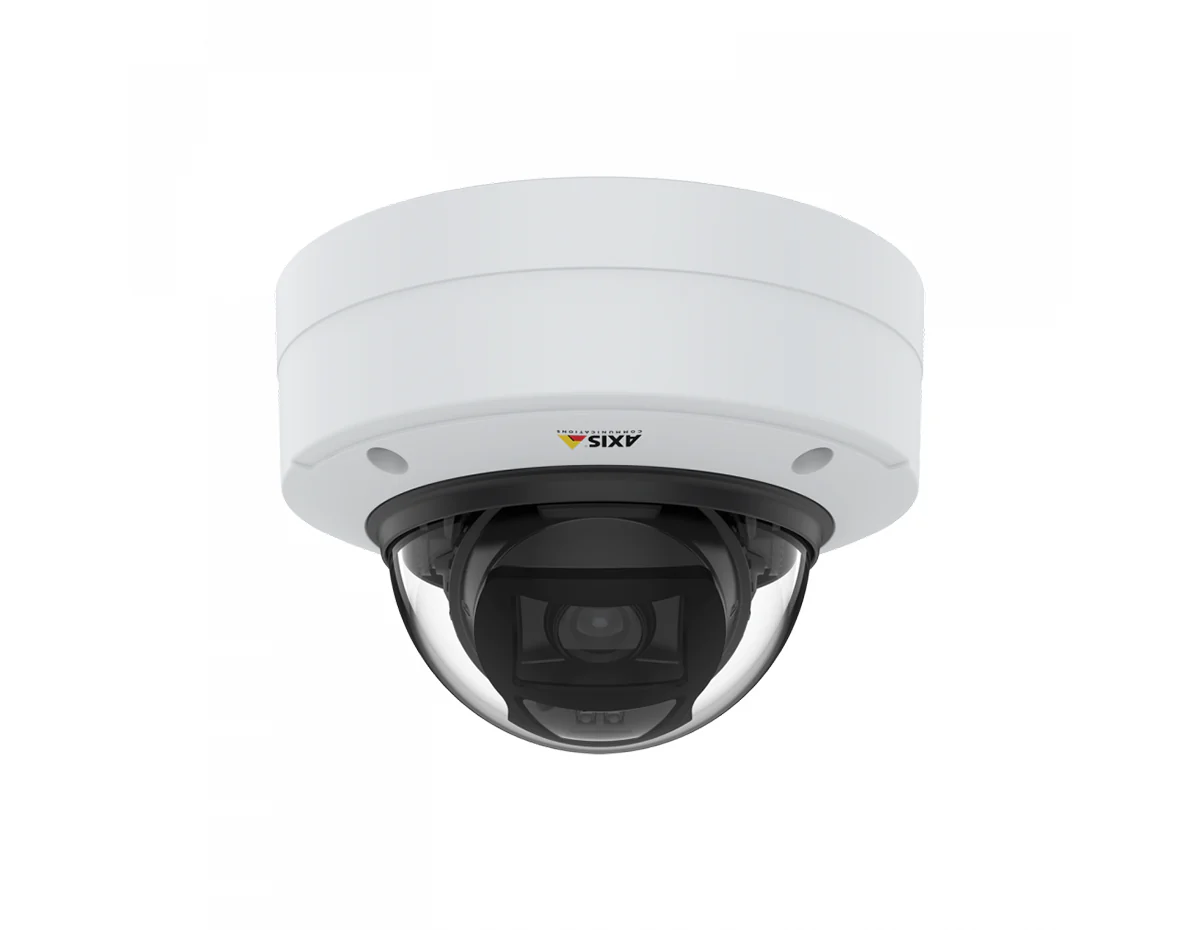

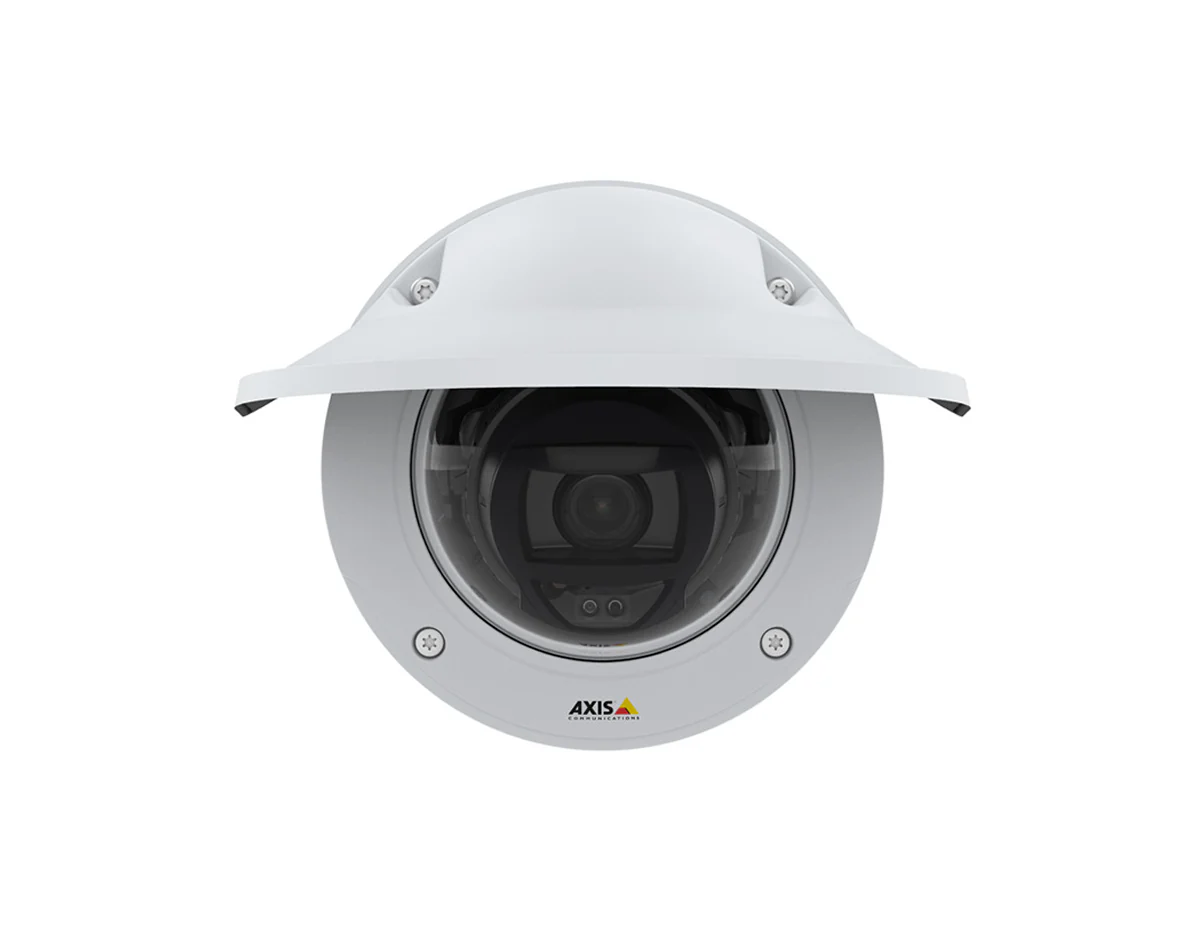

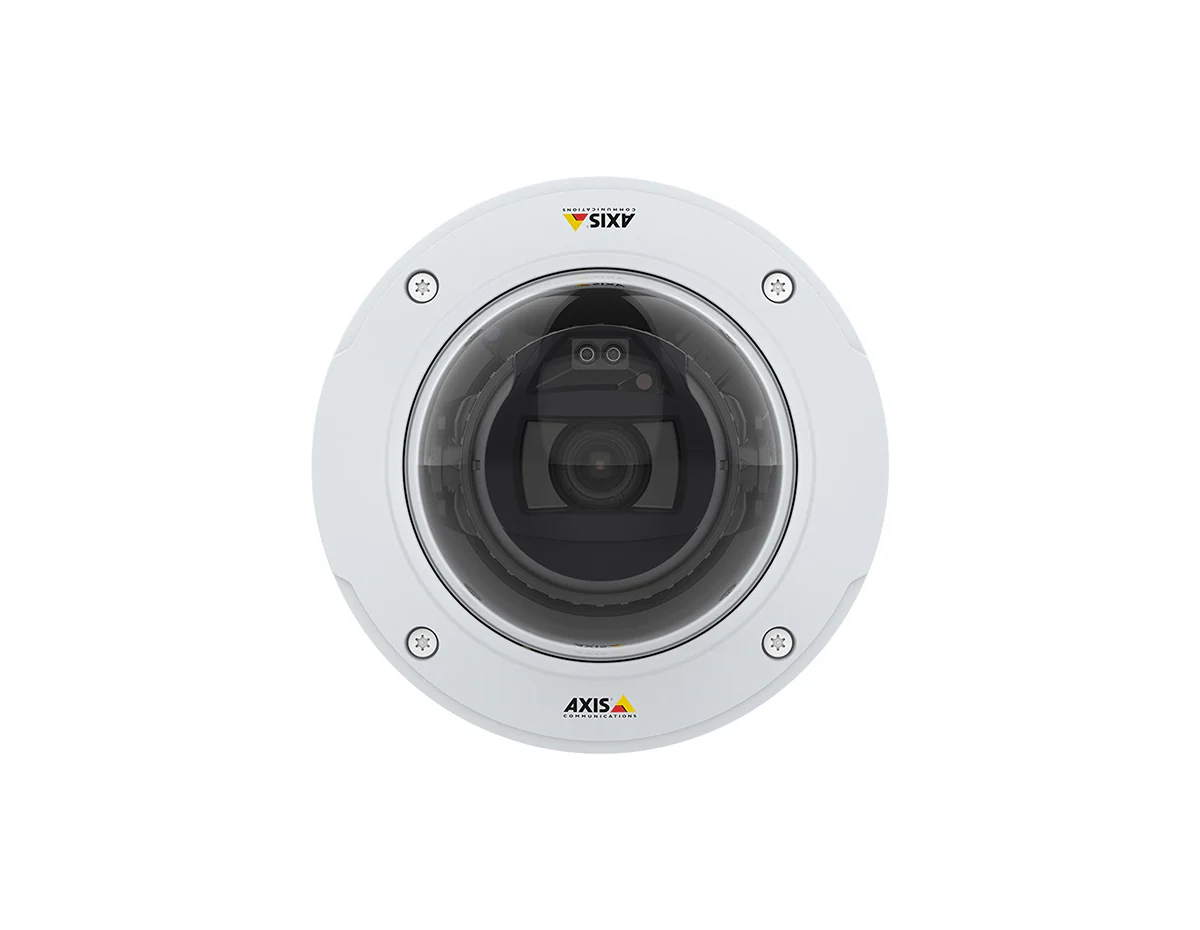

AXIS P3245-LVE Network Camera

The AXIS P3245-LVE Network Camera is an outdoor-ready, fixed dome surveillance camera designed to deliver outstanding image quality in all lighting conditions. Equipped with 1080p HDTV resolution, Forensic WDR, Lightfinder 2.0, and OptimizedIR technology, it captures sharp and clear video even in challenging light or complete darkness. This durable camera comes in two variants with wide-angle and telephoto lenses, providing flexibility for different surveillance needs. Featuring optional two-way audio via AXIS T61 Interface and remote zoom/focus capabilities, the AXIS P3245-LVE is ideal for demanding surveillance applications, ensuring enhanced security and operational efficiency.

Key Features:

• 1080p HDTV Resolution: Delivers sharp, detailed images in real-time video.
• Lightfinder 2.0 and Forensic WDR: Offers exceptional image quality in low-light and high-contrast environments.
• OptimizedIR Technology: Provides clear night vision with infrared illumination.
• Audio Support: Two-way audio available via optional AXIS T61 Audio & I/O Interface.
• Varifocal Lens: Equipped with remote zoom and focus for flexible installation.
• Cybersecurity Features: Includes signed firmware and secure boot for enhanced system security.

Technical Specifications:

• Image Sensor: 1/2.8” progressive scan RGB CMOS
• Lens: Varifocal 3.4–8.9 mm or 9–22 mm, F1.8/F1.6
• Field of View: Horizontal 100°–36° (3.4–8.9 mm) / 35°–15° (9–22 mm)
• IR Range: Up to 40 meters (130 feet) with OptimizedIR
• Resolution: 1920x1080 to 160x90
• Power: Power over Ethernet (PoE) IEEE 802.3af/at, max 11.3 W
• Operating Temperature: -40°C to 50°C (-40°F to 122°F)
• Humidity: 10–100% RH (condensing)
• Ingress Protection: IP66-rated (NEMA 4X equivalent)
• Dimensions: Height: 104 mm (4.09 in), Diameter: 149 mm (5.87 in)
• Weight: 800 g to 860 g (1.8 lb to 1.9 lb) depending on the variant

For more information about the AXIS P3245-LVE Network Camera, visit the Axis product page.

This product has reached its end-of-life. The recommended replacement model is P3265-LVE (02328-001)
