• All-in-one recording server with integrated 16-port PoE switch, validated for reliable video surveillance, preloaded with Microsoft Windows 10 IoT Enterprise and AXIS Camera Station, includes 16 AXIS Camera Station core licenses tied to the hardware.

[/shortdesc]

[properties]

Product Name	AXIS Camera Station S2216 Appliance
Description	All-in-one recording server combining client/server software, storage, and integrated PoE switch for professional video surveillance deployments. Validated with Axis devices for reliable performance and easy installation.
Operating System	Microsoft Windows 10 IoT Enterprise
Licensing	16 AXIS Camera Station core licenses tied to the hardware
Video Capacity	Qualified for up to 16 video channels and 256 Mbit/s total recording rate
Storage	8 TB (2 × 4 TB) included, 4 HDD bays with RAID 0/1/10 support
Chassis	1U rack mount, 476 × 440 × 45 mm
Security	FIPS 140-2 Level 2-certified TPM for secure storage of cryptographic keys and certificates
Power over Ethernet	Integrated 16-port PoE switch

[/properties]

[specifications]

Product Type	All-in-one recording server
Video Channels	Up to 16 channels supported (256 Mbit/s total recording rate)
Storage Configuration	8 TB (2 × 4 TB) standard, expandable; 4 HDD bays; RAID 0/1/10 supported
Operating System	Microsoft Windows 10 IoT Enterprise
Dimensions	476 × 440 × 45 mm (1U rack chassis)
Power over Ethernet	16 PoE ports integrated
Security	FIPS 140-2 Level 2-certified TPM for secure storage of cryptographic keys and certificates
Licensing	16 AXIS Camera Station core licenses tied to the hardware

[/specifications]

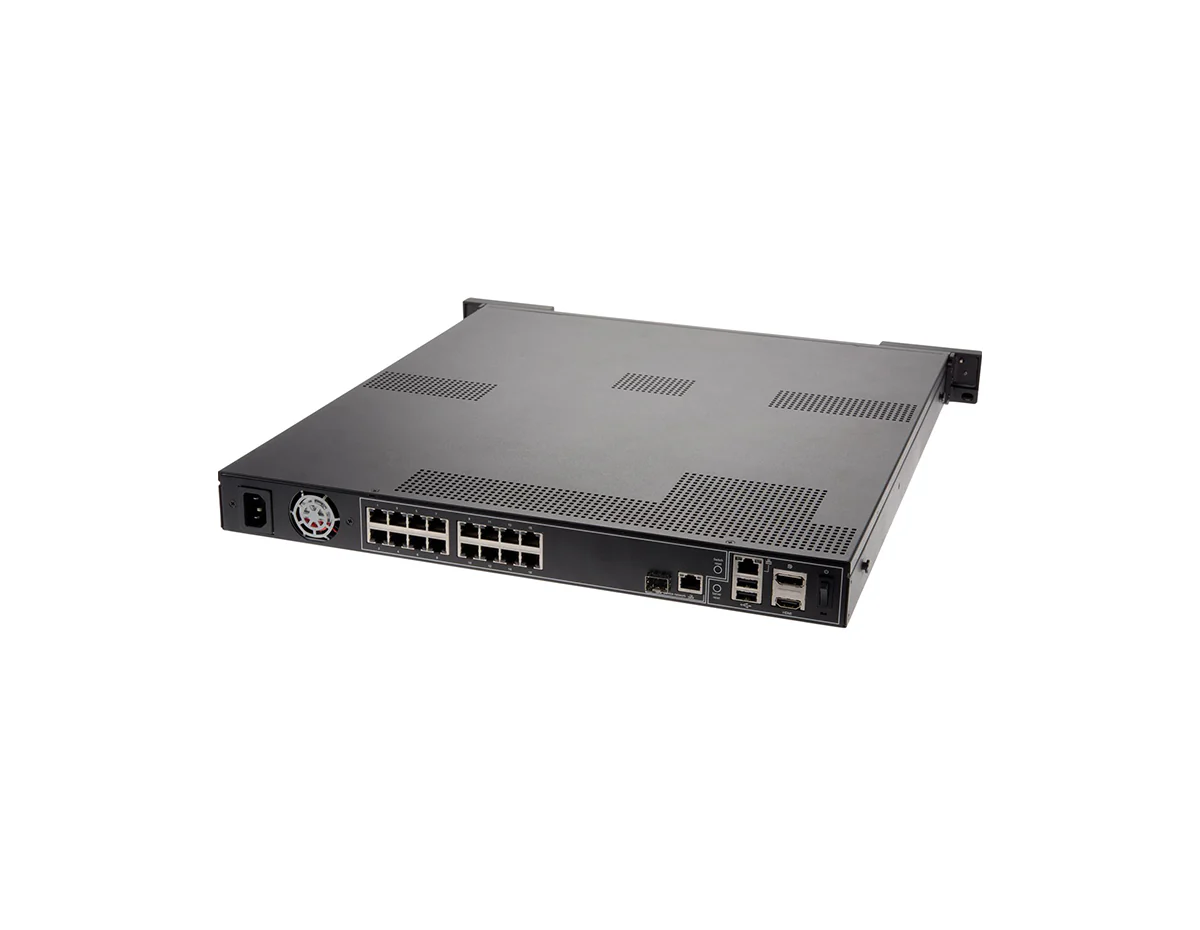

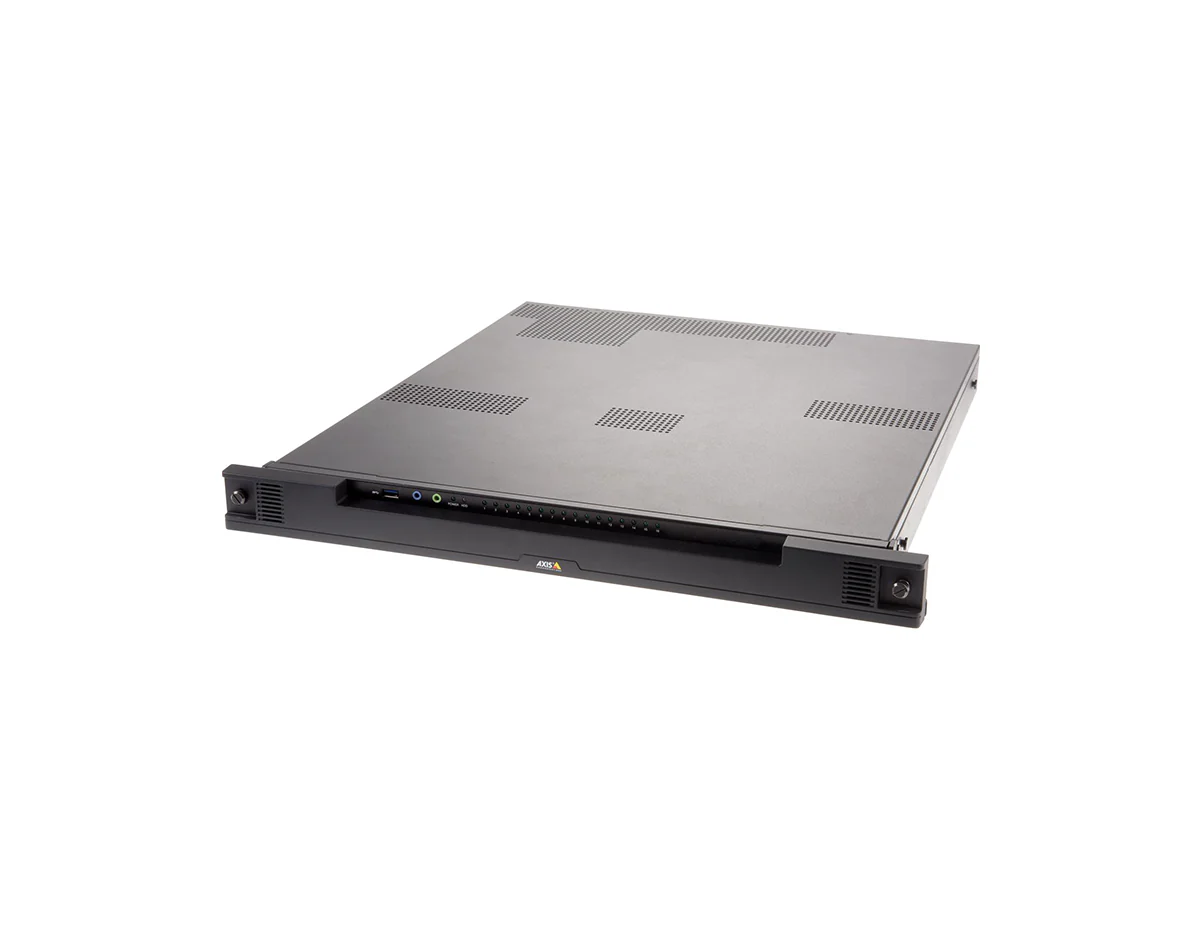

AXIS Camera Station S2216 Appliance

The AXIS Camera Station S2216 Appliance is an all-in-one recording server with an integrated 16-port PoE switch, designed for professional surveillance installations. Preloaded with Microsoft Windows 10 IoT Enterprise and AXIS Camera Station software, it enables fast setup and reliable performance right out of the box. Qualified for up to 16 video channels and a total recording rate of 256 Mbit/s, this 1U rack server delivers dependable operation for mid-sized systems.

Key Features

• Integrated 16-port PoE switch for simplified installation
• Includes 16 AXIS Camera Station core licenses tied to the hardware
• Preloaded with Microsoft Windows 10 IoT Enterprise and AXIS Camera Station
• 8 TB (2 × 4 TB) storage with 4 HDD bays and RAID 0/1/10 support
• FIPS 140-2 Level 2-certified TPM for secure storage of cryptographic keys and certificates
• 1U rack-mount chassis (476 × 440 × 45 mm)
• Qualified for up to 16 video channels and 256 Mbit/s total recording rate
