• Provides clear, high-resolution video for detailed surveillance, 2.9 mm F2.0 with horizontal field of view 105° vertical field of view 79°, Supports alarm triggers and other actions with connected devices.

[/shortdesc]

[properties]

Product Name	AXIS M3206–LVE Network Camera
Description	The AXIS M3206–LVE is a robust 4 MP fixed dome camera suitable for both indoor and outdoor surveillance. Equipped with Wide Dynamic Range (WDR) and built-in IR illumination, it provides clear video in challenging light and complete darkness. The IK10-rated casing, weathershield, and mounting bracket make it ideal for reliable, wide-angle surveillance in tough environments.
Resolution	2304x1728 (4 MP) at 30 fps
Optical Technology	WDR and built-in IR illumination for varied light conditions
Lens	2.9 mm, F2.0, horizontal field of view 105°, vertical field of view 79°
Power Supply	Power over Ethernet (PoE) IEEE 802.3af/at, max 12.5 W
Dimensions	Ø149 mm (5.87 in), Height: 104 mm (4.06 in)
Weight	720 g (1.6 lb) with weathershield
Mounting Options	Surface mount with included bracket
Usage	Ideal for wide-angle, high-resolution surveillance in both indoor and outdoor settings
Durability	IK10-rated for impact resistance, designed for outdoor environments

[/properties]

[specifications]

Image Sensor	1/2.5” progressive scan RGB CMOS
Field of View	Horizontal: 105°, Vertical: 79°
IR Illumination	Integrated IR LEDs with illumination for clear night vision
Bandwidth Optimization	Axis Zipstream technology for reduced bandwidth and storage, supports H.264 and H.265 formats
I/O Connectivity	Supports input and output for alarm triggers and connected devices
Certifications	CE, FCC, UL, RoHS compliant
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
EMC Compliance	Meets EN 55032, EN 55024, and FCC Part 15 standards
Operating Temperature	-40°C to 50°C (-40°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	10% to 100% (condensing)
Ingress Protection	IP66-rated for dust and water resistance
Impact Protection	IK10-rated for vandal and impact resistance
Power Consumption	Maximum 12.5W via PoE
HDMI Output	HDMI port for direct connection to monitors for public viewing
Cybersecurity Features	Signed firmware, HTTPS/TLS encryption, and IEEE 802.1X authentication for device integrity
Reliability	Tested for continuous operation in extreme temperatures and environmental conditions

[/specifications]

AXIS M3206–LVE Network Camera

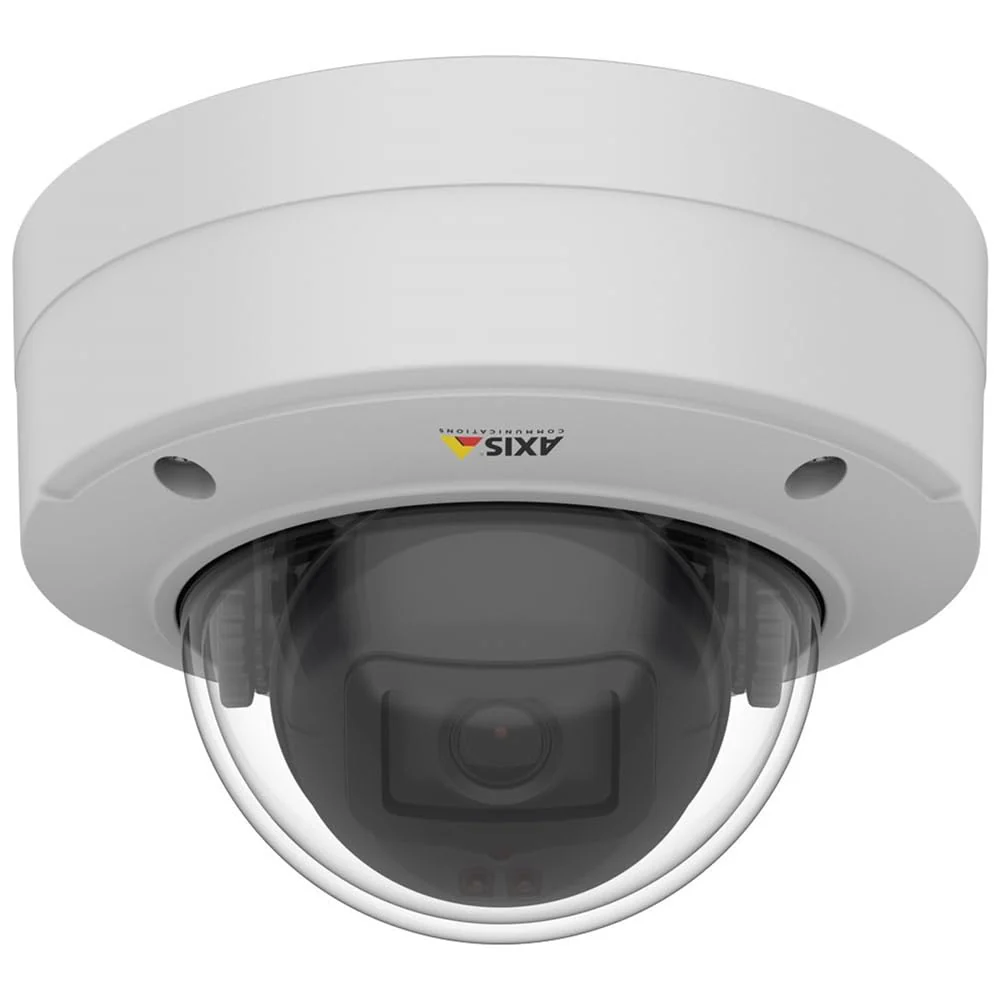

The AXIS M3206–LVE Network Camera provides robust, wide-angle surveillance with 4 MP resolution, ideal for both indoor and outdoor environments. This IK10-rated fixed dome camera includes a weathershield and mounting bracket for easy installation. With Wide Dynamic Range (WDR) and built-in IR illumination, it delivers sharp and clear video even in challenging light conditions or complete darkness. Additionally, the camera supports I/O connectivity for triggering alarms or actions, and its HDMI port allows direct connection to monitors for public viewing. AXIS Zipstream technology significantly reduces bandwidth and storage requirements, supporting both H.264 and H.265 formats.

Key Features:

• 4 MP Video Quality: Provides clear, high-resolution video for detailed surveillance.
• WDR and Built-in IR Illumination: Ensures high-quality video in varying light conditions, including total darkness.
• Wide-Angle View: Horizontal and vertical fields of view for comprehensive area coverage.
• I/O Connectivity: Supports alarm triggers and other actions with connected devices.
• Zipstream Technology: Reduces bandwidth and storage usage without sacrificing image quality, supporting H.264 and H.265.

Technical Specifications:

• Image Sensor: 1/2.5” progressive scan RGB CMOS
• Lens: 2.9 mm, F2.0, with horizontal field of view 105°, vertical field of view 79°
• Resolution: 2304x1728 (4 MP) to 320x240
• Power: Power over Ethernet (PoE) IEEE 802.3af/at, max 12.5 W
• Operating Conditions: -40 °C to 50 °C (-40 °F to 122 °F)
• Dimensions: Ø 149 mm (5.87 in), Height: 104 mm (4.06 in)
• Weight: 720 g (1.6 lb) with weathershield

For more information about the AXIS M3206–LVE Network Camera, visit the Axis product page.

This product has reached its end-of-life. The recommended replacement model is M3216-LVE (02372-001)
