• Mounting Axis fixed dome cameras on poles or beams in both indoor and outdoor environments, Built to withstand harsh environmental conditions, IK10-rated for vandal resistance, Providing long-lasting durability.

[/shortdesc]

[properties]

Product Name	Axis T91B67 Pole Mount
Description	Durable pole mount solution for Axis fixed dome cameras, compatible with 1.5” NPS threaded Axis pendant kits for secure indoor and outdoor installations.
Robust Pole Installation	Secure mounting for Axis fixed dome cameras on poles or beams, offering stability and safety.
Indoor and Outdoor Use	Weather-resistant design suitable for both indoor and outdoor environments.
Impact Resistance	IK10-rated, providing high resistance to impact and vandalism.
Cable Protection	3/4" conduit side entries and insect-proof cable gasket for secure and protected cable routing.
Compatibility	Compatible with 1.5” NPS threaded Axis pendant kits, offering versatile camera installation options.
Pole Diameter Range	Supports poles with diameters from 65–165 mm (2 1/2–6 1/2 in) for flexible installation.
Weather Protection	NEMA 4X-rated for protection against dust, rain, and corrosion in harsh environments.
Installation Type	Designed for quick and secure pole or beam installations.
Material	Constructed from powder-coated aluminum for durability and outdoor performance.
Mounting Flexibility	Can be used on both poles and beams, providing adaptable installation options.
Recommended Use	Ideal for outdoor surveillance applications where a stable and impact-resistant mount is required.
Cable Entry	Includes back cable hole and two 3/4" conduit side entries for simplified cable management.
Environment Rating

Tested to withstand extreme temperatures and environmental factors for reliable performance.

[/properties]

[specifications]

Material	Powder-coated aluminum, providing durability in outdoor environments.
Impact Rating	IK10-rated for vandal resistance, suitable for high-risk areas.
Weather Rating	NEMA 4X-rated for resistance to corrosion, dust, and water ingress.
Pole Diameter Compatibility	Supports pole diameters from 65–165 mm (2 1/2–6 1/2 in), offering installation versatility.
Dimensions	252 x 134 x 194 mm (9.9 x 5.3 x 7.6 in), compact yet sturdy.
Weight	1.2 kg (2.6 lb), lightweight for easy handling and installation.
Cable Routing	Back cable hole and two 3/4" conduit side entries for organized cable management.
Insect Protection	Equipped with a closed back and cable gasket to prevent insect entry.
Installation Method	Designed for pole and beam mounting, compatible with Axis fixed dome cameras.
Protection Standards	Meets IK10 and NEMA 4X standards, providing high durability in challenging environments.
Corrosion Resistance	Constructed to withstand exposure to harsh weather, ensuring long-lasting performance.
Color	Powder-coated finish for added durability and a professional appearance.

[/specifications]

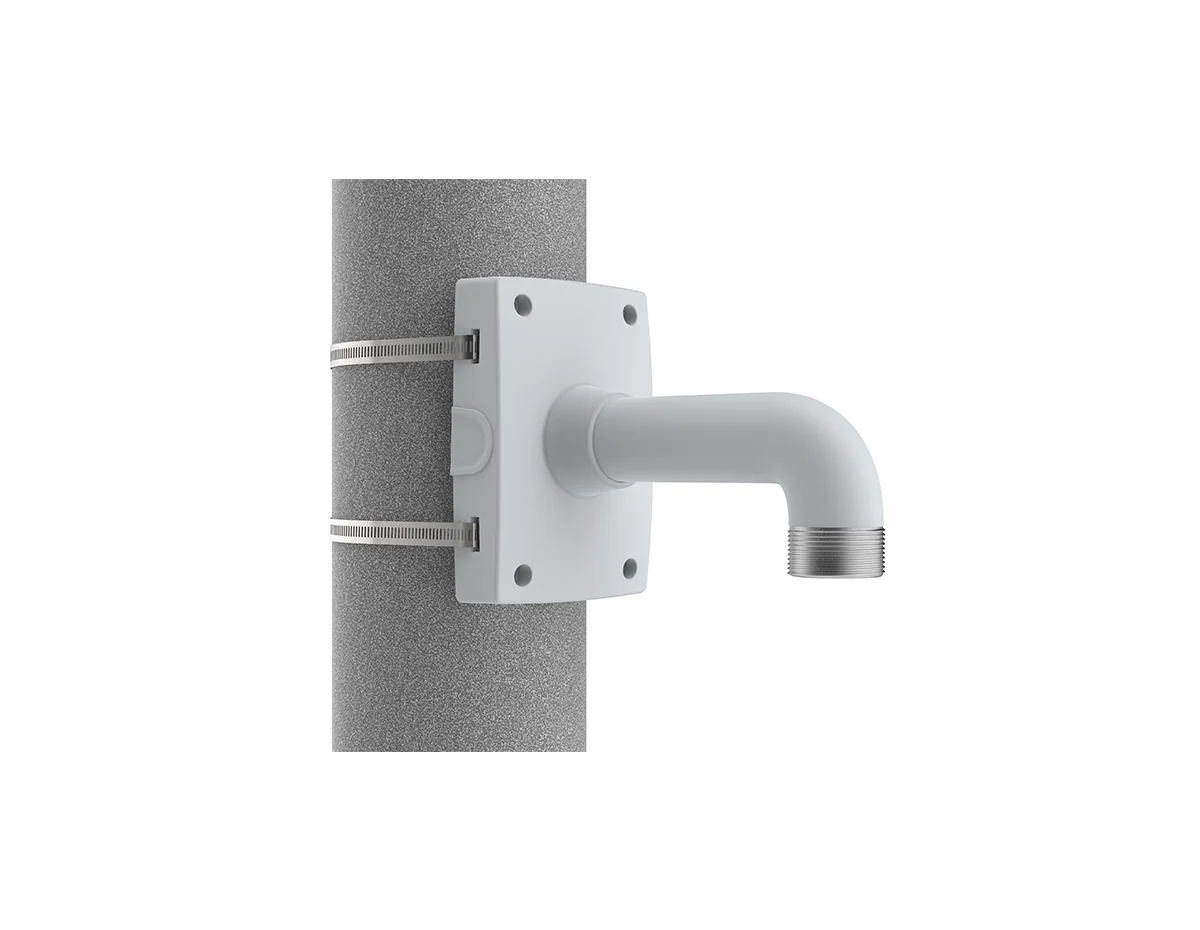

Axis T91B67 Pole Mount

The Axis T91B67 Pole Mount is a durable and versatile mounting solution designed for Axis fixed dome cameras that are compatible with 1.5” NPS threaded Axis pendant kits. Made from impact-resistant and outdoor-proven materials, this pole mount is ideal for both indoor and outdoor environments. It supports poles with a diameter of 65–165 mm (2 1/2–6 1/2 in) and can also be used for beams. The T91B67 features 3/4" conduit side entries for protected cable runs and a closed back with a cable gasket to prevent insect infestation.

Key Features:

• Robust Pole Installation: Ensures a secure and safe mounting solution for Axis fixed dome cameras on poles or beams.
• Indoor and Outdoor Use: Built to withstand harsh environmental conditions, making it suitable for both indoor and outdoor applications.
• Impact-Resistant Design: IK10-rated for vandal resistance, providing long-lasting durability.
• Cable Protection: Includes a cable gasket to prevent insect infestation and 3/4" conduit side entries for safe cable routing.
• Compatibility: Supports 1.5” NPS threaded Axis pendant kits, offering flexibility in camera installations.

Technical Overview:

• Recommended for: Mounting Axis fixed dome cameras on poles or beams in both indoor and outdoor environments.
• Material: Powder-coated aluminum, NEMA 4X- and IK10-rated.
• Pole Diameter: Suitable for poles with a diameter of 65–165 mm (2 1/2–6 1/2 in).
• Dimensions: 252 x 134 x 194 mm (9.9 x 5.3 x 7.6 in).
• Weight: 1.2 kg (2.6 lb).
• Cable Routing: Back cable hole and 3/4" conduit side entries.
• Included Accessories: Installation guide, stainless steel straps, insect-proof cable gasket.

You can check the related tab for the Axis T91B67 Pole Mount datas
