[shortdesc]High-performance PoE-powered IR LED illuminator with flexible beam angle, interchangeable lenses, and rugged IP66/IK09 outdoor rating for professional surveillance illumination.[/shortdesc]

[properties]

Model	AXIS T90D30 PoE IR-LED (01213-001)
Product Type	850 nm semi-covert IR LED illuminator
Dimensions	135 × 180 × 68 mm (5 × 7 × 3 in)
Weight	1.65 kg (3.61 lb)
Casing	Aluminum and polycarbonate, black
Environment	Indoor and outdoor
Operating Temperature	−50 °C to 50 °C (−58 °F to 122 °F)
Humidity	10–100% RH (condensing)
Storage Temperature	−50 °C to 70 °C (−58 °F to 158 °F)
Mounting	Wall, ceiling, pole, fixed box camera housing
Cable Length	2.5 m (8.2 ft)
Compatibility	All Axis cameras with infrared-cut filter

[/properties]

[specifications]

Distance	350 m (1148 ft) @ 10°; 165 m (541 ft) @ 35° × 10°; 95 m (311 ft) @ 60° × 25°; 70 m (230 ft) @ 80° × 30°; 45 m (148 ft) @ 120° × 50° (optional lens)
IR Angle Options	10° (without lens); 35°, 60°, 80°, 120° (with diverging lenses)
Power Supply	High Power over Ethernet (max 60 W)
Power Consumption	Maximum light: 49 W; Standby: 2.2 W
Control	Push buttons or IR remote: power level, photocell sensitivity, timer
Indicators	Indicator LEDs
EMC Approvals	FCC Part 15.107 and 15.109 Class B, ICES-003 Issue 6 Class B, EN 55032 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 55015, EN 55024, EN 50130–4, EN 61547
Safety	IEC/EN 60598-1, IEC/EN 62471 (risk group 2), C22.2 No 250.0–08, UL 2108
Environmental Ratings	IP66, IK09

[/specifications]

[accesories]

Included	Three diverging lenses (35°, 60°, 80°), IP66 cable coupler (PoE variant only)
Optional accessories	AXIS T90B Remote Control; AXIS IR Diverging Lens C 120°; AXIS T90 Wall-and-Pole Mount; AXIS T90 Single Bracket; AXIS T90 Multi Bracket; AXIS T8134 60 W Midspan; AXIS T8124-E Outdoor Midspan 60 W; AXIS T8125 AC 24 V Midspan 60 W; AXIS T8144 60 W Industrial Midspan; AXIS T8504-E Outdoor PoE Network Switch; Mains adaptor PS-24; Power Supply PS24 240 W

[/accesories]

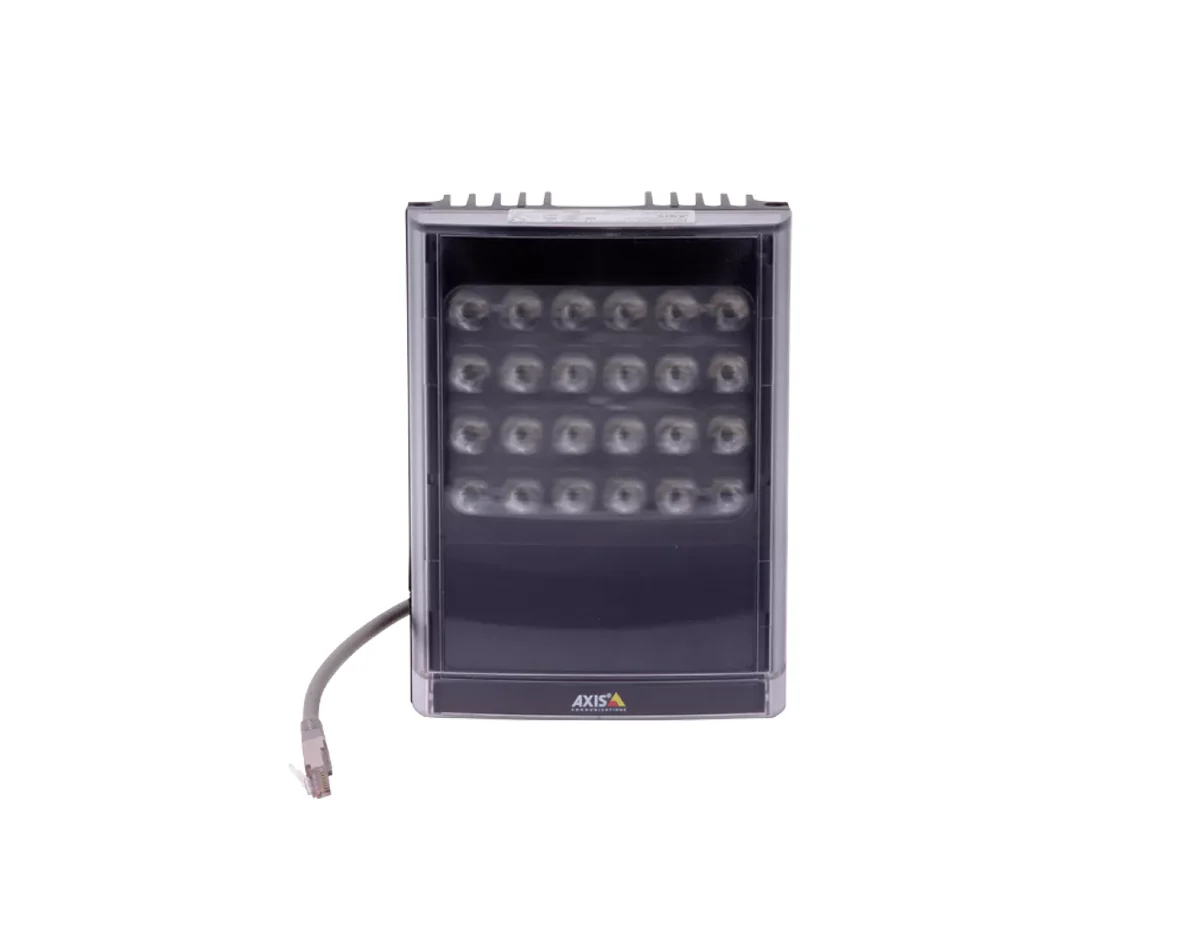

The AXIS T90D30 PoE IR-LED Illuminator delivers powerful nighttime and low-light visibility for surveillance, using high-efficiency IR LEDs with selectable beam patterns from narrow-focus 10° to wide-coverage 120°. Its rugged IP66 and IK09-rated construction enables dependable operation in demanding outdoor conditions, including extreme cold down to −50 °C (−58 °F).

With lens-swappable beam shaping, PoE high-power input, and selectable illumination angles, the T90D30 ensures optimal IR performance for close-range coverage as well as long-distance monitoring. It is ideal for professional Axis-based surveillance systems requiring consistent IR illumination.

Optimized IR Illumination for Multiple Surveillance Scenarios

• Long-range IR illumination up to 350 m (1148 ft) for distance-oriented deployments
• Interchangeable beam lenses for precise lighting control and coverage
• PoE high-power input simplifies installation with a single cable
• IP66 and IK09 protection ensures reliable outdoor performance
• Local push-button or remote-controlled configuration for easy adjustment
• Engineered for seamless compatibility with all Axis IR-cut filter cameras

Ideal Use Cases

• Perimeter protection and fence monitoring
• Parking lots and vehicle storage areas
• Ports, logistic hubs, and warehouse exteriors
• Long-distance observation with zoom cameras
• Industrial or critical-infrastructure security lighting

Technical Specifications Summary

• IR wavelength: 850 nm semi-covert
• Maximum IR distance: Up to 350 m (1148 ft)
• Beam angles: 10°, 35°, 60°, 80°, 120°
• Operating range: −50 °C to 50 °C (−58 °F to 122 °F)
• Environmental rating: IP66, IK09
• Power: PoE high power up to 60 W
• Casing: Aluminum + polycarbonate
• Mounting methods: Wall/ceiling/pole/fixed box camera enclosure

Upgrade Your Operations

Enhance nighttime visibility and surveillance precision with the AXIS T90D30 PoE IR-LED Illuminator.
