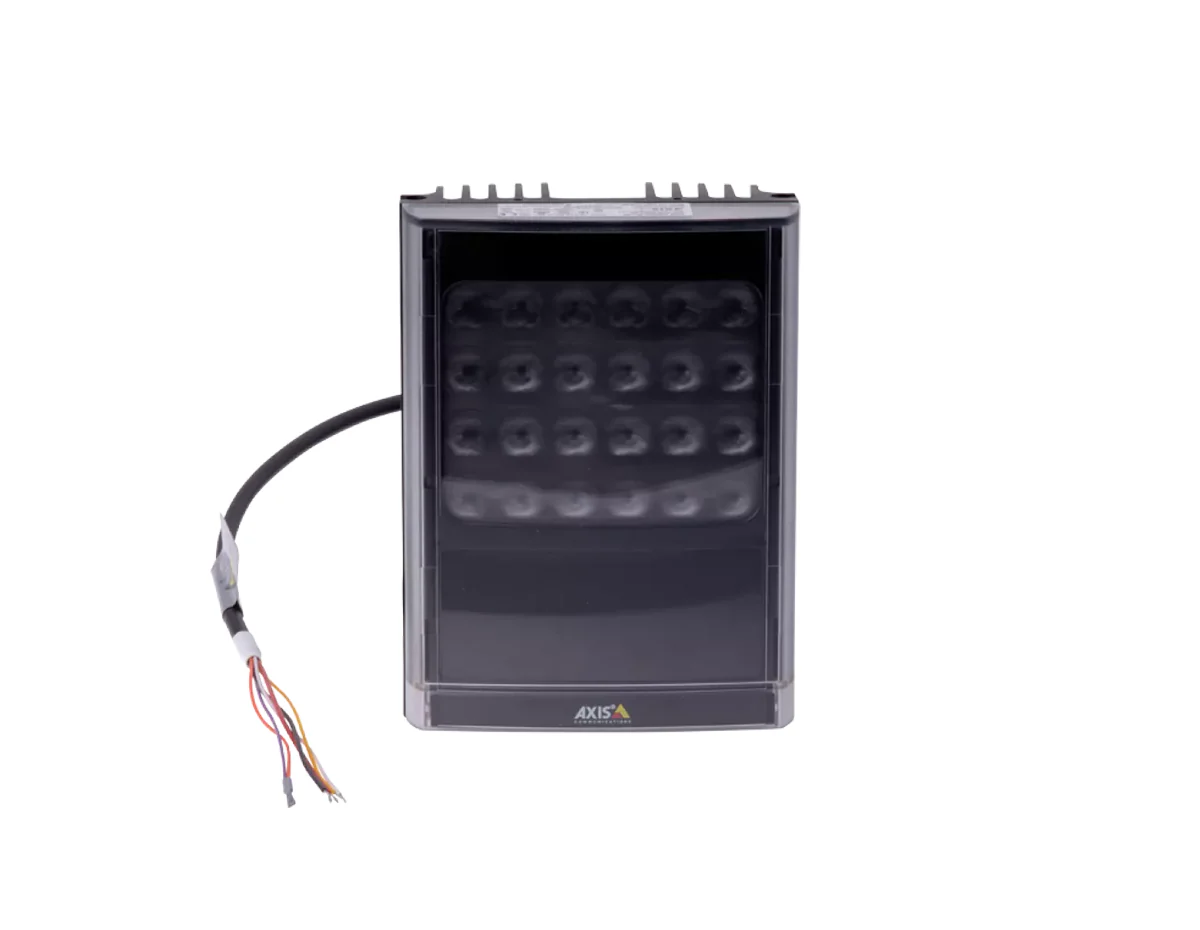

AXIS T90D30 IR-LED (01212-001)
[shortdesc]High-performance IR LED illuminator with AC/DC or PoE input, providing up to 350 m (1148 ft) infrared illumination with interchangeable lenses and rugged IP66 and IK09 outdoor-ready housing.[/shortdesc]
[properties]
| Model | AXIS T90D30 IR-LED (01212-001) |
| Product Type | 850 nm semi-covert IR LED Illuminator |
| Power | AC/DC input 12–24 V, or High PoE (max 60 W) |
| Dimensions | 135 x 180 x 68 mm (5 x 7 x 3 in) |
| Weight | 1.65 kg (3.61 lb) |
| Casing | Aluminum and polycarbonate, black |
| Environment Rating | IP66 (dust-tight and powerful water jets), IK09 impact resistance |
| Operating Temperature | -50 °C to 50 °C (-58 °F to 122 °F) |
| Storage Temperature | -50 °C to 70 °C (-58 °F to 158 °F) |
| Humidity | 10–100% RH (condensing) |
| Compatible Products | All Axis cameras with infrared-cut filter |
| Mounting Options | Wall, ceiling, pole, fixed box camera housing |
| Cable Length | 2.5 m (8.2 ft) |
[/properties]
[specifications]
| IR Wave Type | 850 nm semi-covert |
| Illumination Angle (without lens) | 10° |
| Illumination Angle (with diverging lenses) | 35°, 60°, 80°, 120° |
| Distance (10°) | Up to 350 m (1148 ft) |
| Distance (35°) | Up to 165 m (541 ft) |
| Distance (60°) | Up to 95 m (311 ft) |
| Distance (80°) | Up to 70 m (230 ft) |
| Distance (120°) | Up to 45 m (148 ft) |
| Power Use (AC/DC Variant) | 46 W max, 0.3 W standby |
| Power Use (PoE Variant) | 49 W max, 2.2 W standby |
| Control (AC/DC) | Buttons / Remote: power level, photocell sensitivity, telemetry link, timer |
| Control (PoE) | Buttons / Remote: power level, photocell sensitivity, timer |
| Indicators | Indicator LEDs |
| Certifications (EMC) | FCC Part 15 Class B, ICES-003 Class B, EN 55032 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 55015, EN 55024, EN 50130–4, EN 61547 |
| Certifications (Safety) | IEC/EN 60598-1, IEC/EN 62471 (risk group 2), C22.2 No 250.0–08, UL 2108 |
[/specifications]
[accesories]
| Included | Three IR diverging lenses (35°, 60°, 80°); IP66 cable coupler (PoE variant only) |
| Optional accessories | AXIS T90B Remote Control; AXIS IR Diverging Lens C 120°; AXIS T90 Wall-and-Pole Mount; AXIS T90 Single Bracket; AXIS T90 Multi Bracket; AXIS T8134 60 W Midspan; AXIS T8124-E Outdoor Midspan 60 W; AXIS T8125 AC 24 V Midspan 60 W; AXIS T8144 Industrial Midspan 60 W; AXIS T8504-E Outdoor PoE Network Switch; PS-24 mains adaptor; PS24 240 W power supply |
[/accesories]
The AXIS T90D30 IR-LED Illuminator is designed to provide precisely directed infrared lighting for night-time and low-light surveillance, minimizing foreground washout while ensuring long-range illumination. Its interchangeable lenses allow lighting angle optimization to match multiple field-of-view configurations, making it highly adaptable for different installation scenarios.
With durable IP66 and IK09 construction, extreme temperature tolerance from -50 to 50 °C (-58 to 122 °F), and multiple mounting options, this illuminator delivers reliable, maintenance-free performance for both indoor and outdoor use. The power flexibility—with PoE or AC/DC—ensures easy integration with existing infrastructure.
Precision IR Illumination with Flexible Power and Lens Configurations
- Long-range IR coverage up to 350 m (1148 ft) for extended surveillance distance.
- Interchangeable beam-angle lenses for exact illumination alignment.
- Rugged IP66 and IK09 protection for reliable outdoor performance.
- Flexible AC/DC or High-Power PoE power options.
- Comprehensive installation compatibility: poles, walls, ceilings, and housings.
- Integrated control features including adjustable photocell sensitivity and power output.
Ideal Use Cases
- Perimeter and fence-line monitoring over long distances.
- Industrial and logistics yard surveillance.
- Parking areas and large-lot security.
- Border detection and restricted-access monitoring.
- Any environment requiring optimized nocturnal imaging with Axis network cameras.
Technical Specifications Summary
- IR Output: 850 nm semi-covert illumination
- Beam Angles: 10° / 35° / 60° / 80° / 120° (with lenses)
- Power Input: 12–24 V AC/DC or PoE (60 W)
- Consumption: AC/DC max 46 W; PoE max 49 W
- Operating Temp: -50 to 50 °C (-58 to 122 °F)
- Cable Length: 2.5 m (8.2 ft)
- Size and Weight: 135 x 180 x 68 mm (5 x 7 x 3 in), 1.65 kg (3.61 lb)
- Environmental Class: IP66 and IK09
Upgrade Your Operations
Deploy precision IR lighting for unmatched night-time surveillance performance.
