• The AXIS T90D20 PoE IR-LED Illuminator delivers robust infrared illumination for clear surveillance in total darkness, powered conveniently via PoE technology.

[/shortdesc]

[specifications] [/specifications]

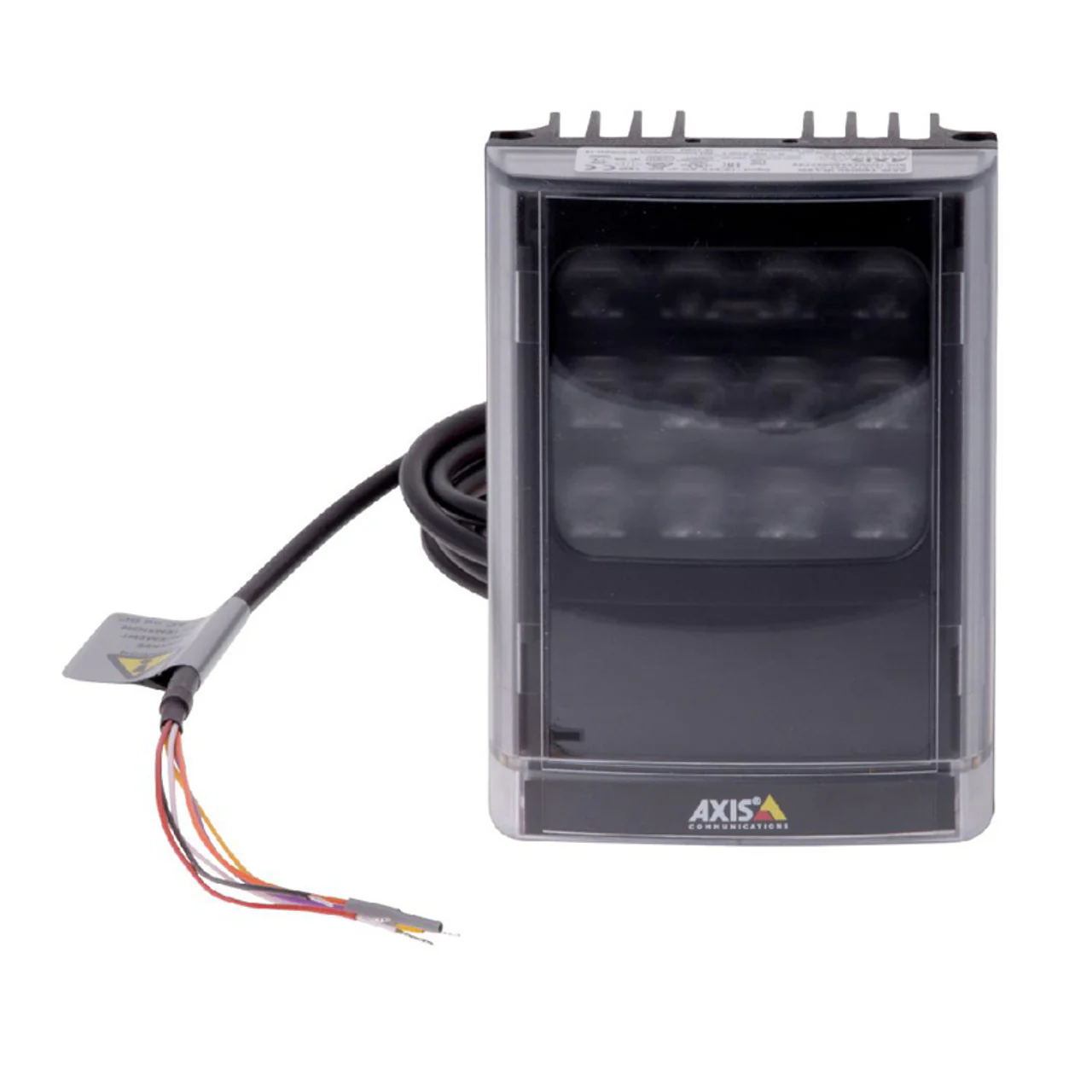

AXIS T90D20 PoE IR-LED Illuminator (01211-001)

The AXIS T90D20 PoE IR-LED Illuminator provides high-performance infrared illumination to enhance the effectiveness of your surveillance system. Designed for both indoor and outdoor use, this PoE-powered illuminator ensures seamless integration with Axis cameras and enables high-quality video capture in complete darkness. Featuring advanced LED technology, it delivers optimized illumination while minimizing light wastage and overexposure. Its rugged construction and versatile mounting options make it an ideal choice for demanding environments.

Key Features:

• Efficient Power: Powered via PoE (IEEE 802.3at Type 2 Class 4) for easy and flexible installation.
• High-Performance LEDs: Includes 35°, 60°, and 80° lenses; 120° diverging lens optional (angles 10°, 35°, 60°, 80°, 120° total).
• Advanced Controls: Features integrated push buttons and remote control for power adjustments and timer settings.
• Durability: Built with a robust aluminum and polycarbonate casing, rated IP66 and IK09 for harsh conditions.
• Wide Compatibility: Supports all Axis cameras with an infrared-cut filter.

Technical Specifications:

• Power Input: PoE IEEE 802.3at Type 2 Class 4
• Maximum Light Output: 20 W
• Distance Coverage: Up to 144 m (472 ft) with a standard 10° lens
• Environment: Indoor and outdoor use (-50 °C to 50 °C / -58 °F to 122 °F)
• Dimensions: 100 x 135 x 66 mm (4 x 5 x 2.5 in)
• Weight: 950 g (2.11 lb)
• Mounting Options: Wall, ceiling, pole, fixed box camera housing
