[shortdesc]

• AXIS T90D20 AC/DC IR-LED Illuminator provides powerful infrared illumination for indoor and outdoor environments, featuring adjustable angles

[/shortdesc]

[specifications] [/specifications]

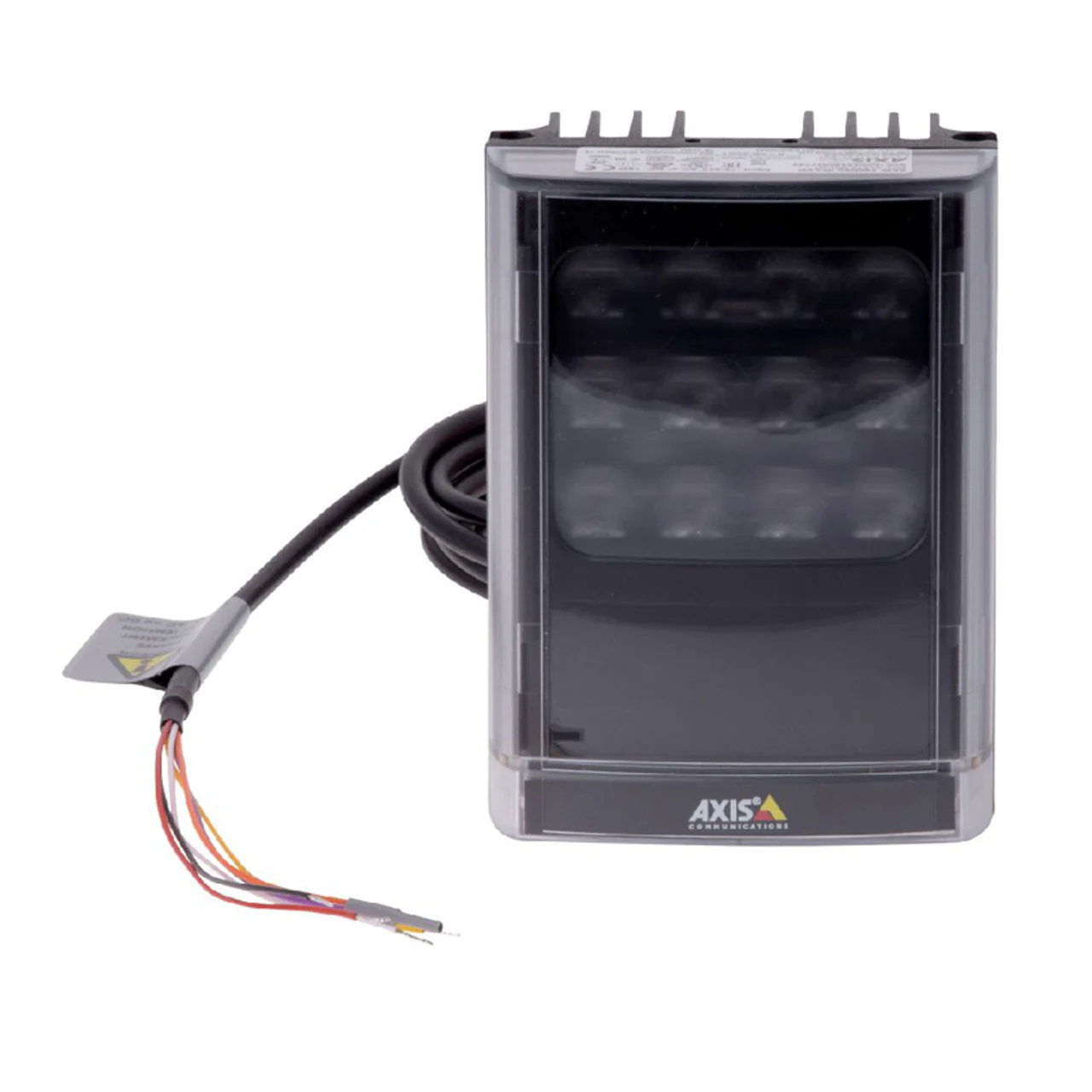

AXIS T90D20 AC/DC IR-LED Illuminator

The AXIS T90D20 AC/DC IR-LED Illuminator is a high-performance lighting solution designed to enhance visibility in low-light or dark environments. Engineered with advanced LED technology, this illuminator offers optimized lighting angles and energy-efficient operation. It supports flexible installation with a variety of mounts and adjustable settings for tailored performance.

Key Features:

• Power Options: Operates on 12–24 V AC/DC power input, supporting easy integration with existing setups.
• Flexible Illumination: Includes three interchangeable lenses (35°, 60°, 80°) to customize the lighting angle according to the camera's field of view.
• Energy Efficient: Features power adjustment and telemetry control for reduced energy consumption.
• Durable Design: Built with an IP66-rated and IK09 impact-resistant casing for reliability in harsh outdoor environments.
• Optimized Infrared Light: Provides semi-covert 850 nm infrared light with an effective range of up to 144 meters using the standard lens.
• User-Friendly Setup: Offers easy configuration through integrated push buttons or remote control.

Technical Specifications:

• Power Input: 12–24 V AC/DC
• Maximum Light: 18 W (AC/DC) or 20 W (PoE)
• Illumination Range: Up to 144 m (472 ft) with the standard lens
• Operating Conditions: -50 °C to 50 °C (-58 °F to 122 °F), 10–100% RH
• Casing: Aluminum and polycarbonate, IP66 and IK09 rated
• Dimensions: 100 x 135 x 66 mm (4 x 5 x 2.5 in)
• Weight: 2.11 lb
