[shortdesc]

• IK10+ rating for high protection against vandalism, Supports a wide range of Axis network cameras, including AXIS P32, P33, Q35, and Q36 series, Maximum Load: 2.3 kg (5 lb).

[/shortdesc]

[properties]

Product Name	AXIS T94S01P Conduit Back Box
Description	The AXIS T94S01P Conduit Back Box is an outdoor-ready, impact-resistant back box for mounting Axis network cameras. With IK10+ impact resistance and IP66/IP67 ingress protection, it provides secure storage for connectivity devices in harsh environments, ensuring camera and connectivity device installation in one location.
Material	Powder-coated aluminum casing with stainless steel screws (TX20)
Cable Routing	Back: 3 cable holes; Sides: 3/4” conduit entrances; Top: 3x gaskets C M20 (5–9.5 mm)
Dimensions	Height: 53.5 mm (2 1/8 in), Diameter: 157 mm (6 3/16 in)
Maximum Load	2.3 kg (5 lb)
Weight	750 g (1.65 lb)
Mounting Options	Supports mounting Axis network cameras and connectivity devices in one secure location
Usage	Ideal for outdoor installations requiring impact resistance and secure device storage
Durability	IK10+ impact-resistant, IP66/IP67-rated for weather and dust protection

[/properties]

[specifications]

Compatible Cameras	Supports AXIS P32, P33, Q35, and Q36 series cameras
Ingress Protection	IP66/IP67 and NEMA 250 Type 4X-rated for dust, water, and weather protection
Impact Protection	IK10+ rated for high impact and vandal resistance
Construction	Powder-coated aluminum casing with corrosion-resistant stainless steel screws
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
Certifications	CE, FCC, UL, RoHS compliant
EMC Compliance	Meets EN 55032, EN 55024, and FCC Part 15 standards
Conduit Interface	¾” / M25 conduit entrances on side and back for flexible cable routing
Reliability	Tested for continuous outdoor operation in extreme weather conditions
Firmware Updates	Not applicable

[/specifications]

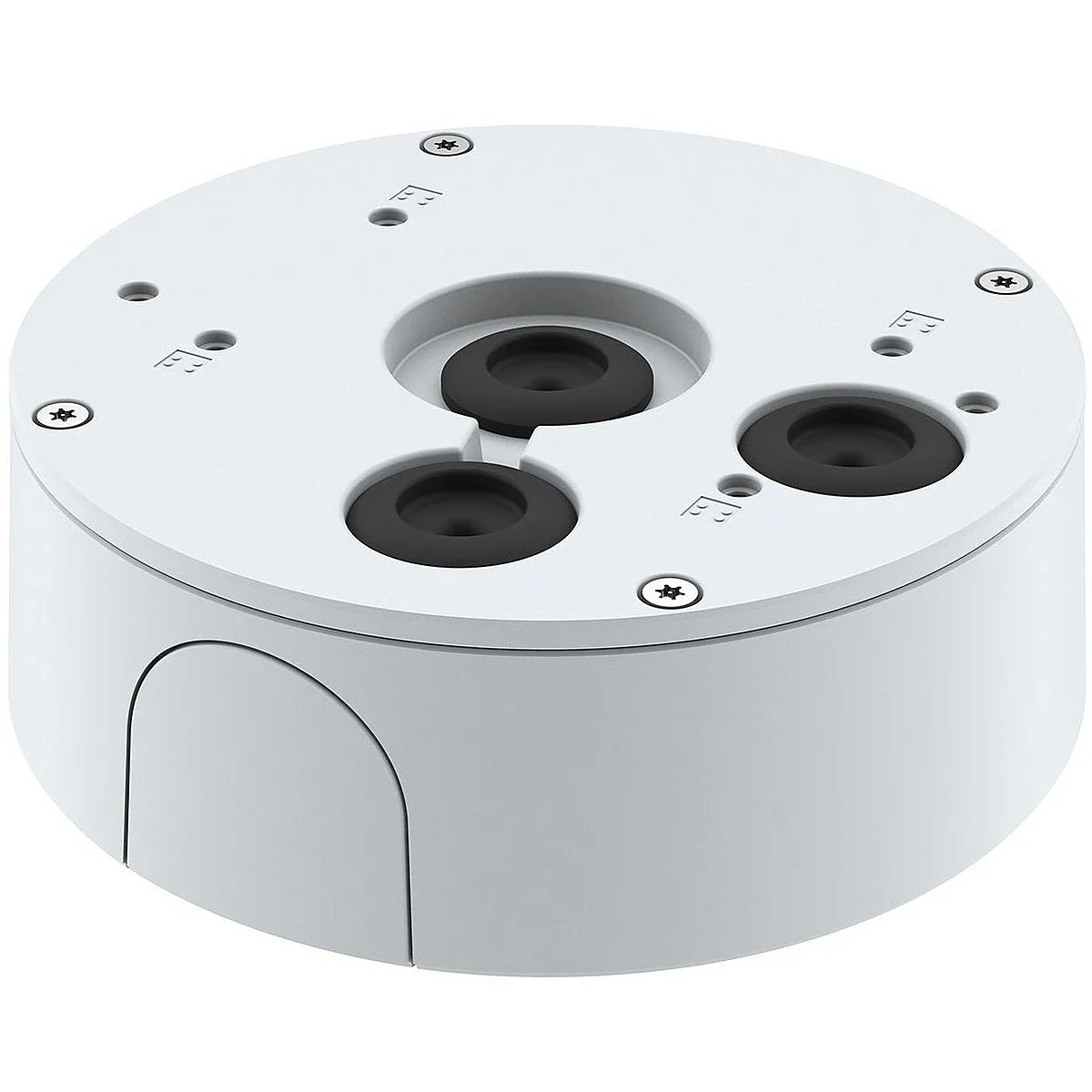

AXIS T94S01P Conduit Back Box

The AXIS T94S01P Conduit Back Box is an outdoor-ready, impact-resistant (IK10+) back box designed for mounting Axis network cameras. This versatile back box offers an ingress-protected (IP66/IP67) compartment for secure storage of connectivity devices, such as IP-over-COAX adapters or network cable couplers, allowing for safe installation of both the camera and connectivity device at the same point without additional cabinets. Its robust design makes it ideal for harsh outdoor environments, providing reliable protection against dust, water, and vandalism.

Key Features:

• Outdoor-Ready: IP66/IP67-rated for protection against dust, water, and harsh weather conditions.
• Impact-Resistant: IK10+ rating for high protection against vandalism.
• Integrated Connectivity Device Storage: Provides a secure compartment for storing connectivity devices such as cable couplers or IP-over-COAX adapters.
• Conduit Interface: Features ¾” / M25 conduit entrances on both the side and back for flexible cable routing.
• Compatibility: Supports a wide range of Axis network cameras, including AXIS P32, P33, Q35, and Q36 series.

Technical Specifications:

• Material: Powder-coated aluminum casing with stainless steel screws (TX20)
• Cable Routing: Back: 3 cable holes; Sides: 3/4” conduit entrances; Top: 3x gaskets C M20 (5–9.5 mm)
• Dimensions: Height: 53.5 mm (2 1/8 in), Diameter: 157 mm (6 3/16 in)
• Maximum Load: 2.3 kg (5 lb)
• Weight: 750 g (1.65 lb)
• Environment: Indoor/Outdoor
• Approvals: IK10+, IP66/IP67, NEMA 250 Type 4X

For more information about the AXIS T94S01P Conduit Back Box, visit the Axis product page.
