[shortdesc]

• The AXIS T94P01L Indoor/Outdoor Recessed Mount provides a sleek and discreet ceiling installation solution for AXIS M5525-E PTZ Network Camera, ensuring a low-profile and secure mounting option

[/shortdesc]

[specifications] [/specifications]

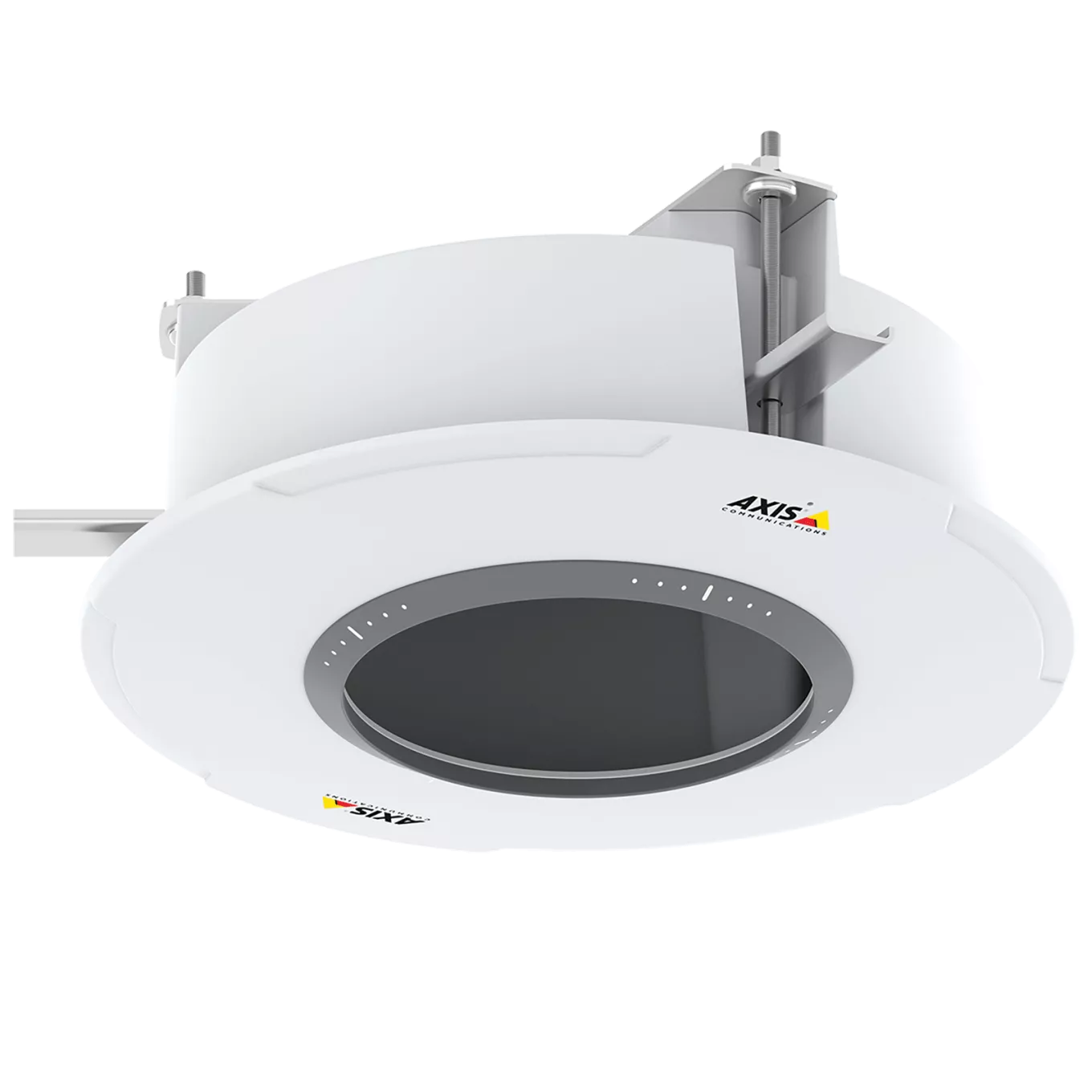

AXIS T94P01L Indoor/Outdoor Recessed Mount (01172-001)

The AXIS T94P01L Recessed Mount is designed for both indoor and outdoor recessed ceiling installations, offering a clean and discreet mounting solution for the AXIS M5525-E PTZ Network Camera. The mount is constructed with a metal back box that makes it suitable for air-handling spaces in indoor installations, ensuring compliance with safety standards. With a 3/4” (M25) hole for protected cable runs in conduits, the AXIS T94P01L allows for professional and secure installations in drop ceilings, ceiling tiles, or soffits. The camera dome and low-profile cover ring remain visible after installation, providing a seamless and professional appearance.

Key Features:

• Discreet Mounting: Designed for recessed installations in drop ceilings and soffits, ensuring a clean look.
• Indoor and Outdoor Use: Suitable for both indoor and outdoor environments.
• Durable Construction: Built with aluminum and plastic materials for longevity and robustness.
• Easy Installation: Quick and simple to install with included mounting accessories.
• Secure Cable Management: 3/4” (M25) conduit entrance for protected cable routing.
• Repaintable Cover Ring: The cover ring can be repainted to match the surrounding environment.

Technical Specifications:

• Supported Products: AXIS M5525-E PTZ Network Camera
• Material: Aluminum, plastic
• Color: White (NCS S 1002–B)
• Mounting: Recessed in drop ceilings, ceiling tiles, roof overhang/soffit
• Environment: Indoor/Outdoor
• Cable Routing: Top: 3/4” conduit entrance
• Approvals: IEC/EN/UL 62368-1, IEC/EN/UL 60950-22
• Impact Resistance: IEC 62262 IK09
• Dimensions:
  • Height inside ceiling/wall: 97.5 mm (3 27/32 in)
  • Height outside ceiling/wall (including camera): 14 mm (35/64 in)
  • Diameter outside ceiling/wall: ø 248 mm (9 49/64 in)
  • Diameter cut-out in ceiling/wall: ø 215 mm (8 15/32 in)
• Weight: 1100 g (2.4 lb)
• Maximum Load Capacity: 4500 g (9.9 lb)
• Included Accessories: Installation Guide
• Optional Accessories: AXIS Safety Wire 3 m
