[shortdesc]

• Provides up to 60 W of power for high-demand network devices, Built to withstand harsh environments, ideal for industrial applications, Data Rate: 10/100/1000 Mbps.

[/shortdesc]

[properties]

Product Name	AXIS T8144 60 W Industrial Midspan
Description	The AXIS T8144 is an industrial-grade, 1-port midspan providing reliable PoE power up to 60 W for network devices in harsh environments. It features a rugged design, wide operating temperature range, and dual DC input for redundancy, ideal for industrial applications requiring high power delivery.
Power Output	55 V DC, max 60 W
Input Voltage	20-60 V DC, max 72 W
Data Rate	10/100/1000 Mbps
Connector Type	Shielded RJ45, EIA 568A/568B, 6-pin DC power and alarm terminal connector
Dimensions	78 mm x 36 mm x 111 mm (3.1 in x 1.4 in x 4.4 in)
Weight	315 g (0.7 lb)
Mounting Options	Wall or DIN rail mount
Usage	Designed for powering high-power Axis network devices in industrial settings
Durability	Engineered for extreme conditions with industrial-grade construction

[/properties]

[specifications]

PoE Compatibility	High PoE (55 V DC output, up to 60 W), not limited to IEEE 802.3at standard
Certifications	CE, FCC, UL, RoHS compliant
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
EMC Compliance	Meets EN 55032, EN 55024, and FCC Part 15 standards
Operating Temperature	-40°C to 75°C (-40°F to 167°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	Max 95% RH (non-condensing)
Redundancy	Dual DC input (20-60 V) for power redundancy
Power Consumption	Maximum 72W input for efficient power management
Installation Features	Plug-and-play for automatic device detection and setup
Reliability	Tested for continuous operation in industrial and extreme environments
Security Features	Standard security through shielded connections and secure power inputs
Firmware Updates	Not applicable

[/specifications]

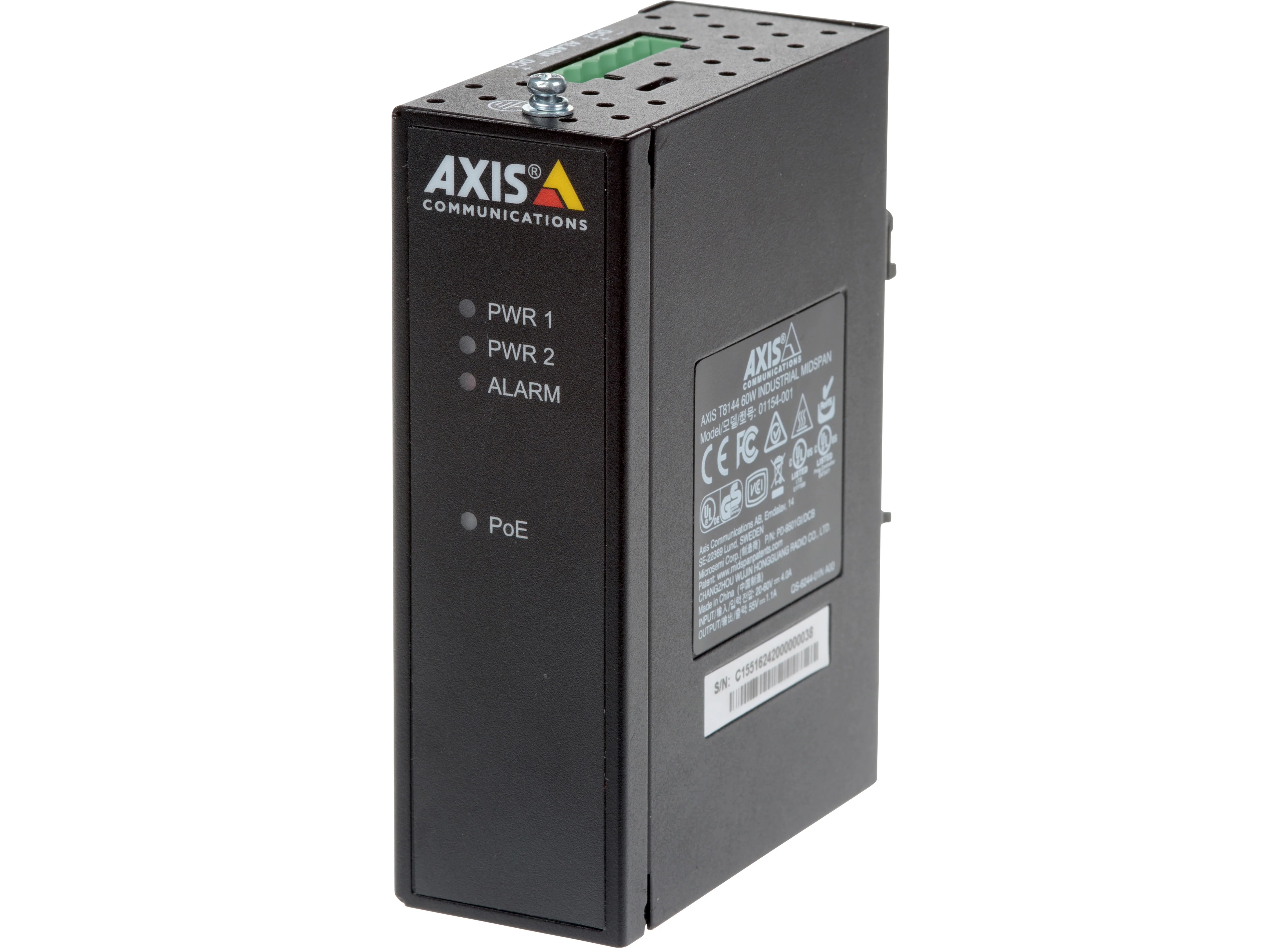

AXIS T8144 60 W Industrial Midspan

The AXIS T8144 60 W Industrial Midspan is an industrial-grade, 1-port midspan designed for powering network devices in harsh environments. With its robust construction, wide temperature range, and dual DC input for power redundancy, this midspan is ideal for industrial applications where reliable power delivery is essential. It supports Power over Ethernet (PoE) with up to 60 W of power, making it compatible with high-power Axis network devices. The AXIS T8144 is easy to install with plug-and-play functionality and can be mounted on walls or DIN rails for added versatility.

Key Features:

• 60 W Power over Ethernet: Provides up to 60 W of power for high-demand network devices.
• Wide Operating Temperature Range: Operates in extreme temperatures from -40 °C to 75 °C (-40 °F to 167 °F).
• Dual DC Input: Ensures power redundancy with support for 20-60 V DC input.
• Industrial-Grade Construction: Built to withstand harsh environments, ideal for industrial applications.
• Plug-and-Play Installation: Automatically detects PoE and High PoE-enabled devices for easy setup.

Technical Specifications:

• Power Output: 55 V DC, max 60 W
• Input Voltage: 20-60 V DC, max 72 W
• Data Rate: 10/100/1000 Mbps
• Connectors: Shielded RJ45, EIA 568A/568B, 6-pin DC power and alarm terminal connector
• Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), humidity max 95% RH (non-condensing)
• Dimensions: 78 x 36 x 111 mm (3.1 x 1.4 x 4.4 in)
• Weight: 315 g (0.7 lb)

For more information about the AXIS T8144 60 W Industrial Midspan, visit the Axis product page.
