[shortdesc]

• Supports distances beyond the standard 100 m (328 ft), 10/100 Mbps half/full duplex, IP66/IP67-rated enclosure ensures protection against harsh weather and challenging temperatures.

[/shortdesc]

[properties]

Product Name	AXIS T8129-E Outdoor PoE Extender
Description	The AXIS T8129-E Outdoor PoE Extender is designed to extend Ethernet and PoE connections beyond the 100 m (328 ft) limit, enabling long-distance network installations. The rugged IP66/IP67-rated housing ensures reliable operation in extreme outdoor conditions, while plug-and-play functionality allows for easy setup without an external power source.
Data Rate	10/100 Mbps, half/full duplex
Maximum Distance	Up to 200 m (656 ft) for IEEE 802.3at; Up to 300 m (984 ft) for IEEE 802.3af with 2 units
Connector Type	Shielded or unshielded RJ45, EIA 568A and 568B
Power Supply	Automatically forwards in-line PoE power (no external power required)
Dimensions	182 mm x 49.8 mm x 30.2 mm (7.17 in x 1.96 in x 1.19 in)
Weight	180 g (0.4 lbs)
Mounting Options	Compatible with wall or shelf mounts
Usage	Ideal for outdoor installations requiring extended PoE and Ethernet range
Durability	IP66/IP67-rated for dust and water protection, designed for outdoor environments

[/properties]

[specifications]

PoE Compatibility	Supports IEEE 802.3af, IEEE 802.3at, and High PoE 60W
Plug-and-Play Installation	Supports automatic configuration for link speed, duplex, and crossover
Certifications	CE, FCC, UL, RoHS compliant
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
EMC Compliance	Complies with EN 55032, EN 55024, and FCC Part 15 standards
Operating Temperature	-40°C to 60°C (-40°F to 140°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	0% to 85% (non-condensing)
Ingress Protection	IP66/IP67-rated for dust and water resistance
Power Consumption	Maximum 1.3W
Network Compatibility	Compatible with Axis network devices and standard Ethernet networks
Reliability	Tested for continuous operation in extreme outdoor conditions, including high humidity and temperature variations
Firmware Updates	Not applicable
Monitoring and Diagnostics	Real-time link monitoring through compatible network switches
Installation Requirements	Requires compatible wall or shelf mounting accessories (optional)
Security Features	Supports standard network security through PoE source

[/specifications]

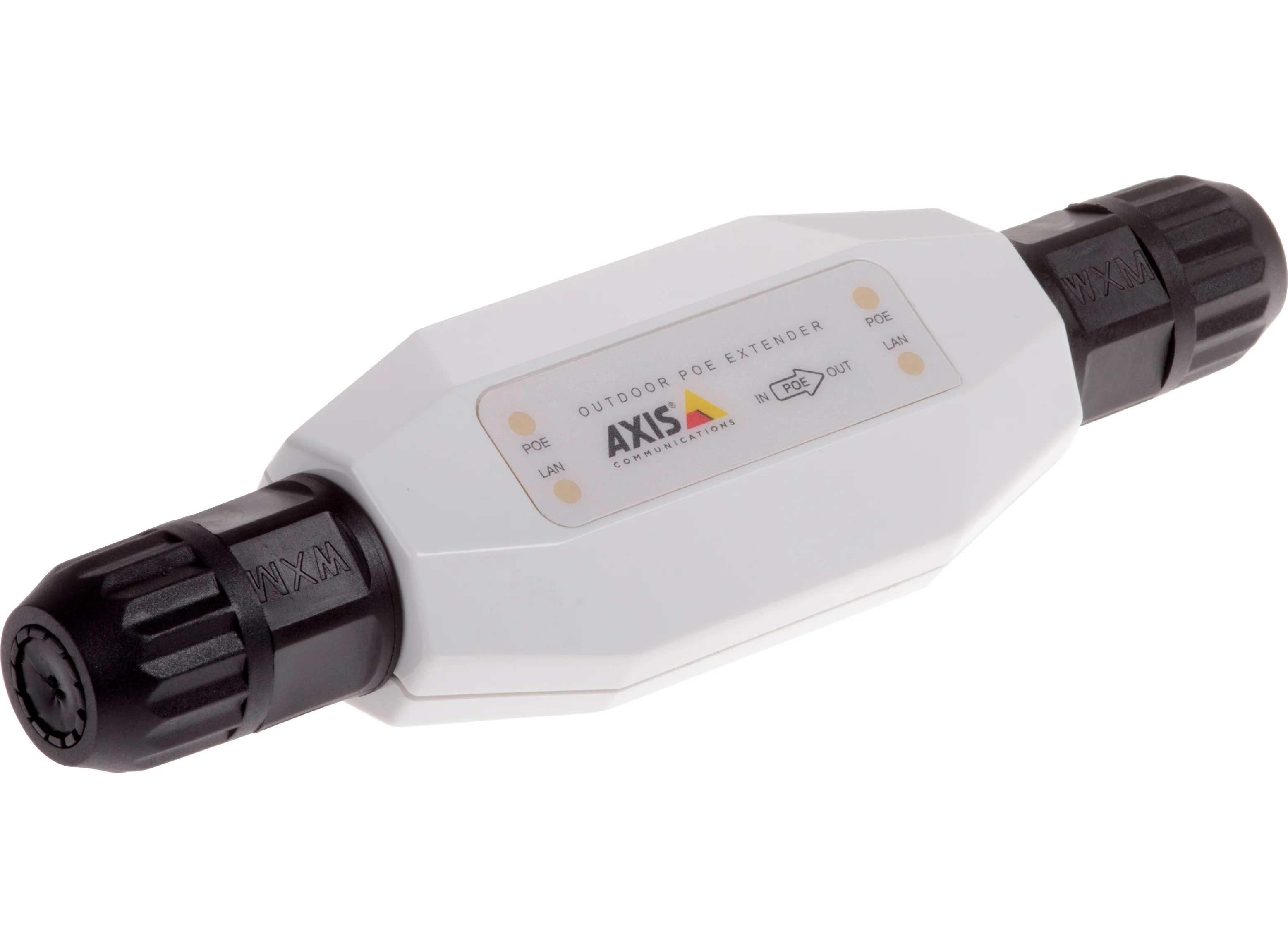

AXIS T8129-E Outdoor PoE Extender

The AXIS T8129-E Outdoor PoE Extender is a robust solution for extending network and Power over Ethernet (PoE) connections beyond the 100 m (328 ft) limit. This rugged, IP66/IP67-rated extender is designed for outdoor environments, offering reliable operation in extreme temperatures. With no additional power supply required, this extender allows you to connect Axis network devices over longer distances. It supports IEEE 802.3af, IEEE 802.3at, and high PoE 60 W, ensuring compatibility with a wide range of Axis devices. The plug-and-play installation makes it easy to deploy, and the full-rate network throughput is maintained over extended distances.

Key Features:

• Extends Ethernet and PoE Connections: Supports distances beyond the standard 100 m (328 ft) limit, enabling installations at greater distances.
• Rugged Outdoor Design: IP66/IP67-rated enclosure ensures protection against harsh weather and challenging temperatures.
• No Additional Power Supply: Automatically forwards in-line power to PoE and High PoE-enabled devices without the need for an external power source.
• Compatible with Multiple Standards: Supports IEEE 802.3af, IEEE 802.3at, and High PoE 60 W for flexibility in installation.
• Plug-and-Play Installation: Simple setup with automatic configuration of Ethernet ports for link speed, duplex, and crossover.

Technical Specifications:

• Data Rate: 10/100 Mbps half/full duplex
• Maximum Distance: Up to 200 m (656 ft) for IEEE 802.3at; Up to 300 m (984 ft) for IEEE 802.3af (using 2 units)
• Connectors: Shielded or unshielded RJ45, EIA 568A and 568B
• Power Consumption: Max 1.3 W
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Dimensions: 182.0 x 49.8 x 30.2 mm (7.17 x 1.96 x 1.19 in)
• Weight: 180 g (0.4 lbs)
• Protection Rating: IP66/IP67-rated for outdoor use

For more information about the AXIS T8129-E Outdoor PoE Extender, visit the Axis product page.
